Home LED Light Products LED Ceiling Light with Surface Mounted

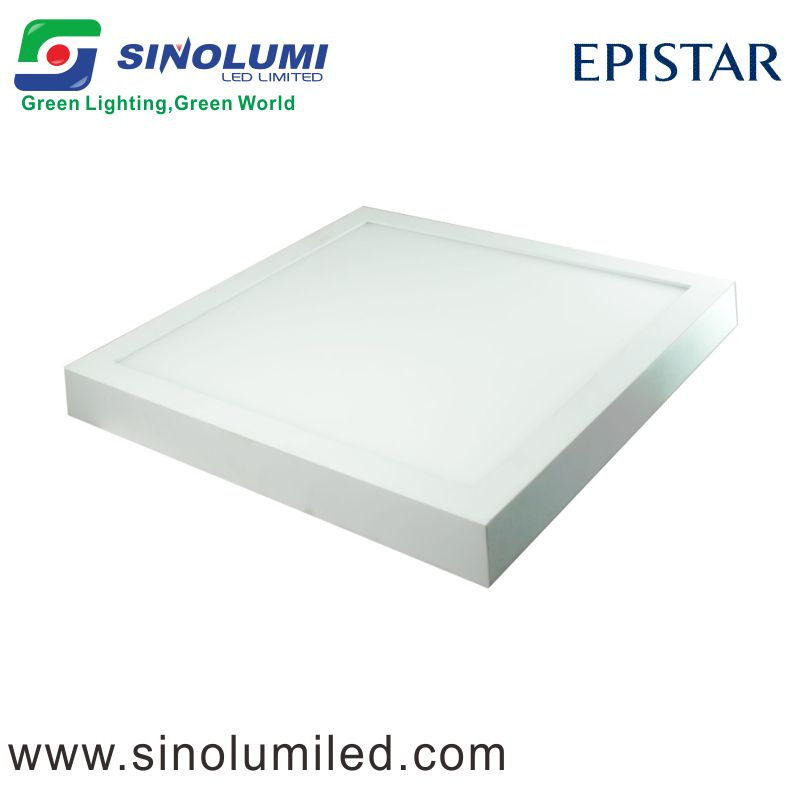

LED Ceiling Light with Surface Mounted

LED Ceiling Light with Surface Mounted
Price: US $ 27-29/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union

Description:
Sinolumi Surface Mounted LED Panel lights output high ambient light, which enable them to sufficiently replace existing general illumination lighting products. These LED panel lights use high output LEDs as light source. They are ideal to replace those ceiling downlight with recessed fixtures. Our surface mounted LED panel lights are ideal, energy efficient, aesthetic solution to fluorescents in any architectural application, including schools, hospitals and office spaces.
LED Panel Lights are a well-designed, lay-in ceiling fixtures. Our LED Panel Lights have an outstanding luminous efficacy achieved by ultra bright light source and high quality LGP. By mounting LED arrays at the side of the panel, it make the panel light emitting light more softly.
Our LED Panel down lights can save about 70% energy saving, with over 35,000 hrs long life span.

Features:
Special arrangement of LEDs together with superior light guide plate, which could make light beam looks bright, soft, even and comfortable;
The thermal design of LED panel light could decrease the luminous attenuation and prolong the life time.
Advanced designed constant current driver, which could ensure stable performance.
Start instant, no flicker, no sound, no glare.
CE, RoHS certificated.
80% energy saving which means 80% CO2 reduction
Easy installation, come with constant current driver.
High color rendering index
Good heat dissipation.
Drawings:


Order Information:

Model No.
LED TypeColorCCTVoltagePowerLumenBeam AngleCRI
SL-SMDF320WW96A4SMD2835Warm white2800~3200KAC100-240V21W1350lm120 degrees>80
SL-SMDF320NW96A4Natural white3800~4200K1431lm
SL-SMDF320W96A4white5800~6200K1500lm



Package Information:
Absolute Maximum Rating:

10Pcs/Carton
Box Size: mm
Carton Size: 430*355*345mm
N.W: 13.2Kg G.W:16.5Kg

Aluminum Heat Sink Temperature: 53°C
Operating Temperature: -20~+40 °C
Storage Temperature: -20~+50 °C
Equilibrium Temperature: 58 °C

Installation Drawing:


Applications:
    The surface mounted LED panel lights are widely used as general and decoration lighting, always equipped in offices, restaurants, conference rooms, factories, hotels, subway stations, commercial complexes, residential buildings, institution buildings, schools, colleges, hospitals, hallways and lobbies. If with color LEDs, our LED panel lights can be applied to dance halls, karaoke bars, clubs and other places of entertainment or for decorative purposes and so on.
Prod Model: SL-SMDF320NW96A4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Watt: 21W
Material: PMMA+Die-Casting Aluminum
Size: L320*W320*H35mm
Power Factor: >0.9
Lumen Output: 1200-1500lm
Certificated: CE, RoHS
Certification: VDE
Style: modern
Shape: Square
Shade Type: Acrylic
IP Rating: IP44
Install Style: Surface Mounted
Usage: Restaurant
Voltage: 220V
Beam Angle: 120 Degree
Lamp Body Material: Die-Casting Aluminum
Color Temperature: White/Warm White/Natural White
Sinolumi LED Limited, is a high-tech enterprise specializing in researching, developing and manufacturing LED spotlight, LED bulb, LED downlight, LED panel light, LED tube light, LED pool light, LED wall washer, LED pool light, LED flood light, and son on LED illuminations. With more than five years LED lighting manufacturing experience, we own more than four series products as LED home lightings, LED indoor lightings, LED decorative lightings and LED lamps. The products are extensively applied to as light source, indoor illumination and decoration in home, shop, exhibition, advertisement, hotel, disco and bar, outdoor decorations in park, square, bridge, building outline, city night view engineering.

We have an excellent and professional teamwork, modern production lines, advanced crafts & equipments, and introduced ISO9001: 2000quality Managing system, which provided enough guarantee on resource and quality for the rapid growing and strengthening. Now our products are well Sold in Europe, America, and Asia market with more extensive popularity in domestic market. Taking "concentrate on creating the first LED Illuminations brand in China"as goal, your joining and cooperation is welcome!
