Applications:
Commercial and exhibition locations
Home lighting
Hotel, conference room
Factory, office, house
Airport, metro station
Corridor and Passageway
School, hospital and other public places
Specification:
Power consumption: 15W
Beam angle: 180deg
Driver: Non-flicker driver
Light source: 5050, 120lm/w
Input voltage: AC100-277V, 50/60Hz
Power factor: >0.97
Total harmonic index: >20%
Lumen output: 1425lm
Operation temperature: -30º C~+50º C
Optical cover: Clear
CT: 3000K, 4000K, 5500K, 6500K
Rendering index: 80-90
Housing PC: Body weight 1 kg
IP rating: IP 44

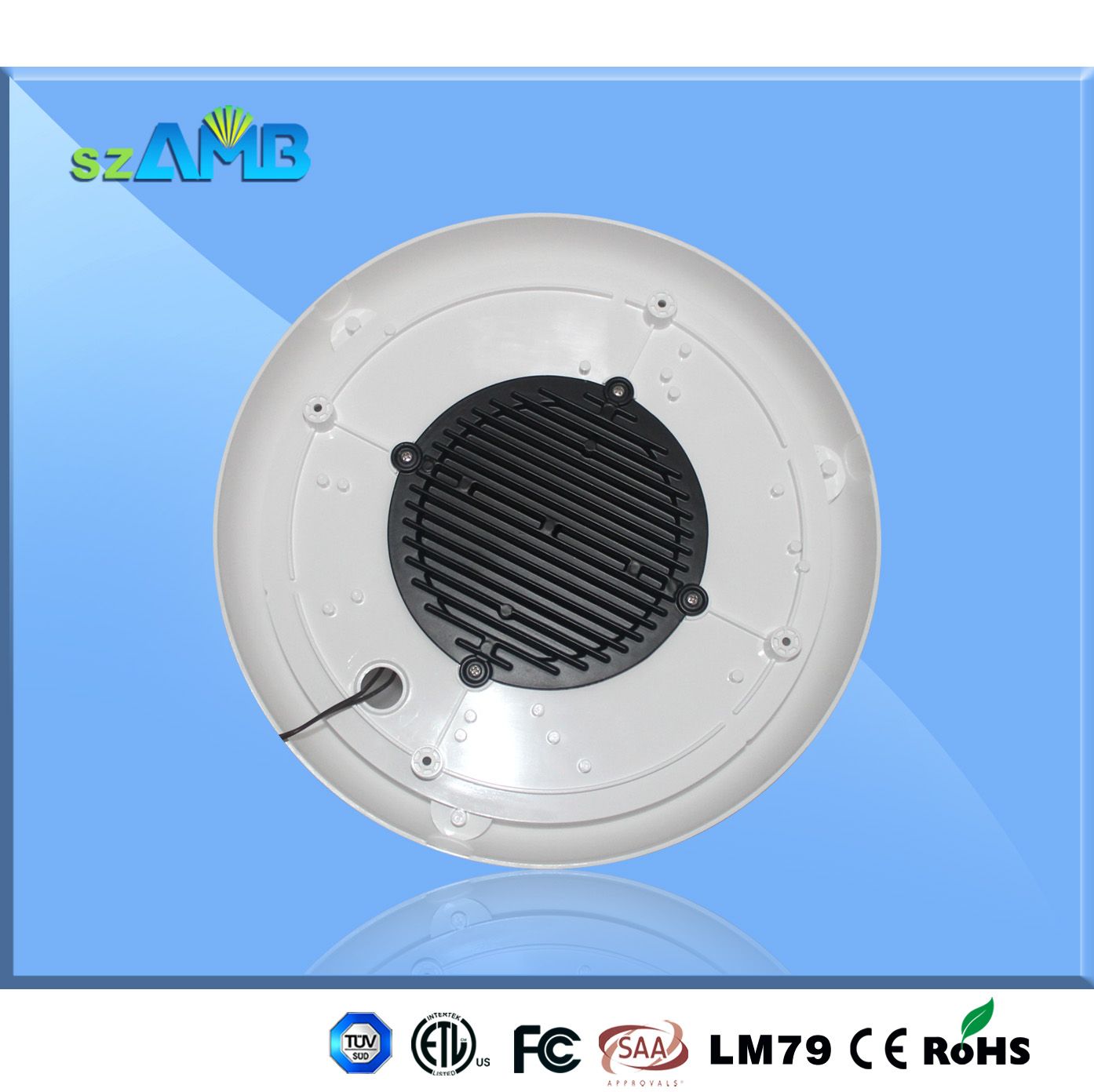

1. Fin shape heat sink structure, large heat dissipation area, good air convection effect, and protected by many patent technologies
2. No blinking design, flare even, good office and commercial lighting effect, won't cause eye fatigue
3. The external power supply with easy installation and convenient maintenance makes our products a wide application
4. Integrated high brightness LED light sources with high energy saving efficiency, making our products 60% energy saving than the traditional fluorescent lamps and 90% than incandescent bulbs
5. Solid light source, strong durability, and light source life can reach 50000 Hours
6. Environmental protection, no ultraviolet, infrared and thermal radiation emitted, and without mercury pollution
7. High color rendering index(CRI) with a wide correlated color temperature(CCT) range
8. High efficiency and quality constant current driver makes our products with stable quality, lower power consumption and more energy saving
9. Strong directional luminance ability makes it's easy to control the light and effective to improve the efficiency of the lighting system
10. Innovative modeling appearance with more technology elements and personal designs makes our products closer to the customers' needs and feelings
Performing Way:
A certain brightness(usual 380lux) can be set according to the practical application of the ceiling light. Lightning will be kept at 30% brightness when no people's activities, 15W full brightness performed with people's activities.
SZAMB is professional smart LED high bay, Unique LED floodlight and New panel style LED tube manufacturer located in Shenzen, China
In 2005, SZAMB was founded and started Researching and Developing LED tube, LED high bay and LED floodlight,
In 2006. SZAMB put 80% energy, money to improve LED high bay series, after 9 months SZAMB LED high bay are upgraded to the top level in the world, we are the top LED high bay manufacturers. SZAMB offer 5years warranty time for LED high bay
In 2007, SZAMB cooperated with Japan Netled. Co. Jp to R&D Networked lighting system, which Optimizing the benefits of LED, NETLED allows granular control of long lasting and low power LED lighting down to the tube level through a cloud(Internet) system, By controlling illumination only when, where and to the degree needed, energy saving are optimized and lighting environment is improved
In 2008, SZAMB National dimmer LED tube set a food in the marketing. This dimmable LED tube range is from 0.2%-100%. Which was warm welcome by Canada, USA, EU distributors. Because it saved lots of money and energy for hotels. Airport. Office and commercial buildings
In 2009, SZAMB cooperated with Sweden energy. YB to R&D panel style LED tube, We know this new design LED tube will change all normal LED tube' S future, our Idea is LOF design (LED On Fixture),
Plug and play LED fixture with male and female connector and IP65 waterproof class advantages, SZAMB panel style LED tube is welcomed by for all high-level hotel, market, commercial building and outdoor garden, road project, SZAMB Saved electronic fee. Fixture fee, wireless fee and replacement fee for our customers
In 2010, SZAMB cooperated with Canada Wilcox Electric company to R&D green housing LED lighting, after 6moths testing by Columbia University, Yale university, it approved SZAMB 200W LED fixture is the best solution for fruit and vegetables growing
In 2011 SZAMB cooperated with Holland Lioris LED driver company. From 2011, SZAMB 9-40W LED tube with 50000hours warranty time set a foot in marketing, we are the only one factory can guarantee 50000hours for full tube because of the exceeding 0.99PF LED driver, , We do the testing in Germany, get TUV, VDE and CE report in Germany located testing lab, this driver tech is most 50 years progressive than other branch
In 2012, SZAMB netled WiFi control l LED tube, LED high bay finished the testing. NETLED lighting in one' S Personal Area can be controlled by iPhone, iPad or other smartphone (Android)
SZAMB cooperated with Japan Yashima company to R&D AC100-260V COB LED. Which is dimmable AC COB LED, no need driver. With this new technology, we will make more and more mini LED high power lighting. Save more money for our customers
We set up on the firm belief of offering the high quality, unique design, automatic functions and fully warranted LED tube and LED high bay to our customer at the most competitive price. We have a strong engineer team which composed of 15 individuals with perfect designers.
Our management system is strictly conducted according to ISO9001-2008, TUV, SGS standard. We always stay ahead of this field because of our talented creativeness, like Unique designed structure and attractive appearance, stable quality proved by TUV/CE/RoHS/FCC, ETL and UL certification. We have a great production group to ensure our production capability, professional LED tube SMT, Soldering machine and 102 people on the production line to make sure 30, 0000PCS of LED tubes and 100000PCS LED high bay output every month. LED technology is high efficiency, cost effective, energy efficient and environmental friendly. Our goal is to keep on researching and developing super LED tube and LED high bay, to offer a bright world. We will let the world know that "SZAMB change your light life ".
