LED Cabinet Light/LED Ceiling light/led recessed down light
Keywords: LED ceiling light, led recessed down light, led downlight, led cabinet light, led light, light
Features:
1. LED cabinet light, square shape. Aluminium housing.
2. High power LED with EDISON/EPISTAR/CREE chips. No Dazzling.
3. Reliable external driver
4. Low electricity consumption.
5. Installation: Recessed cabinet light.
Application:
1. Home Lightng, office lighting, display case lighting
2. Under cabinet lighting
3. Art lighting
4. Boat lighting, accent lighting
Physical Details:

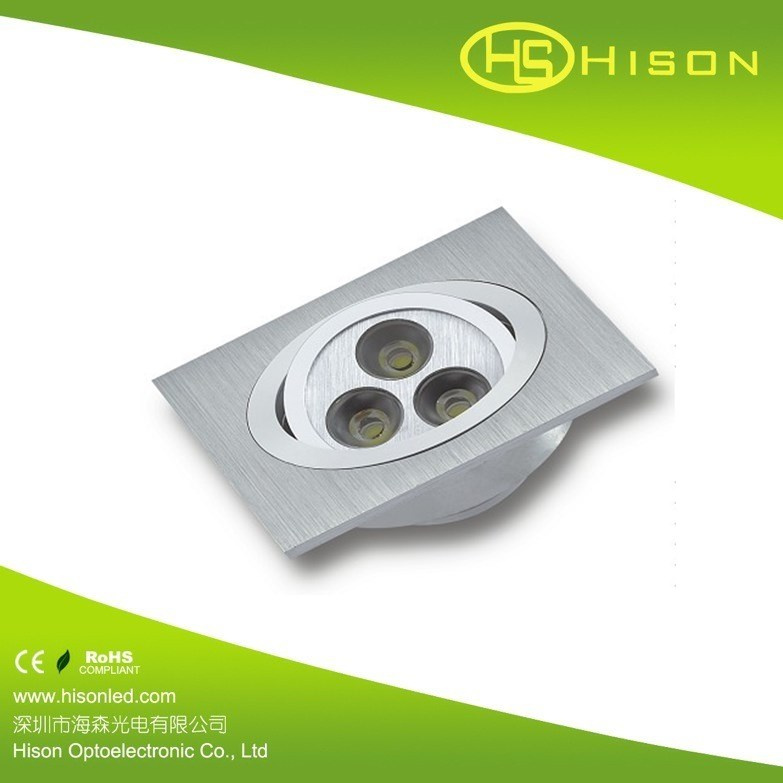

Product Name: LED Cabinet Light, Square Shape
LED QTY: 3PCS high Power LED
Materials: Cutting aluminium housing
Product Size: L94xW94xH40 mm
Inner package size: (L/W/H)120mm*120mm*55mm
Carton size: (L/W/H)600mm*220mm*120mm (200PCS)
Cutout size: Φ 80 mm
Net weight: ≤ 165g
IP Grade: IP44
Installation way: Recessed
Storage temperature: -30° C~80° C
Operating temperature: -20° C~50° C
Warranty: 3 years
Approvals: CE, RoHS
Optical Details:
Light source: 3PCS 1W high power, Epistar chip/ CREE Chips
Emitting color: Red, yellow, green, blue, white, warm white
Max. Lumens:
Per lamp75 lm/watt (red)
75 lm/watt (yellow)
85 lm/watt (green)
80 lm/watt (blue)
110 lm/watt (white)
95 lm/watt (warm white)
Luminosity: 60 Lux (2m distance)-white
Color temperature: Warm white 3000-3200K, daylight white 6000-6500K, Commercial white 4000-4500K
Beam angle: 30° /60°
CRI: 80~85 (white), 70~75 (warm white), 76~79(commercial white)
Lumen maintenance at 10, 000hrs: 95%
Average life time: 50, 000hrs
Electrical Details:
Input Voltage: AC 85-276V, 50Hz~60Hz
Operating Constant current: 350mA, 700mA (option) with external driver
Operating voltage: 9.6V-10.8V
Max. Power consumption: 3.5W
Operating drive: RDriver with constant current 350mA or 700mA
Compatible with common anode RGB controlle: RAvailable
Dimmable: Yes
Ordering Information:
Order NumberDescription
RG2305-F03-M: Warm white, LED downlight 3x1watt, 350mA
RG2305-F03-W: DaylightWhite, LED downlight 3x1watt, 350mA
RG2305-F03-C: Commercial white, LED downlight 3x1watt, 350mA
RG2305-F03-R: Red, LED downlight 3x1watt, 350mA
RG2305-F03-G: Green, LED downlight 3x1watt, 350mA
RG2305-F03-B: Blue, LED downlight 3x1watt, 350mA
RG2305-F03-Y: Yellow, LED downlight 3x1watt, 350mA
