Product Description

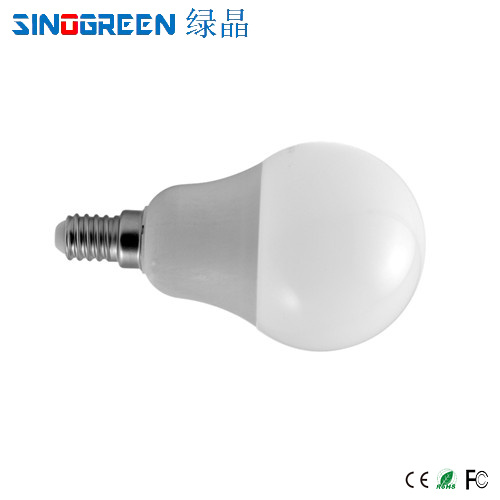

1). Product Name: Sensor LED bulb
2). Model No.:LJ-G60-E14-0601
3). Color: Cold White. Natural white. Warm white
4). Connector type: E14
5). Input Voltage: AC200-245V
6). Work Frequency: 50-60Hz
7) Power: 6.7W
8). Human Body Sensing Range: 5-8M
9). Human Sensor Range: 90 degrees maximum
10). Delay time: 10 seconds-2 minutes after leaving
11). Shell material: Aluminum+PC
12). Power factor: 0.45
13). Viewing Angle: Above200degree
14). Working temperature: -20---50degrees celsius
15) Operating lifespan: 50, 000hours
Sensor LED Bulb, below 10lux, it works 10% without sensing human motion; And it works 100% with sensing human motion, over 20lux, it doesn't work
Working principle
This product is designed to use special sensor to detect the change of the infrared spectrum that human body releases, switch on automatically when it detects the change. It stays working when people keeps moving. It will turn off 90% load automatically when people leave.
This product works automatically when the illumination outside is under 10LX, turns on 10% load; When people come, it turns on 100% load; When people leave, it turns off 90%load automatically, delaytime is 60s, 90s, 180s(optional), not interfered with by outside noise, etc. It turns off when the illumination outside is under 20LX.
Features and Functions
Power consumption of LED Bulbs is just 20% of the traditional incandescent lamp. The life span of LED Bulbs is over 10 times longer than the fluorescent lamp. Easy to install, use. Safe and stable. Intelligent, energy saving, environmental protection.
Die casting aluminum lamp body. To the maximum extent, successfully solving the heat sink trouble by air back-flow with increasing more fins. Cover of LED Bulbs is made of PC and nanometer coolant, light transmittance over 85%, light transmitting evenly.
Clients can choose power, lamp base based on the surroundings accordingly.
Note:
1. Not dimmable and can not be used in the dimmable lamps.
2. To ensure the power is off before the lamp replacement.
3. This product is for indoor use only.
4. Please consult the electrician for any question about the installation and using.
|
High quality LED bulb light |
|
Product No. |
LJ-G60-E14-0601 |
Size |
Φ60×107mm |
|
Output Power |
6.7W |
Ra |
≥80 |
|
Input Voltage |
AC200-245V |
LED Luminous Flux |
440~480LM |
|
Beam Angle |
220° |
Power Factor |
>0.45 |
|
Lifestime |
30000h(25°) |
Working Frequency |
50-60Hz |
|
Material |
Aluminum+PC |
|
Working Temperature |
-20 Degrees Centigrade -+50 Degrees Centigrade |
|
LED Color Temperature |
2700-6500K |
|
Light Base Spec |
E14 |
|
Certification |
CE/FCC/RoHS |
