JNT-B023Specifications
1.Can replace traditional moving head 230w 2 gobo wheels with 22gobos plus white
3.Warrany: 1 year sharpy,bright, low power

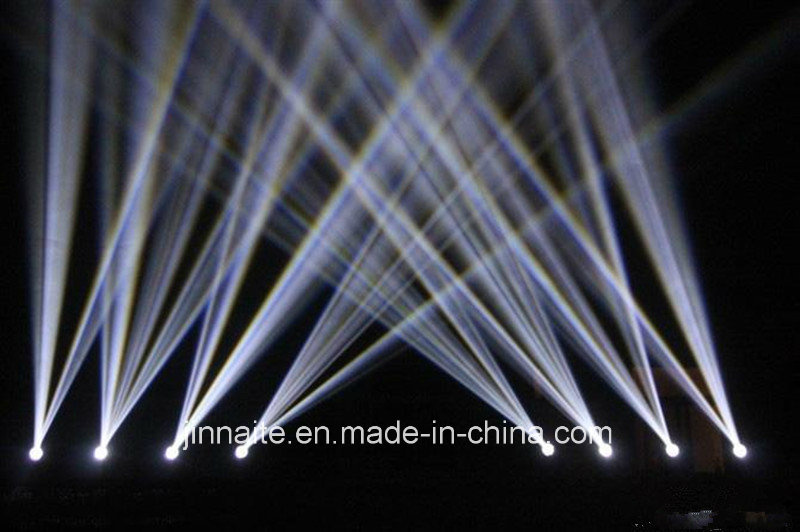

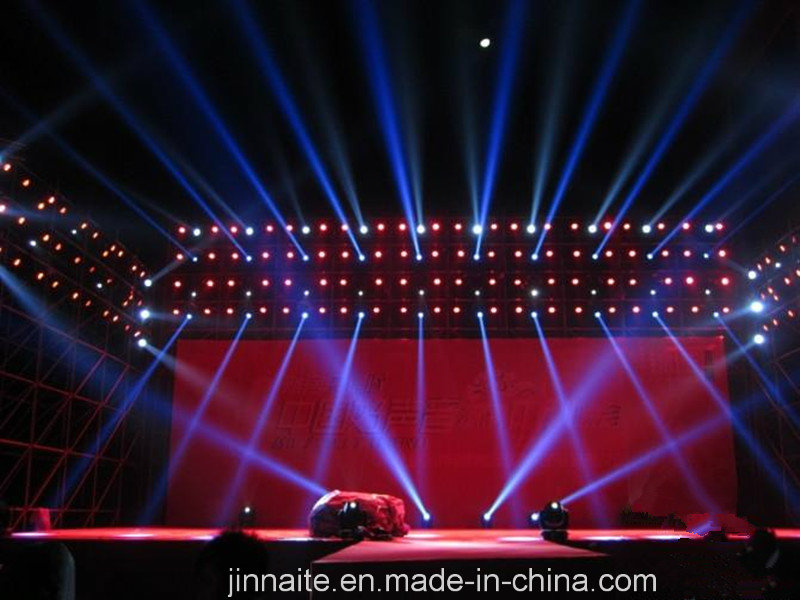

Apllication:
Theater, Studio, Arts performing, Auditorium, Lecture hall, Gymnasium and the other Large and medium-sized performing places.
CHANNEL | CHANNEL MODE |
16CH | 20CH |
1 | COLOUR WHEEL | COLOUR WHEEL |
2 | STOP/STROBE | STOP/STROBE |
3 | DIMMER | DIMMER |
4 | STATIC GOBO CHANGE | STATIC GOBO CHANGE |
5 | PRISM INSERTION | PRISM INSERTION |
6 | PRISM ROTATION | PRISM ROTATION |
7 | EFFECTS MOVEMENT | EFFECTS MOVEMENT |
8 | FROST | FROST |
9 | FOCUS | FOCUS |
10 | PAN | PAN |
11 | PAN FINE | PAN FINE |
12 | TILT | TILT |
13 | TILT FINE | TILT FINE |
14 | PAN/TILT SPEED | PAN/TILT MOVE BLACK |
15 | RESET | RESET |
16 | LAMP CONTROL | LAMP CONTROL |
17 | | PAN-TILT TIME |
18 | | COLOUR TIME |
19 | | DIMMER-PRISM-FROST TIME |
20 | | GOBO TIME |
CHANNEL | CHANNEL MODE |
16CH | 20CH |
1 | COLOUR WHEEL | COLOUR WHEEL |
2 | STOP/STROBE | STOP/STROBE |
3 | DIMMER | DIMMER |
4 | STATIC GOBO CHANGE | STATIC GOBO CHANGE |
5 | PRISM INSERTION | PRISM INSERTION |
6 | PRISM ROTATION | PRISM ROTATION |
7 | EFFECTS MOVEMENT | EFFECTS MOVEMENT |
8 | FROST | FROST |
9 | FOCUS | FOCUS |
10 | PAN | PAN |
11 | PAN FINE | PAN FINE |
12 | TILT | TILT |
13 | TILT FINE | TILT FINE |
14 | PAN/TILT SPEED | PAN/TILT MOVE BLACK |
15 | RESET | RESET |
16 | LAMP CONTROL | LAMP CONTROL |
17 | | PAN-TILT TIME |
18 | | COLOUR TIME |
19 | | DIMMER-PRISM-FROST TIME |
20 | | GOBO TIME |
Parameters
Power Supply | AC110-240V 50/60HZ |
Lamp Model | JNT-B023 |
Consumption Power | 400W |
Color Temperature(K) | 8500 |
Life Time(h) | 100000 |
Effect Wheel | 8-facet rotating prism |
Color Wheel | 2(22 colors+white) |
Gobo Wheel | 8 plug gobos + white, bi-directional rotation effect |
Gobo Ratation | Support |
Linear Dimmer | 0-100% |
Ballast | Electronic |
Zoom(Focus) | 0-3.8° |
Strobe Effect | 1-14 F.P.S |
Frost Effect | Support |
Pan/Tilt Motor Drive | 3 phase/13 steps |
Pan Rotation | 540°,16bit |
Tilt Rotation | 270°,16bit |
DMX signal connection | 3pin/5pin |
Dimension | 41x34x51cm |
N.W | 16.5 kg |
Display: | LCD Touch screen display |

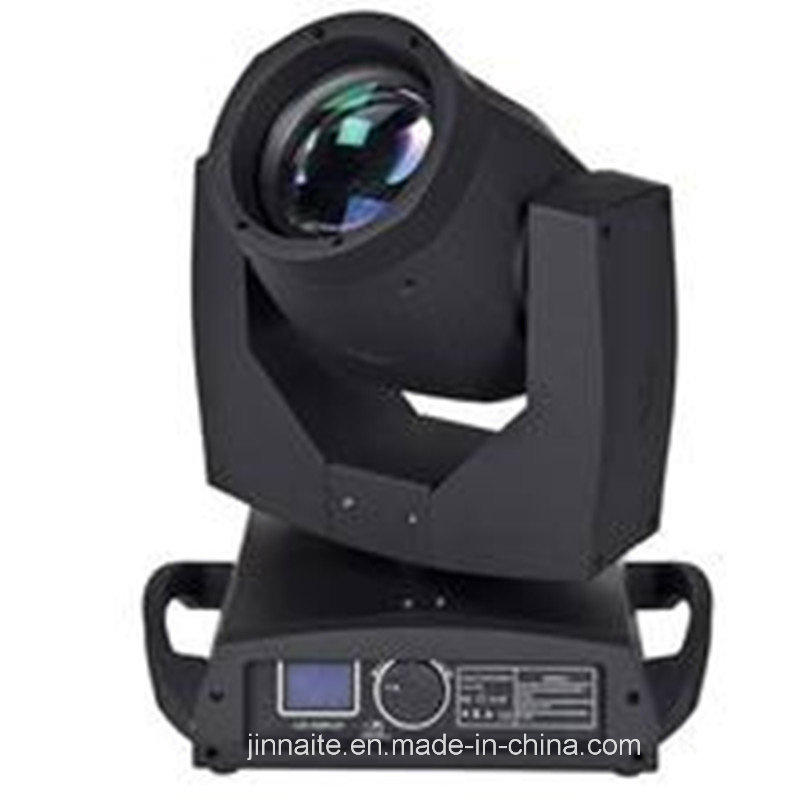

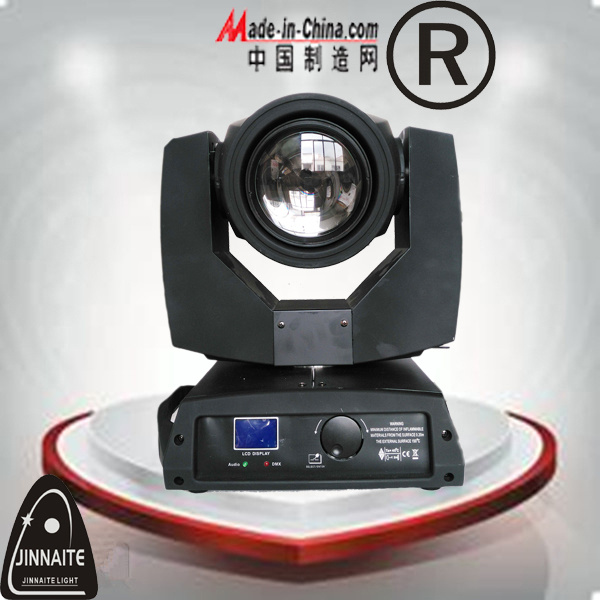

Product Name | 7R 230w moving head light spot |
Model Number | JNT-B023 |
Packaging Details | Carton or Flight case |
Warranty | one year |
Price term | EXW ,FOB |
OEM or ODM service | Accept |
Shipping Way | 1.by Express ( DHL, Fedex, Ups, EMS) |
2.by Air |
3.by Sea |
Sample time | 1-3 working days |
Order lead time | 5-20 days, ultimately subject to order quantity |
After-sell Service | 1.If there is a problem with the product, please describe it and send the |
picture or video to us for analysing |
2.Then we will guide you how to fix it and provide free accessories if need. |
