Product Description

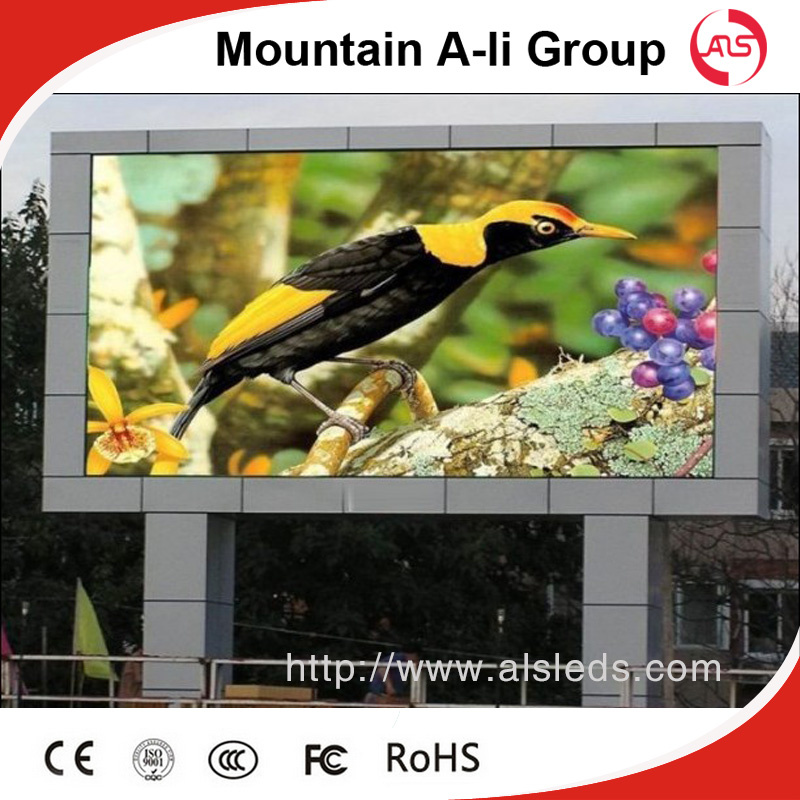

Outdoor Full Color LED Display (P16 advertising LED Display Screen)/LED sign/LED wall
1. full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)
2. P16 Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
6) Good heat emission capability
7) Environmental-friendly.
P16 Outdoor Full Color LED Display /LED screen/LED sign/LED video wall
The Technical Parameters of Outdoor p16 led screen
Item | Parameter |
---|
Product model | P16 full color module |
Module size | 256mm*256mm |
Pixel pitch | 16mm |
Pixel density | 3906dots/m2 |
Pixel configuration | 1R1G1B |
Module resolution | 16dots(W)*16dots(H) |
Maximum power consumption | 35W |
Module thickness | 3.3cm |
Module weight | 1kg |
Driving method | Constant current driving |
Scan mode | Static Scan |
Interface type | HUB40 |
Brightness | ≥7500cd/m2 |
The specifications of cabinet |
|
Cabinet size | 1024mm*1024mm |
Module quantity | 16pcs |
Power supply | 5V/40A 5V/60A |
Cabinet resolution | 64*64dots |
Optimal viewing distance | 10m~50m |
Optimal viewing angle | 160°(W) 120°(H) |
Temperature | Storage:-35ºC~+85ºC Working:-20ºC~+50ºC |
System operating humility | 10%-95% |
The specifications of power supply |
|
Operating voltage | AC220V±10% |
Average power consumption | 350W/H |
Maximum power consumption | ≤800W/ |
Current | ≤20mA(single LED) |
The specifications of control system |
Computer | Pentium4 or above |
Operating system | WIN98/2000/NT/XP |
Control model | Synchronization control |
The specifications of the main technical parameters |
|
Driving device | Constant current driving |
Refresh rate | ≥600Hz |
Grey scale | RGB each 256 grade, can display 16.7M colors) |
MTBF | ≥9000hours |
Power switch | Automatic switch |
Display mode | 800*600/1024*768/1280*900 |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
