Large P 10mm Full Color Outdoor Advertising LED Display for Plaza, 160 × 160mm CCC RoHS
| Price: |
US $ 846/Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |
Color LED Display Billboard , Stadium LED Display 300 - 1000Hz
Wide application & short ROI
High brightness
High fresh frequency
High contrast ratio :4000:1
Specifications:LED Specification
Part Number |
Teeho-P8 |
Resolution |
32(H)×16(V) |
Pixel Pitch |
10mm |

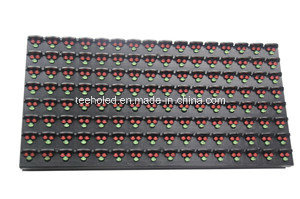

LED Configuration |
1R1G1B - DIP |
Pixel Density |
15,625 pixels/ m² |
Module Size |
320×160mm |
Cabinet Size | 960mm×960mm |
Driving IC |
MBI5041 |
Driving Method |
1/2 Scan, Constant Current |
Weight |
12KG/sq.m. |
Mechanical Ratings |
Hanging Weight Support |
2T |
Surface Flatness |
Gap<0.5mm |
Optical Ratings |
Brightness |
7500CD |
View Angle |
120°/60° |
Gray Scale |
8bits input, correction with 14bits |
Display COLOR |
16.7M |
Brightness Adjustment |
0~100% 10 level |
Power Supply |
Operation Power |
90~260V 50~60Hz |
Max. Power Consumption |
1100W/ m² |
Average Power Consumption |
350W/ m² |
Control System |
Control Mode |
Synchronous display with control PC by DVI |
Frame Update Frequency |
60~85Hz |
Screen Refresh Frequency |
300~1000Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental |
Operating Temperature |
-20°~+60° |
Operating Humidity |
10~95% RH |
Operating Life |
100,000hours |
MTBF |
10,000hours |
Protection Level |
IP65 |
Out of Control Rate |
<0.01% |
| Prod Model: |
outdoor full color standard led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chips: |
SMD3535 |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
ETL |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
1/2 Scan |
| Average Power Consumption: |
600W / m² |
| Pixel Density: |
10000 |
Shenzhen Teeho Optoelectronics Co. Ltd(short for Teeho Optoelectronics), found in 2009, is a high-tech private enterprise specialized in LED Screens manufacturing with a ¥ 11 million of registered capital and over 300 employees in Shenzhen. It has been dedicating itself to offering one-stop LED display solutions to its customers including R&D, prototyping, assembly, sales and technology support across the globe.
Teeho industrial park is located in Bao'an, Shenzhen, the most populous LED industrial area, with a cover of more than 10, 000 m2 and over 300 million of amount of sales per year, fully equipped with modern automatic assembly lines with the manufacturing capabilities of 8000 m2 per month
Teeho Optoelectronics spans a wide range of products covering: Indoor Full-Color LED Displays, Out Full-Color LED Dislays, LED Television Displays etc, applied to governmental institutions, corporate image projects, business ads, media activities, cultural and entertainmental places, stadiums, stations and airports etc.
Teeho Optoelectronics is focusing all efforts to technology-leading strategies of production by relying on the three-tier talent strategy, gathering high profile professional talents, which makes a foundation of new R&D of products and specially custom-made products. The R&D teams of Teeho electronics have been dedicating themselves to one-stop solutions, and have obtained tens of certifications of products and innovative patents. Moreover, they have outstandingly achieved in high-end indoor full color display solutions.
Teeho electronics has been promoting itself by advanced technology and scientific managements and has the following certifications: ISO9001: 2008 Quality System Certification, ISO1400: 2004 Environment System Certification, CCC, CE, FCC, RoHS etc. With high quality and perfect service, Teeho Optoelectronics has built lots of sales and service networks and its high-quality products has been exported into more than 80 countries and areas such as the United States, India, New Zealand. Japan, Thailand, Taiwan and Hongkong.
Teeho Optoelectronics Co., Ltd has been marching on under core values of Integrity, Pragmatic, Harmony, Creativity to guide our staff members and to devote itself to leading status in this industry, to ensure that our client will be fulfilled with the high-quality products and best service. With the horizontal developments in industrial chain and a variety of for-profit models, we vigorously promote the construction of brand culture, strive to become a world-class brand researched and developed independently, to become the most professional LED screens and one-stop solutions supplier, which makes a contribution to competing of national brands in globe markets.
