NVENTRONICS LED driver
High-end programmable EBD Series LED Driver, integrate dimming function and 6KV / 10KV surge protection. Provide excellent performance and lifespan.
PHILIPS LUXEON T luminous source
The KULON H-Series LED High Bay Lights are utilizing PHILIPS LUXEON T luminous source, providing excellent lumen output - up to 100 LPW, long-lasting stability and splendid sight.
LED module
Exquisite design with powerful thermal dissipation and IP67 waterproof performance.
Features & Advantages:
1. PHILIPS LUXEON TX luminous source, up to 135LM/W.
2. High end programmable EBD Series LED Driver, integrate dimming function an 6KV / 10KV surge protection
3. KULON 3rd GENERATION LED MODULE: Exquisite design with powerful thermal performance, as well as high reliable waterproof
4. Over then 100,000 hours operation life with 5 Years Warranty.
5. IK08&IP66 (testing reports available)
6. Innovative pole fitter design not only achieve the horizontal and vertical installation features, also has 0-15°
7. IES file or Dialux simulation for lighting solution is available.
Flexible installation:
Innovative pole fitter design not only achieve the horizontal and vertical installation features, also has 0-15°adjustable function for each installation direction

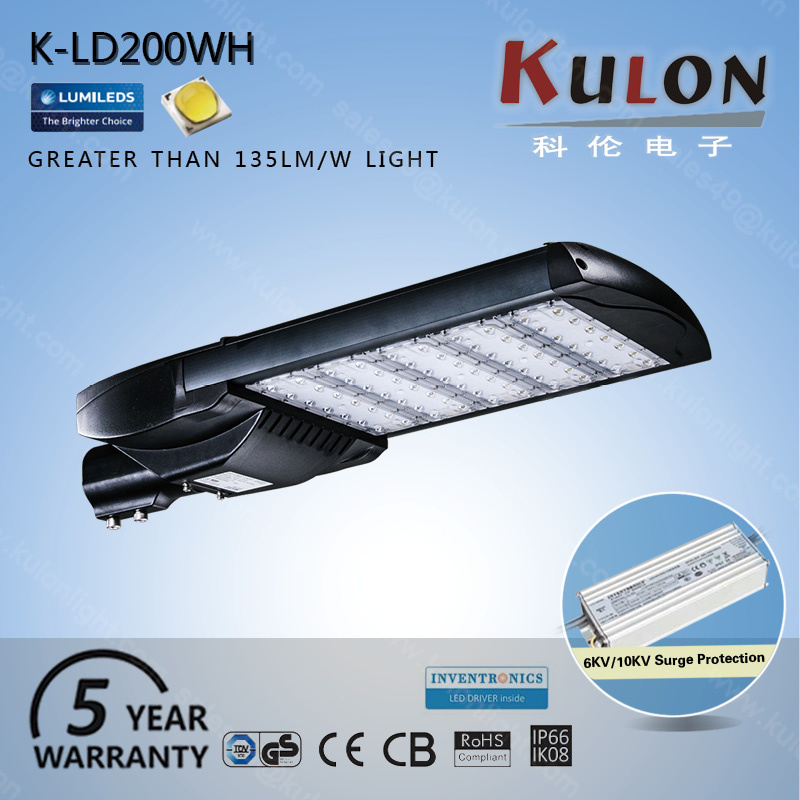

K-LD40WH Specification:
| Model Name | K-LD200WH |
| Nominal Wattage | 200w |
| Drive Current | 900 mA |
| Number of Modules | 5 |
| Input Voltage | 200-240V /277V AC 50/60Hz |
| Dimming | 0-5V, 0-10V PWM, Timer |
| Max. Current @ 208V | 1.19 A |
| Max. Current @ 240V | 1.03A |
| Max. Current @ 277V | 0.89 A |
| Operating Temperature | -40 ºC to +50 ºC |
| Power Factor (PF) | > 0.95 |
| Total Harmonic Distortion (THD) | < 20% |
| Lumen Output (+/- 5%) | 22000 lm |
| Optic | 1M, 2M, 3M, 5S |
| CRI | Minimum 70 CRI |
| CCT | 3000k 4000k 5000k 5700k |
| Ratings | IP66, IK08 |
| Heat Radiator | Anodized Aluminum |
| Lens | PC (UV resistance) |
| Packaging Type | 1 unit /ctn. |
| Fixture Info. | 723 x316 x136 mm, 9.0 kg |
| Packing Info | 780 x370 x200 mm, 10.6 kg |
More details
Professional lens design, suitable for various applications.
Luminaire body is fixed by two M8x16 fortified stainless steel screws.
Rational clamshell design for wiring compartment, sturdy and durable.
Use stainless steel screws for whole luminaire, no corrosion worries.
Use Germany WAGO connectors for UL standard connection. Internal wiring, safe, convenient & fast.
Innovative pluggable connector, clean & efficient.
UL standard connection.
Full aluminum made, sufficient heat dissipation area.
Application:
KULON H series street light were designed specifically to replace conventional lighting in a wide variety of outdoor industrial applications; Their low profile light weight design and versatile mounting options make it ideal for many applications such as main roads, parking lots, outdoor warehouses, square, wall mountings and general LED lighting.
our service:
Prompt lead time, professional Dialux lighting simulation, perfect after-sales service are our priority,
hope to be your reliable led lighting solution partner.
1. What we do is making you satisfied. Our goal is providing you with right products and come up with correct solutions.
2. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
Decision for the shipping terms will be made according to your requirements.
3. Delivery time is guaranteed. 2-3 working days for sample order,5-7 working days for regular order(quantity< 100pcs),10-15 working days for mass order(101-500pcs), order >500pcs pls contact us to confirm.
4. Price is negotiable if you have large quantity demand.
5. Package is customized.Usually we use films,foam boxes,cartons and wooden pallet.
Warranty details:
Hangzhou Kulon Electronics Co., Ltd. ("Kulon") warrants this kulon branded hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase.
Kulon provides free repair or replacement within warranty period. KULON shall charge against defeats by abnormal storage, useage, connection or change the structure or any commponents of the product.
(Professional Warranty file with stamp and signature will be sent to you if necessary)
Company Information:
Founded in 2005, Hangzhou Kulon Electronics Co., Ltd is a hitech and private enterprise devoted to R&D, producing and selling of high power LED outdoor / indoor lights, solar LED lighting systerm and more energy saving products and so on.
Adhering to the management concept of "honest cooperation, pragmatic innovation", we regard clients' satisfaction as our top task,
product quality as the basis of development, and cost-saving as our competitive advantage.
FAQ:
How to choose a right light for project?
1. According to Average or minum lux demands on floor to choose the right watt product
2. Depends on project drawing to make a Dialux simulation to confirm the beam angle and light installation layout
3. Choose the right CCT(3000/4000/5000 or 5700K) for different application place.
4. Confirm the most suitable install method. (pendant mounting, direct mounting or suspended mounting available)
How to achieve intelligent dimming function ?
Our led driver use Mean Well HLG type or Inventronics smart could support all kinds of dimmer:
0-10VDC, Resistance, PWM, Time dimming or DALI
You just need to connect a dimmer to achieve this function.
How to achieve motion sense function?
We could build in a smart motion sensor to ahieve this function such as:
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step
dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to
install and cost-effective
