LED High Bay / Floodlight & Sports Light
FCC UL DLC (Multi-listing for Accredited Distributors)Brand: NJZ
Manufacturer: Nanjing JingZe Lighting Technology Co.,Ltd
Delivery Service :FOB ShanghaiInventory available in Atlanta and Los Angeles,USA
Delivery of regular products arranges within 7 days.
Payment Service :Pay with US check, no wire transfer worries.
30-day Net term available Product Features: Replace 750W HID (HPS/Metal halide) or T5/T8 fluorescent fixtures
+ IP67
+ The whole light efficiency up to 100 Lm/W
+ Operating temp. range from -40 ºC to +50 ºC
+ Dimmable Driver
+ 50,000 hours @ L80 (80% lumen maintenance)

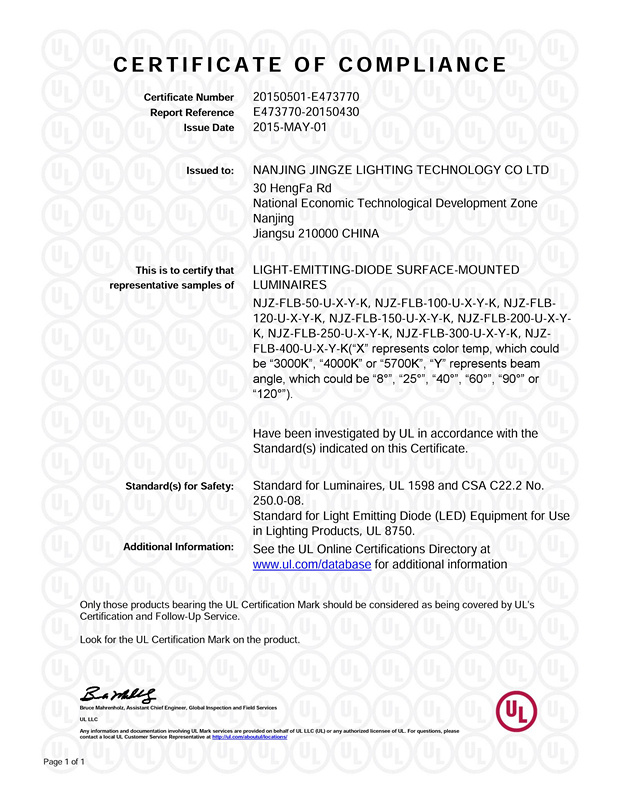

+ UL/CUL( Wet Locations ), DLC Listed ( Multi-listing service for accredited buyers )
Application:

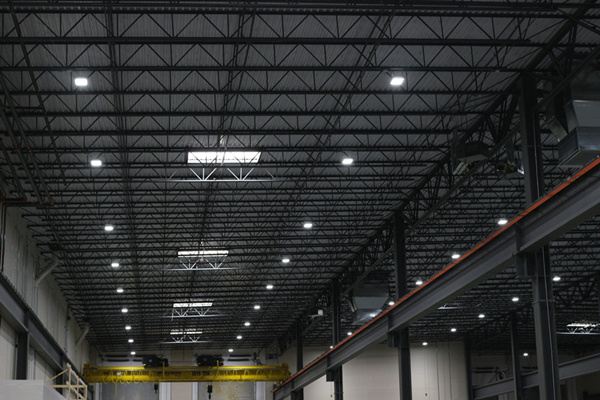

1. High Bay Lighting
Warehouse, Cold storage, Industrial, Tunnels, Gymnasiums, Garage
2. Area&Flood lighting
Architechtural, building security and spotlighting;
Parking lots, site, residential areas and pedestrian walkway lighting;
3. Sign lighting
Recreational, facade (ground,structure or wall mounted ) lighting
Case Studies

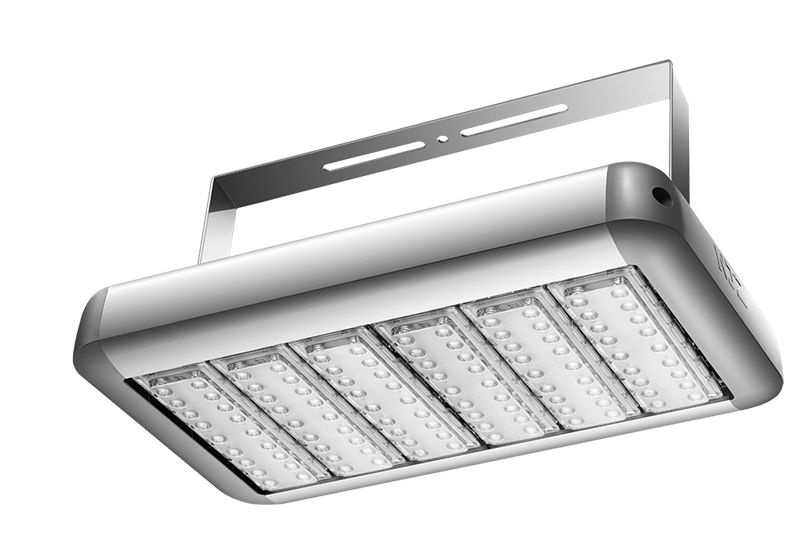

Technical Parameter:Model | NJZ-FLB-300PI |
LED Chip Brand | Philips-Lumileds LUXEON® T |
Driver Brand | Meanwell |
Norminal Wattage | 300W |
LED Module Usage | 6 Units |
Input Voltage | AC100V-277V(50/60Hz) |
Power Supply Efficiency | ≥91% |
Power Factor | >0.95 |
Luminous Efficacy | >100Lm/W |
Luminous Flux (Lumen Output) | 30000Lm ( Tolerance +/- 5% ) |
Color Rendering Index | Ra>70 |
Color Temperature | 4000K / 5700K |
Light Distribution | Using secondary optical lens for light distribution |
Beam Angle | 60°/120° (8°/25° /40° optional ) |
Work Condition | Operation Temperature: -40ºC ~ +50ºC Humidity: 10%~90% RH |
Optimal Operating Temperature | 25ºC |
Housing Material | Anodized Die Cast Aluminum |
IP Rating | IP67 |
Protection Level Against Electric Shock | Class I |
Mounting Method | Ceiling,Pendant,Hanging chain |
Operation Lifespan | > 50000 Life Hours |
Warranty | 5 years warranty |
Nanjing JingZe Lighting Technology Co., Ltd., specialized in LED lighting, We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customer needs" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
