IP65 Waterproof Round SMD Epistar Chip 12W LED Down Light
| Price: |
US $ 9.7/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
T/T |
Product name : IP65 waterproof round SMD Epistar chip 12W LED Down light
MeiKe Lighting LED Down light are very Popular. We specilized in LED Down Light LED spot light , LED ceiling light LED panel light for almost 6 years . We pay attention to the driver systerm , led chip and heatsink problem , We make product maybe not the lowest price in the world , but reasonable price based on this good quality product .

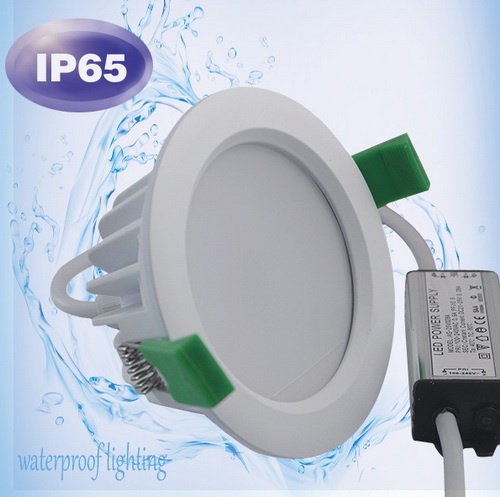

IP65 waterproof round SMD Epistar chip 12W LED Down light
1) Specification:
| Waterproof LED downlight cut out 75mm |
| 7-10W | Item | MK-DLW-5W | MK-DLW-7W | MK-DLW-10W |
| size(OD × H) | 90× 45mm |
| Cutout | 75mm |
| Power | 5W | 7W | 10w |
| Luminous Flux | 400lm(6000k) | 550lm(6000k) | 780lm(6000k) |
| IP65 LED downlight cut out 92mm |
| 12-18W | Item | MK-DLW-12W | MK-DLW-15W | MK-DLW-18W |
| size(OD × H) | 108×50mm |
| Cutout | 92mm |
| Power | 12w | 15w | 18w |
| Luminous Flux | 900lm(6000k) | 1300lm(6000k) | 1450lm(6000k) |
| More Specification |
| LED chip brand | Samsung / Sanan / Epistar option |
| LED chip type | SMD5630 / EMC 3020 |
| Input | AC85-265V 50-60Hz |
| Power Type | Isolate constant current power supply |
| PF | above 0.95 |
| Operating Temperature | below 20 centigrade to 40 centigrade |
| CCT | 2800 to 6500K |
| CRI | Ra above 80 |
| Cover | PC frosted cover |
| Finish color | Silvery, Milk white |
| IP range | IP65 |
| Control system | Leading /tralling edge, sensor, dali.etc |

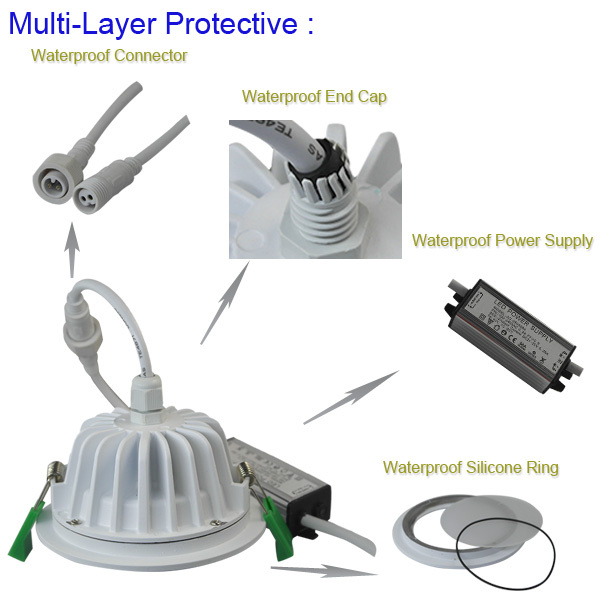

2) Key Feature:

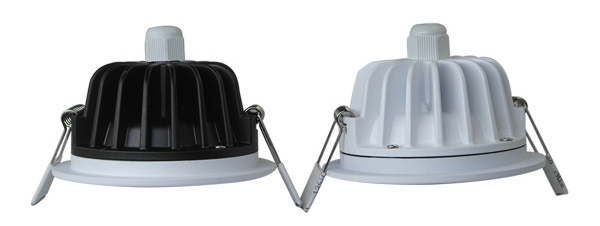

LED downlight fitting finished color option:
3) Dimension and installation of LED downlight waterproof:
| Dimensions for LED waterproof downlight 5w -18w |
| Wattage | Diameter (OD) | C=Cutout | Height |
| 5-10w | OD95mm | 75-85mm | H45mm |
| 12-18w | OD108mm | 92-100mm | H50mm |
4) Package:
| Package Information |
| Wattage | Box size | N.W | Carton size | G.W |
| 7-10w | 10×10×7.5cm/pcs | 0.4kg | 63×31×27cm/48pcs | 14.9kg |
| 12-18w | 12×12×9.5cm/pcs | 0.6kg | 63×31×27cm/20pcs | 13.5kg |
1. High Quality product in competitive price .
2. Our product is coming with CE and RoHS cert.
3. Professional worker who is making good craft and good product .
4. 6 years oversea sale experience .
5. New product every month.
6. ODM&OEM Services.
7. Keep your money safety and grown your business rapidly .
Because we only put 3 pictures here , if you want to know more , please contact me for details !
Price based on quantity and based on choosing which material ,different chip , cover , driver price is not the same .We can discuss about this .Price we gave is competitive !
If I am not on line , please send email . I will response you asap. Thanks for your reading !
| Prod Model: |
MK-DLW-12W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4" |
| Light Source: |
LED |
| Material: |
Aluminum |
| Source Number: |
Single Plug |
| Installation: |
Embedded |
| Lamp Installation: |
Plug Lamp |
| Application: |
Engineering |
