| Price: | US $ 10-20/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Paypal,Western Union |
| 50W LED Floodlight Main Technical Parameters | |||
| Item No.: | RB-FLL-50WS | ||
| Input Voltage: | AC 85-265V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Power Factor: | >0.92 | ||
| Power Efficiency: | >90% | ||
| LED Power | 50W | ||
| LED QTY: | 100pcs 5630 smd | ||
| LED Working Voltage: | DC 30~36V | ||
| System Consumption: | 53W | ||
| LED Luminous Flux | Warm White | 4170LM | |
| Pure White | 4320LM | ||
| Cool White | 4360LM | ||
| Center Illuminance | 4 Meter | 117 lux | |
| 4.5 Meter | 93 lux | ||
| 6 Meter | 52 lux | ||
| Viewing Angle: | 120 degree | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Nature White | 4000K~4500K | ||
| Pure White | 6000K~6500K | ||
| Color Rendering Index | Ra>78 | ||
| Light Distribution: | LED points visible | ||
| Light Design: | LED+ | ||
| LED Junction Temperature: | ≤115ºC | ||
| Working Temperature: | -40ºC~50ºC | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0m three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| Size: | 210*180*65mm | ||
| Net Weight: | 1.7KG | ||

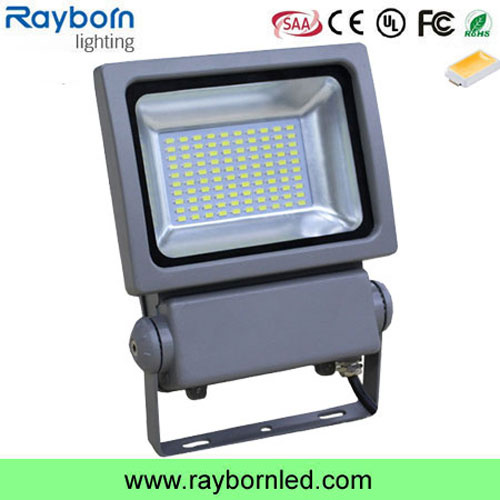

50W LED SMD flood light front side images :

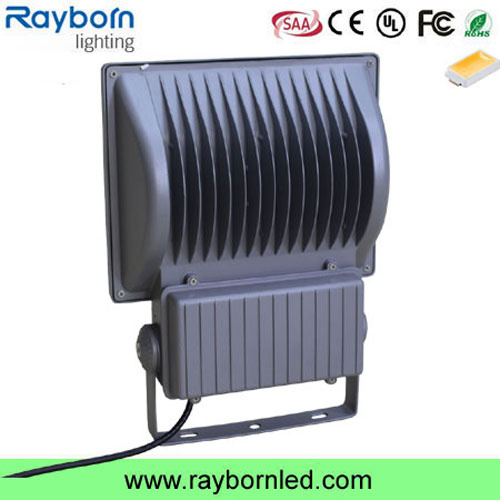

50W LED SMD flood light back side images:

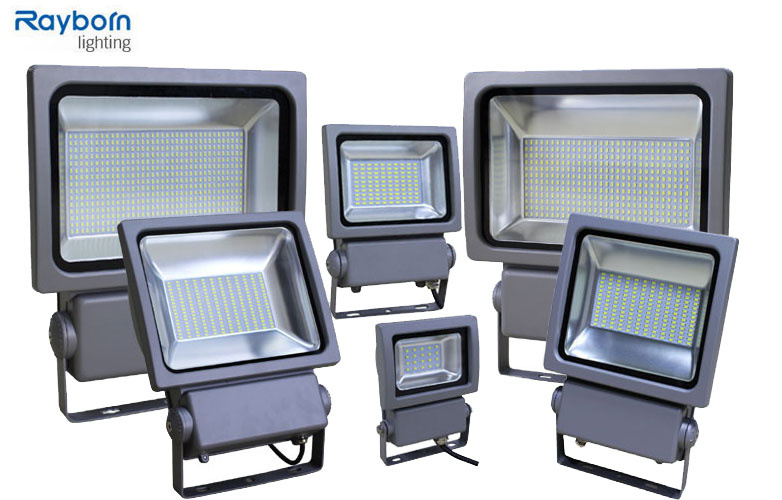

More wattage to choose: 20W-250W SMD LED flood light can be made
SMD led flood light Features:
SMD LED flood lights are adopted optical light distribution,which is no glare,no light pollution,highly directional light and more even luminous beam.
1, High bright imported Epistar Chip SMD5730 as light source:
SMD led flood lights arewith good heat dissipation,low light depreciation,pure light color,no double-shadow High intensity,high resistance of shock or vibration etc.
2, Universally wide range voltage(85-265V):
SMD led flood light advanced constant-current driver be used which can start quickly,be high safety and reliability.
3, Unique heat sink design:
SMD led flood light perfectly combine with power box,effectively transmit the heat,thereby lowering the body's temperature,ensure the life of LED chip and power driver.
4, Surface treatment:
SMD led flood light static sprayed leading to better heat-resisting,high weather resistance,corrosion resistant,water proof and dust proof.
5, All the leakage screw material is 304 stainless steel, and frame is hex screws.
6, waterproof and dust proof:
SMD led floodlight Sealed by reliable silicone rubber, can bear heat above 150 °C,no aging, good sealing of lamp, waterproof and dust proof.
7, Energy saving:
SMD led floodlight use high power LED and it is equipped with imported high efficient power,save more than 70% energy compare with sodium lamp.
SMD LED flood light Primary Competitive Advantages:
1. Attractive design;
2. Competitive price;
3. Epistar Chip SMD5730,0.5w/chip,very bright;
4.Meanwell drivers;
5. IP65 waterproof;
6. 3 Years warranty;
7. Aluminum radiator,very good heat dissipation;
8. The color of the lamp shell: Black and silver is available;
9. 20-300W are available.
Dimensions of 50W SMD LED flood light: 210*180*65 mm
SMD LED flood lights will be ageing tested before shipping,so that we can ensure the quality.
SMD LED flood lights Applications :
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
We have CE,RoHS,SAA,UL certifications and so on.So you can rest assured to use our products.
Our individual package maximize protecting the lights from transfer damage.Our mode of transportation can be shipping,by air or other way you like.You can choose the express company by yourself.
Rayborn Good Service :
1.Your inquirey related to our products or price will be replied within 24 hours.
2.All your inquireies will be well explained by our experienced staff.
3.OEM&ODM,also provide customized service.
4.Distributor ship is available for your unique design and some our current models.
5.We will keep secret for customer sale area,design ideas and all other private information.
We are a professional LED manufacturer who specialize in producing LED high bay lights,LED flood lights,LED street lights,LED tube lights,LED bulbs,LED downlights,LED ceiling lights,LED spotlights,LED strip lights,LED panel lights and so on for many years, with mature technology and preferential price.We also have our own factory and a seasoned engineering team.Welcome to visit our factory.Quality is our culture,we only sell high quality products.For good quality and best price,we are your best choice.
Q1: What is the warranty of our led flood lights?
A: We offer three years guarantee for our LED flood lights,and we will offer you based on your requirements.
Q2: What color temperature you can choose?
A: We offer LED flood lights in warm white, natural white,pure white and cool white and the range is as follow:(These are our conventional color ranges,we also can offer you other range that you need)
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-7000K
Q3: Do our led flood lights can be used in your country?
A: Yes, Our LED flood light has wide input voltage AC85-265V, and it can be customized too.
Q4: How do you help me to save freight cost?
A: We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.
Q5: Do you have any MOQ limited?
A: We don't have MOQ,even only one piece LED flood light you can buy.
Q6: What's the lead time?
A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.
Q7:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.
Q8: Do you accept Paypal or Western Union for sample order?
A: Yes, we accept Paypal and Western Union as payment term.T/T,LC are also accepted.
Pls don't feel hesitate to contact us if our products meet your requirements.Pls give me one enquiry,I will give you ten surprises.Believe me,I am sincere Charmaine.
| Prod Model: | RB-FLL-50WS |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: | 7-10 Days |
| Power Factor: | >0.92 |
| Power Efficiency: | >90% |
| Lumen Efficiency: | >90 Lm/W |
| Light Distribution: | LED Points Visible |
| Warranty: | 3 Years |
| LED Qty: | 100PCS 5630 SMD |
| Lifespan: | 50000 Hours |
| View Angle: | 120 Degree |
| CRI: | Ra>78 |
| Lamp Body Material: | Aluminum |
| Projection Distance: | 25-35m |
| Application: | Ourdoor Garden |
| IP Rating: | IP65 |
| Certification: | UL |
| LED Chips Brand: | Epistar |
| Color Temperature: | Warm White, Nature White, Pure White, Cool White |
| Power: | 50W |
| Operating Voltage: | DC 30~36V |
| Input Voltage: | AC 85-265V, 50Hz~60Hz |
