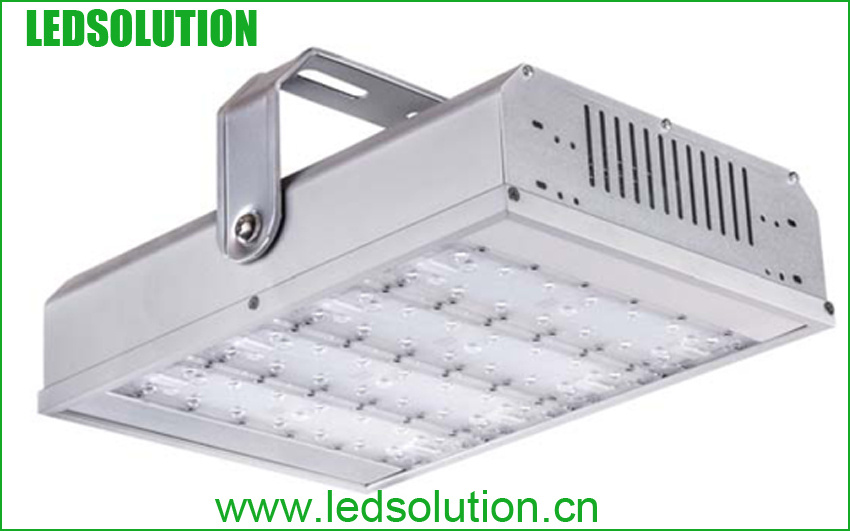

IP65 Outdoor Waterproof Meanwell 160W LED Tunnel Light with 5 Years Warranty

Name: IP65 Outdoor Waterproof Meanwell 160W LED Tunnel Light with 5 Years Warranty
Brand: yourledlight.com
SKU: 766028455
Availability: InStock
Rating: 4.8 (129 reviews)

Price:	US $ 185-207/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Shenzhen LEDSolution Technology Co., Ltd.

Showroom Product Company Profile

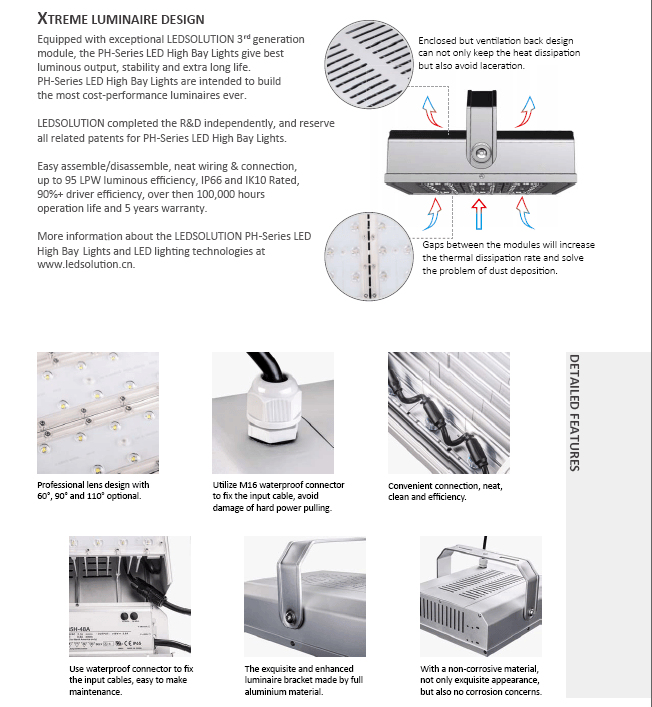

IP65 outdoor waterproof Meanwell 160W LED Tunnel Light with 5 Years Warranty

Overview:

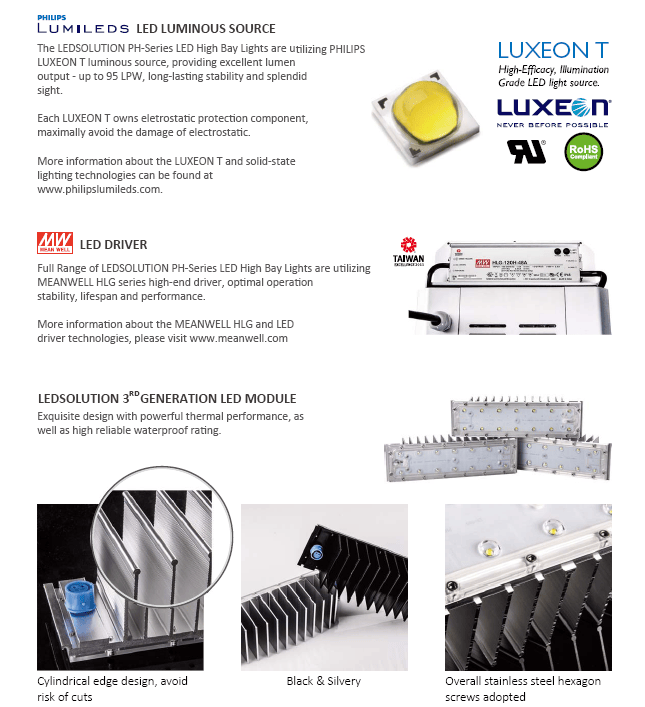

1. Professional encapsulation with PHILIPS LUEON® LED chip makes the LED light source.
2. Obtaining excellent protection of optical attenuation and heat conduction ratio.
3. Utilizing World's leading MEAN WELL® LED Driver, Great luminaire stability, lifespan & Optimal Performance Status.
4. Use of the good thermal grease combining MCPCB and aluminium radiator closely,
5. Keeps every LEDs obtaining optimal effects Of heat dissipation.
6. Light attenuation of LEDs under safe control With adequate heat sinking area and Excellent air flow design.
7. Designed the rectangular light beam from exquisite lens, effectively control the horizontal and vertical Beam angle. Mirror surface processed reflector could collect the invalid light and reflect them into Effective.
8. The design of traditional concept coupled LEDs technical, makes it more easily for accept by people For general flood lighting replacement.

Feathers:
Energy savings, high efficiency Easy to maintenance, with big upgrade spaces and High brightness LED.

Application:
Widely used in railways, subways, tunnels and other underground channels lighting, workshop, warehouses, stadiums, construction sites and other large-area floodlighting, can also be used in the urban landscape, billboards, building facades surface night lighting.

LS-TL160P (250W HID Replacement) Brighter

Product Benefits

Product Benefits

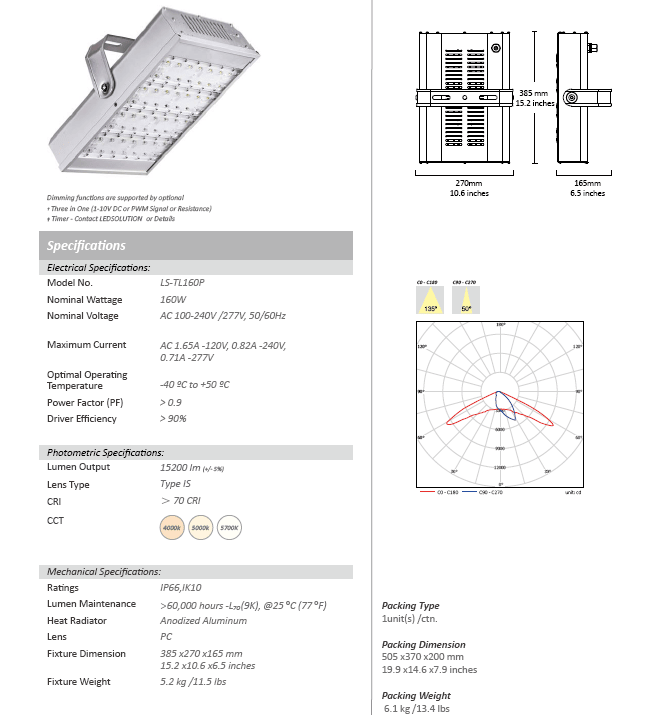

Specification

Specifications
Model	LS-TL160P
LED Brand	PHILIPS® LUXEON® T
Driver Brand	Meanwell Driver
Norminal Wattage	160W
LED Quantity	56pcs
Input Voltage	AC 100-240V /277V, 50/60Hz
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>100lm/w
Lamp Rated Lumen output	16000 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>75
Color Temperature	4000 or 5000 or 5700K
Photometric Type	Type I Short
Optimal Operating Temperature	25°
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	>60,000 hours -L70(9K), @25 ºC (77 ºF)
Body and Shell Materials	Anodized Aluminum
IP Rating	IP66 &IK10
Certification	CE,ROHS,CB,GS
Optional Function	1-10V DC or PWM Signal or Resistance Dimming
	Timer/Photocell Control
Warranty	5 years

Packing Details
Fixture Dimension	385 x270 x165 mm
Fixture Weight	5.2 kg /11.5 lbs
Packing Dimension	505 x370 x200 mm
Packing Weight	6.1 kg /13.4 lbs

Payment Terms:

1. Samples: Bank TT, 100% payment in advance;

2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.

Delivery time:

1. Samples: 3-7 working days;

2. Bulk order: 7-15 working days.

Warranty:

3 years warranty

Shipping Method:

1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;

2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery

3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.

4. Your shipping agent or forwarder.

After-sale Service:

1. Quick reply on customers'questions;

2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.

3. Make you a happy ordering.

FAQ

Q: What's your main products?

A: We are mainly specializing in industrial lighting and commercial lighting including: led high bay light, led street light, explosion proof light, led flood light, led canopy light, led panel light and led tube

Q: How about your quality?

A: Our products are tested by 86 engineers before shippment. And our products are past UL, DLC, CE, EMC, SAA and TUV-GS. The certificates are on our website.

Q: How long the wattanty?

A: 3-5 years warranty. Once you find quality problem from our company during warranty period, please supply us pictures or video to confirm, if it's our quality problem, we will send you a free one to replace relace.

Welcome your inquiry!

Prod Model:	LS-TL160P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Current:	AC 0.41A-120V, 0.21A-240V,
Power Factor (PF):	> 0.90
LED Chip:	Philips Chips
Working Temperature:	-40 - +50
Driver Efficiency:	> 90%
LED Driver:	Mean Well
Operating Humidity:	10% to 90%
Heat Radiator:	Anodized Aluminum
Input Voltage(V):	100-240V/277V/347V/480V
CRI (Ra>):	75
Lamp Body Material:	Aluminum Alloy
IP Rating:	IP66
Lifespan:	>50000 hours
Warranty:	5 Years
Certification:	VDE
With Light Source:	With Light Source
Color Temperature:	2800-6500k
Beam Angle:	50/135 Degree
Housing Color:	Silver
Voltage:	100-240V/277V/347V/480V
