Home LED Light Products IP65 Outdoor Fixed LED Digital Display (P20)

IP65 Outdoor Fixed LED Digital Display (P20)

IP65 Outdoor Fixed LED Digital Display (P20)
Price: US $ 66-2000/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: L/C,T/T
IP65 outdoor fixed LED digital display (P20) Features:

1. Cabinet structure is with light weight and standardization: Adopting high strength metal process, achieving high precision, light weight and other outstanding features; Uniform image picture with high refresh frequency and gray level to realize the vivid effect.

2. High bearing strength and fast installation through the connecting plate. With flexible installation, such as embedded installation, post mounting, etc. It would not occur the extrusion and deformation

3. Phenomenon between the modules when the display is working under the high and low temperatures.
Achieve low heat, low noise and low radiation: Through the good structure design, ensure Low decibel value and stable performance when it works in the normal temperature; Passed the EMC test.

4. High voltage thermal pull out plug in application: It will not strike fire during pull out the plug process, and fully accomplish the phenomenon such as waterproof, anti-interference, corrosion resistance, etc.
The module cases with the handle for installation and maintenance, the mask is not reflective, and resistance to ultraviolet ray, do not fade for 5 years, contrast to 1000: 1, cabinet flatness coefficient < 0.5 mm, power factory can reach more than 88%.

5. Double backup data and applications of optical fiber system, ensures that the screen can work in high efficiency, stability, security situation. The rational allocation of light sensor, the LED display will in the best work state and dynamic energy saver by adjusting automatically the screen brightness according to the change of the external environment to save the operating cost effectively

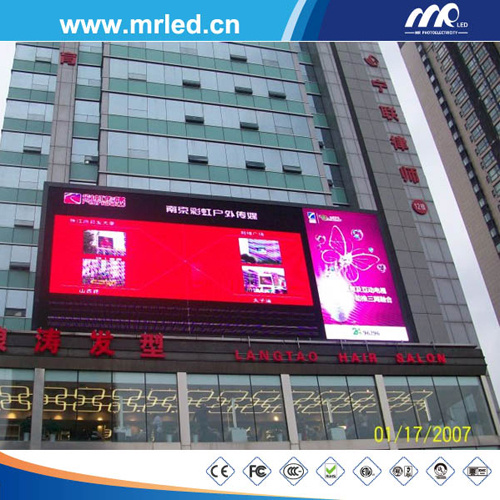

MRLED can provide P20 advertising outdoor full color SMD LED display. It is designed for outdoor video advertising use, the improtant feature for this products is both of waterproof and brightness under sun, Chipshow design are IP65 rate.

Applications

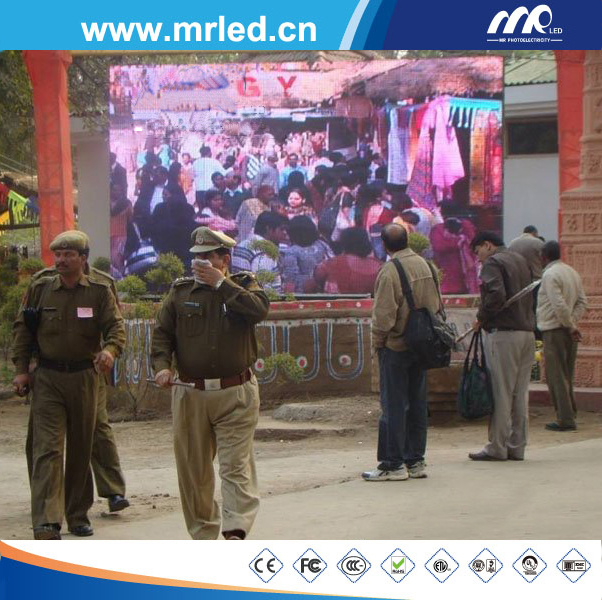

It can be used in many application, such as public locations, commercial advertisement, bank gyms dance clubs, traffic facilities and so on.

Item P20 advertising LED digital Display
Pixel Pitch: 20mm
Driving Method : Static duty
LED type : DIP 346
Brightness: ≥7000cd/m2
Pixel density 2500pix/m2
Viewing angle: 120°H and 60°v
Module Size(W*H) 320*320mm
Cabinet Size(W*H) 1280*1280mm
Cabinet weight: 70kg
Cabinet Material: Iron
Avarage Power Consumption: 240 W/m2
Max Consumption : 650 W/m2
Refresh rate: ≥1200HZ
Color Depth: 14bit
voltage : 200-240V
IP Rrating (Front/Rear): IP65/IP54
Operating temperature : -20-60 degree
Storage temperature: -40-70 degree
Operation humidity: 10-90%
Storage humidity: 10-90%
Life span (hrs) ≥55000
Control system Linsn/Nova
Compliant standard: CE,CCC,FCC,RoHS
Prod Model: P20
Markets: North America,South America,Southeast Asia,Africa,Mid East
Brightness: 7000CD/M2
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Pixel Pitch: 20mm
Display Function: Video Display
Scanning Mode: 1/4 Scan
Certification: ETL
Average Power Consumption: 300W / m²
Pixel Density: 2500dots/M2
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.

Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.

Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.

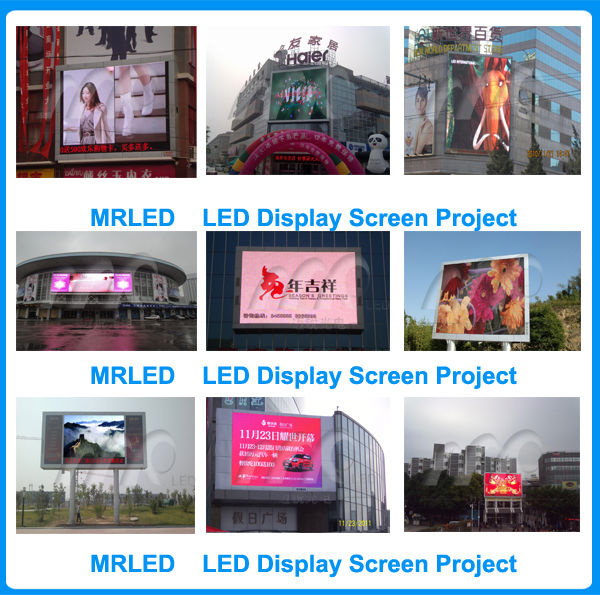

MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
