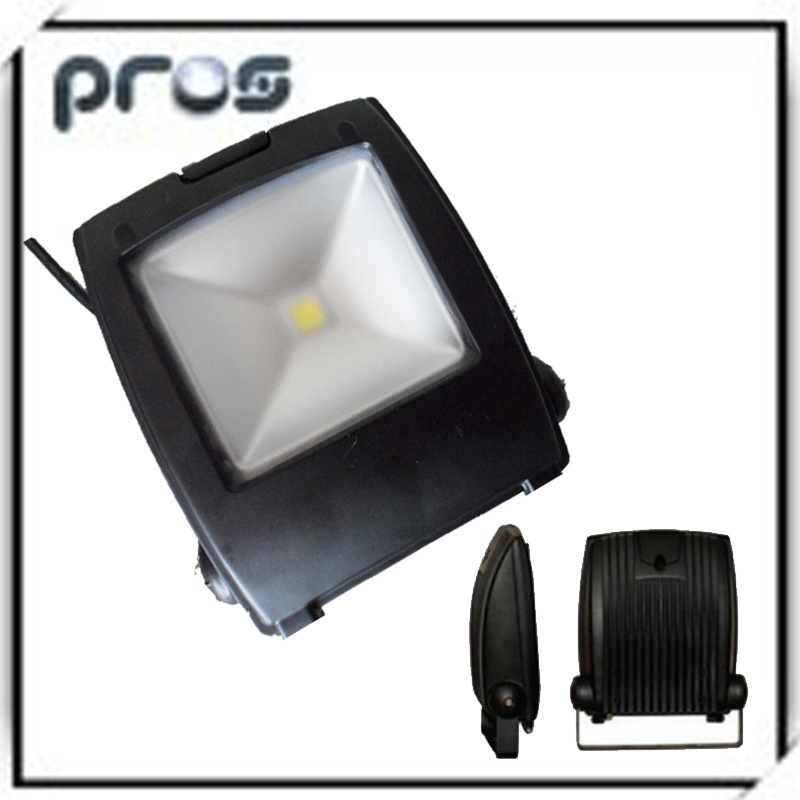

20W led flood light / led floodlight
Main Features
1. LED floodlight: Multi-Chips LED With Epistar chips.
2. Input Voltage: 85-265VAC, Wide voltage design, available for whole world use.
3. Technique: The LED closely connected to the crust ensures life-span effectively.
4. Driver: Built-in power supply, precision constant current drive LED, and further improve the light stability.
5. Protection Grade: IP65, it can be use outdoor.
6. RGB are available, remote controller.
7. Match with sensor is available.
8. Black and Gray finished cover are both available for floodlight
10. New lamp body- Backpack version for 2012
11. Widely used for Garden, building decoration as landscape lighting for outdoor, also can be used as main lighting for indoor.
General Characters
Model: PL-FWL70W BP version
Dimension: 350*295mm
Voltage: 85-265V AC
Light source: 1pc 70w cob led
Flux: 6300lm
Color temperature: 2700K-3500K ( Warm White )
4000K-4500K ( Natural White )
6000K-7000K ( White )
Color:
Red, Green, Blue, Yellow, White, Warm White
Beam angle: 120°
Protection rank: IP65
Cover: Tempered glass
Material: Aluminum
Work efficiency: >85%
Life span: 50.000hrs
Work temperature: -20 ~ +50degree
Net weight: 3.8kg
Finished color: Powder coating with black or gray color
Instruction
1. To protect the shell, pls don't wipe the light with rough and erosive cleanser, and do not rinse it with high-press
Water
2. Make light away from the dissolving chemicals to avoid light shell to be destroied
3. Should use within -25~50
4. Pls do not use if the light to be mangle or has insulated problem
5. This light should be installed or repaired by professional person
6. Pls contact supplier for related information when you have further questions
Typical Applications
This light could be used for Garden, building decoration as landscape lighting for outdoor etc., also can be used as
Main lighting for indoor.
Package:
Pc per white box
30pcs per carton
Carton size: 51.5x30x63cm
Gross weight: 19kg
Model: |
PL-FWL20W BP version |
Dimension: |
184x 170× 53mm |
voltage: |
85-265V AC |
Light source: |
1pc 20w cob led |
Flux: |
1800lm |
Color temperature:
|
2700K-3500K ( Warm White ) |
4000K-4500K ( Natural White ) |
6000K-7000K ( White ) |
Red, Green, Blue, Yellow, White, Warm White |
Beam angle: |
120° |
Protection rank: |
IP65 |
Cover: |
Tempered glass |
Material: |
Aluminum |
Work efficiency: |
>85% |
Life span: |
50.000hrs |
Work temperature: |
-20 ~ +50degree |
Net weight: |
0.9kg |
Finished color: |
Powder coating with black or gray color |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
