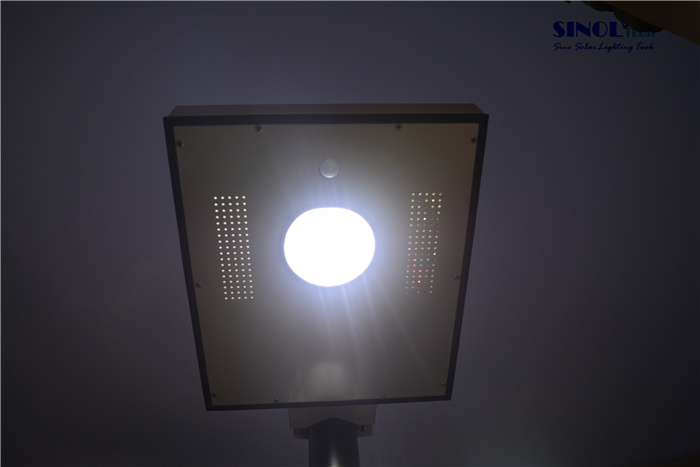

12W LED Integrated Solar garden light
12W LED 25W PV All in one Solar Garden Light SN-112 (Motion sensor)
Item No. SN-112
Size 480*440*50mm
Solar panel 25W, 410*340mm
LED brand 12W Bridgelux
Color temperature 6000-6500K
Lumen(LM) 1200-1280lm
Lithium Battery 10AH
Packing size/weight 550*400*150mm/7KG
Visual angle 120°
Install height 3-4m
Working temperature: -30~+60C
LED service life: 50000 hrs
Lithium battery and controller service life: Over 5 years
Warranty: 2 years
NEW! All in one solar garden/street light with higher PV power
Improvement comparing with SN-2 series:
1. For same LED power, solar panel power and battery capacity is higher, increasing both charging time and discharging time.
2. Switch material changed to stainless steel, other than previous plastic type, safer and longer service life.
3. The inter contact terminal among all components is changed to waterproof type, increase the waterproof feature, more delicate in workmanship, easier to ship and mount.
Main Feature:
Solar Panel: High efficiency monocrystal panel/sunpower
LED Lamp: 8W-60W high lumens, chip from USA
Battery Type: High capacity lithium battery
Controller: Intelligent lighting controller R&D
Work Temp: -30C~+60C
All in one intelligent design.
Long lighting time up to 36-48 hours.
Energy saving LED garden/street lights.
Different motion sensor with timer.
Pole optional, easy to install
Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service
Life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.
Working principle:
The working principle of all in one solar light is the same with conventional solar light, the only difference is all components-solar panel, LED light, battery and control system are all integrated into one product, using lithium battery to make the whole product more light weight and easy installation.
| Solar Panel | Max Power | 18V25W(High efficiency monocrystalline silicon) |
| Life time | 25 years |
| Battery | Type | Lithium battery 10AH |
| Life time | 5 years |
| LED Lamp | Max power | 12V12W |
| (With sensor) | Led chip brand | Bridgelux |
| Lumen(LM) | 1200-1280LM |
| Life time | 50000hours |
| Viewing angle | 120 degree |
| Charge time | By sun | 7-8 hours |
| Discharge time | Full power | 10 hours |
| Half power | 20 hours |
| Working temp. | range(C) | -20C~+60C |
| Color temp. | range(k) | 6000-6500k |
| Mounting height | range(m) | 3-4m |
| Space between light | range(m) | 8-10m |
| Main lamp materials |
| Aluminum alloy |
| Certificate |
| CE/ROHS/IP65 |
| Warranty period |
| 2 years |
