Materials: High pressure die-casting aluminum shroud, electro-static spray mirror aluminum reflector and toughened glass.
Applications: Buildings, landscape, parking lot, advertisement board, stadium, etc and other spot lighting places.

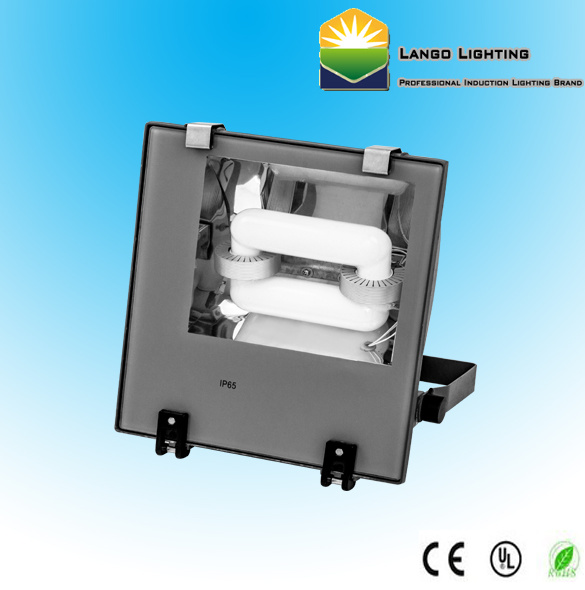

LG0553-1a Product Features:
1. High pressure die-casting aluminum shroud, anti-corrosion and steadfast.
2. Electro-static spraying on the surface.
3. Imported mirror aluminum reflector, proving excellent light distribution.
4. Equipped with our Company's LG rectangular induction lamp; High luminous efficiency, long use-life, excellent color rendering, stable ray and no flash, energy saving, wide color temperature, soft ray, stable light output, etc.
|
Lamp Source |
|
Series |
Model |
CRI |
Nominal Light Flux |
Effective Light Flux(plm) |
Lumen Maintenance(2000h) |
Working Frequency(KHz) |
Ambient Temperature(ºC) |
Light Size |
System Power |
Warranty(Year) |
|
(Ra) |
(Lm) |
(mm) |
(W) |
|
rectangular |
LG-Q-40W |
>80 |
3200 |
3900-4600 |
≥90 |
230 |
-25~50 |
179x114x89 |
42 |
5 |
|
rectangular |
LG-Q-60W |
>80 |
4800 |
5850-6900 |
≥90 |
230 |
-25~50 |
179x114x89 |
63 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Ballasts |
|
Model |
Working |
Working Current |
Electric |
Working Frequency(KHz) |
Power Factor |
Operating Temperature (ºC) |
Harmonic |
Shade Materials |
Ballast Type |
Input Power(W) |
|
Voltage(VAC) |
(VAC) |
Frequency(Hz) |
|
LG-Z-40T |
220±10% |
0.19 |
50/60 |
230 |
>0.93 |
-25~50 |
≤10% |
Cold roll plate |
Standard |
42 |
|
LG-Z-40L |
220±10% |
0.19 |
50/60 |
230 |
>0.93 |
-25~50 |
≤10% |
Aluminum section |
Standard |
42 |
|
LG-Z-40K |
90-300 |
0.38/0.19/0.15 |
50/60 |
230 |
>0.98 |
-25~50 |
≤10% |
Aluminum section |
Wide |
42 |
|
LG-Z-60L |
220±10% |
0.29 |
50/60 |
230 |
>0.93 |
-25~50 |
≤10% |
Aluminum section |
Standard |
63 |
