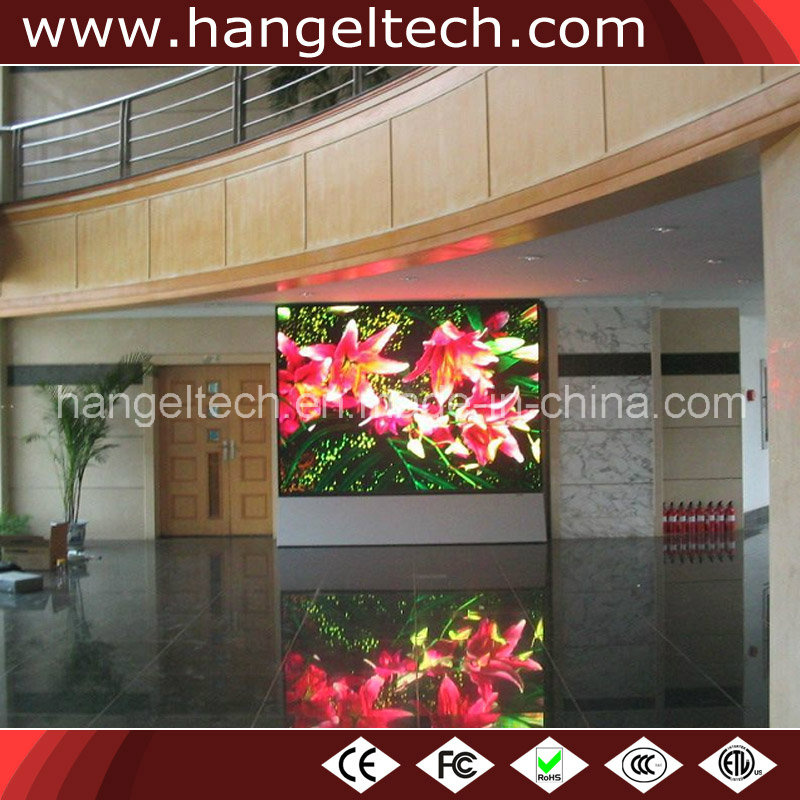

Indoor SMD P5mm Full Color Advertising LED Display, cost effective model
> Interior LED display video wall, led video board;
> Standard steel close cabinet, strong, firm and flat, prevent distortion during shipping and installing. Make sure the whole screen is flat, seamless, playing good and uniform image;
> Small size cabinet unit, light body. Easy for shipping and installing;
> SMD 3 in 1 pixel, low voltage module, easy for maintenance;
> All cables wired inside, no cable is outside. outlook tidy, and whole screen safe. Naked installing is ok;
> Smooth and vivid image. The display is of 10-bit colors, with 65536 gray scale to play natural and vivid image.
> Many mature controlling solutions are optional. 3G, 4G, WIFI, group cloud controlling are available. Camera, cable TV, the 2nd development docking with other devices and optional. There is always a solution suitable for situation needing;
> Top-Brand Components make sure the reliable quality, MW power supply, MBI driving IC, etc.
> All the PCB is covered by conformal coating. It is water proof & insulated in some extent and helpful for heat dissipation;
Application
> Indoor Advertising - installed in kinds of shopping mall, super market, hotel, senior club, playing kinds of appointed ads, promotional information, etc. No matter it is video, flash, picture or text messages;
> Government & Enterprise Project - playing image promo, local cultures, landscape, etc.
> Culture & Tourism - playing information of landscape, interesting places, historic sites, local stories, culture, interesting manners and customs;
> Sport Matches - live broadcasting kinds of matches, events, posting the scores, etc.
> Image Propaganda - playing image promo, concerning ads, etc.;
> Commercial Real Estate - using as giant video wall to play concerning information comprehensively;
> Multimedia Meeting Room - installed as large multi-media video wall, playing the wanted video, pictures, etc. accordingly;
> Security & Protection - installed as giant monitor screen in central controlling room, monitoring all the situation of every camera real time.
> Stage - playing kinds of stage background and colorful bright effect;
Specifications,
LED Specs |
LED Chip Brand | Red, Green, Blue: Epistar; |
Wave Length (nm) | R: 625nm; G: 525nm; B: 470nm |
Pixel Configuration | 1R 1G 1B |
Module & Cabinet Specs |
Pixel Pitch | 5mm |
Pixel Density | 40,000 Pixel/sqm |
Module Dimensions (W x H) | 160mm x 160mm |
Physics Pixel / Module | 32 x 32 pixels |
Module Frame | Integrated Lamp Board and Driving Board |
Cabinet Dimensions ( W x H xT) | 640 x 640 x 130mm |
Physics Pixel / Cabinet | 128 x 1928 pixels |
Module QTY / cabinet | 16 pcs of module |
Cabinet Weight | 20 kg/pc |
Cabinet Material | Steel Cabinet |
Cabinet Frame | Standard close cabinet with back door |
Tech. Parameters |
Brightness | 1000~2000 cd/sqm, manual & auto adjustable |
Best Viewing Distance | 3 meters |
Power Consumption | Max. 1000 W/sqm; Average 300 W/sqm; |
Drive Mode | 1/16 scan, constant current driving |
Refresh Rate | >600 HZ |
Frame Rate | 60HZ |
Display Flatness | ±0.5mm |
Maintenance | Back access, replace the module or other components |
Led Life Span | 100,000 hours |
Supply Voltage | AC110V / 220V, 10% more or less |
Operating Temperature | -20 Celsius ~ +50 Celsius |
Operating Humidity | 10%-90% |
Storage Temperature | -40 Celsius ~ +60 Celsius |
Viewing Angle | Horizontal:120°; Vertical: 65° |
Grey Scale | Red, green, blue each 16k |
Display Colors | 4096 Billion |
Using Site | Indoor use, window use, no water proof |
Aging Time in Factory | More than 72 hours constantly |
Control |
System Supported | win XP, win7, win8, win8.1, win10 |
Control Mode | Real Time Control (Synchronous) |
Display Capability | Flash, Video, Graphic, Text |
Signal Supported | RGB, VGA, DVI, etc. |
Warranty | 2 years |
Concerning Models |
HTF-ID3-S | HTF-ID4-S | HTF-ID6-S | HTF-ID7.62-S | HTF-ID10-S |
