Home LED Light Products Indoor RGB LED Walls P3 Indoor LED Display

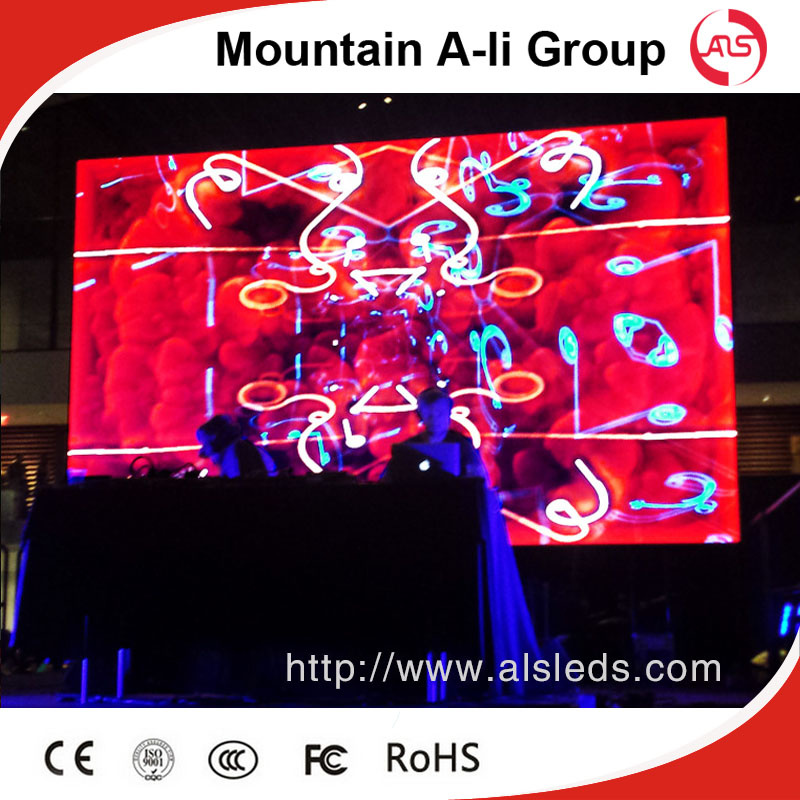

Indoor RGB LED Walls P3 Indoor LED Display

Indoor RGB LED Walls P3 Indoor LED Display
Price: US $ 1205-1235sqm
Trade Terms: FOB,CFR,CIF
Min Order: 1sqm
Pay Type: T/T,Western Union,Paypal
Main features:
1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated.
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
4. Real white, brilliant colors, breathtaking grayscale.


Functions and advantages

1.Have obvious competitiveness in quality and price in the international LED market .

2.The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use.

3.Low power consumption and good performance of dissipating heat make it work normally in the condition of no air conditioning.

4.Which help customers to transport and mount without any difficulties ,reduce the cost of use greatly!

5.The cabinet is made of Die-Casting aluminium , which can be spliced with no gap. The thickness of the cabinet is only 80mm. The assembling can be much quicker and more efficient for no extra tools are needed, which help customers  transport and mount without any difficulties ,reduce the cost of usage greatly!

6.Suitable for indoor, commercial applications, banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment, enterprises and other various indoor places.


Parameter

The specifications of modules
ItemsParameter
Product ModelP3 Indoor Full Color LED Module
Module size192mm*96mm
Pixel pitch3mm
Pixel density 111111dots/m2
Pixel configuration1R1G1B
Module resolution64dots(W)*32dots
Module maximum power consumption18W
Module Thickness1.4CM
Module Weight0.16kg
Driving methodConstant Current Driving
Scanning method1/16scan
InterfaceHUB75
Brightness ≥1500cd/m2
The specifications of cabinets
Cabinet size576mm*576mm
Module quantity18pcs
Power supply5V/40A 5V/60A
Cabinet resolution 192*192dots
Optimal viewing distance3M~20M
Optimal viewing angle160°(W) 120°(H)
RHWorking temperature(Work :-20°C~+60°C)
System operating humility10%-95%
The specifications of power supplier
Operating VoltageAC220V±10%
Average power consumption180W/H
Maximum power consumption≤360W/m2
Electric current≤20mA(single LED)
The specifications of control card
Control PanelsPentium4 or above
Operating systemWIN98/2000/NT/XP
Control modelSynchronization with PC
The specifications of the main technical parameters
Driving deviceConstant Current Driving
Refresh rate≥600HZ
Grey scaleRGB Each 256, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic Switch
Display Mode800*600/1024*768/1280*900




Our services:

1.Your inquiry about our products or the price will be replied within 24 hours!

2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.

3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!

4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.


Trade Terms

1.Packing: Anti-shaking wooden cabinet /Air flight case/carton

2.Shipping port: Shenzhen. China

3.Shipping freights are quoted according to your requests

4.Delivery time:5-15 working days

5.2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees.
Prod Model: ALS-P3
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No: P3 Indoor Full Color LED Display
Module Size: 192mm*96mm
Mbtf: 9000hours
Cabinet: 576mmx576mm
Module Maximum Power Consumption: 18W
Port Type: Hub75-a
Module Thickness: 14.75mm
Driving Method: Constant Current Driving
Brightness: 2000CD/M2
Module Weight: 0.16kg
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Scanning Mode: 1/16 Scan
Display Type: LED Video Display
Application: Shopping Guide
Certification: FCC
Pixel Pitch: 3mm
Pixel Density: 111111dots/M2
System Operating Platform: Win98/2000/Nt/XP
IP Rating: IP65
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
