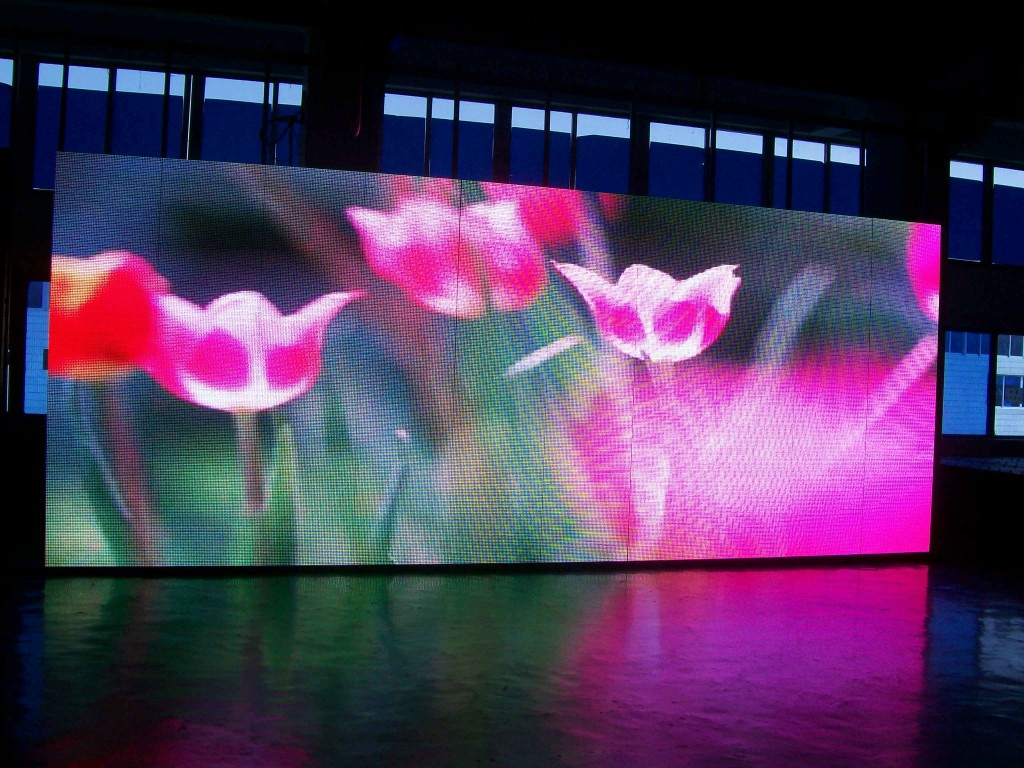

Model: pH8 3-in-1 SMD indoor full color LED display
1. PixelPixel pitch: 8 mm
Pixel density: 15625 dots / sq. M.
Pixel configuration: 1R1G1B
LED specification: SMD1210
2. Module
Module matrix (pixel dots): 32*16
Module size: 256*128 mm
Module power consumption: 25W
3. Cabinet
Cabinet matrix (pixel dots): 128*96
Cabinet size: 1024*768*120 mm
Cabinet pixel density: 12288 dots
Protection level: IP43
Cabinet weight: 35kg
4. Main technical parameter
Best viewing distance: 7.5m
Best viewing angle: 120° (horizontal)
Max power consumption: 1000W / sq. M.
Control mode: Synchronization
Graphics card: DVI Graphics card
Drive mode: Constant current drive 1/8
Exchange frame rate: ≥ 60Hz
Refresh rate: ≥ 400Hz
Grey grade: 4096 grade
White balance brightness: ≥ 1000CD/sq. M
Working environment temperature: -20-50
Working voltage: AC100V-240V, 50-60Hz
Brightness adjusted way: Manual, 256 level; Auto, 8 level.
MTBF: ≥ 10, 000 hours
Screen lifetime: 100 thousand hours
Blind DOT rate: 0.0003
Computer operating system: WIN98, WINXP, WIN2000, etc.
Video signal: RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control system: DVI Graphics card + sending card + receiving card
PC display mode: 1024*768
Software: LED studio
5. With CE, RoHS, FCC Certification, ISO9002
|
PH8 indoor SMD 3-in-1 full color LED Display |
|
LED Configuration |
3528 SMD 3 in 1 |
|
Scan Mode |
1/8 |
|
Brightness(display calibrated at 6500K) |
1500 |
|
Grey Level |
4096 Level |
|
Pixel Density |
10000/sqm |
|
Unit Module Dimentions(mm) |
320*160 |
|
Module Resolution (L*W) |
16*8 |
|
Mini. Vewing Distance (meters) |
10 |
|
Power Consumption |
Max. 625W/m² Average: 400W/m² |
|
Viewing Angle(@50% brightness) |
Horizontal 110 degree, Vertical 60 degree |
|
Lifetime (@50% brightness) |
≤ 100000 hrs |
|
Operation Power Voltage |
AC 180~240V/(110V)± 15%, 4763Hz |
|
Cabinet Size (L*H)(mm) |
960*960/Customized |
|
Cabinet Type |
Standard / Ultra slim Cabinet |
|
Cabinet Material |
Steel Iron/Aluminum alloy |
|
Cabinet Display Surface |
0.9216 sqm |
|
Cabinet Weight (including Structure) |
55 KG/ 25 KG |
|
Protection Rating (front/back) |
IP 31 |
|
Application |
Fixed installation |
|
Colors |
68.7 Billion |
|
Single Connector |
9 pin waterproof connecter |
|
Power Connector |
3 pin waterproof connecter |
|
Power Supply |
Industrial standard power supply |
|
Fan |
Industrial standard Fan |
|
Max Power Cascade Connection |
4~5 cabinets |
|
Servicing |
Backside |
|
Operating Temperature |
-35~60 |
|
Storage Temperature |
-35~60 |
|
Operation Humidity |
10~99% |
|
Storage Humidity |
10~99% |
|
System Platform |
Windows XP or Above |
|
Control System |
Computer Control System/ Vedio Processor |
|
Signal Transfer |
Lan Cable/ Fiber optic |
|
Effective Control Distance |
≤ 100 M (by LAN), ≥ 100M (by fiber optic with Multi-module or sigle module |
|
Souce Compatibility |
DVD, VCD, VCR, TV, Camera with PAL/NTSC |
|
Certification |
CE Rohs CB CCC |
