General

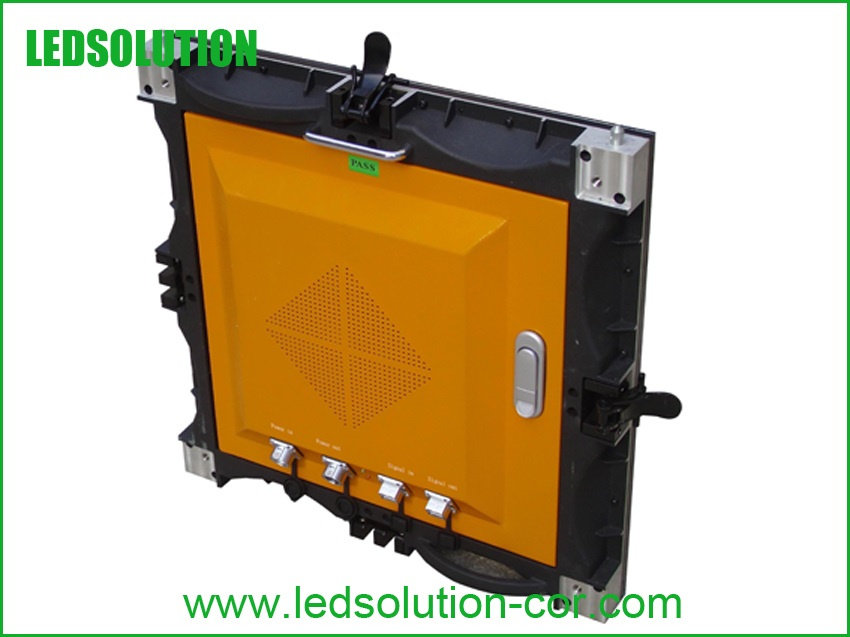

Die-cast Aluminum Displays are specially designed for rental application. Lightweight, excellet panel flatness, easy assembly, easy dis-assembly, no need for any tools.
Main features of P4 indoor rental using LED diaplsy
1. Competitive prices, reliable quality
2. High brightness & High resolution;
3. High contrast ratio which ensures vivid images;
4. Low power consumption, environmentally friendly;
5. Wide viewing angle, 140 degree both horizontal and vertical;
6. Customizable for various sizes;
7. Compatible software: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA;
8. Excellent after-sales service, warranty of three years;
9. CE, RoHS, ISO certificate
Packaging & Delivery
Packaging Detail: Fumigation-free Wooden Case/flight case/carton box
Delivery Detail: 22-30 days
About LEDSolution
LEDSOLUTION is one of the most competitive Global suppliers of Complete LED Video Displays, LED Lightings and LED Components Solutions. We are specialized in high quality LED components, LED displays and LED lighting products including research, development, production and marketing, serving various turnkey solutions for government projects, corporate image projects, commercial projects and release of network information, etc.
Applications:
LED display is applied for advertising, city beautifying, information publicity, great concerns and relative activities.
1. Outdoor advertising, digital billboards, advertising in big companies
2. Stadium, Sports halls, fields, playgrounds
3. Airports, bus stations and railway passenger terminals
4. Facades of shopping malls, department stores, banks and car dealerships
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.
|
Parameter |
Unit |
Value |
|
Pitch |
mm |
4 |
|
Brightness |
nits |
1,500 |
|
Color temperature |
deg. K |
6,500 |
|
Viewing angle - Horizontal (50% brightness) |
deg. |
140(-70 ~ +70) |
|
Viewing angle - Vertical (50% brightness) |
deg. |
140(-70 ~ +70) |
|
Panel weight |
kg |
12 |
|
Panel width |
mm |
480 |
|
Panel height |
mm |
480 |
|
Panel depth |
mm |
50 |
|
Panel area |
sq. m. |
0.2304 |
|
Panel material |
|
Epoxy paint coated Aluminum |
|
Panel Mode |
|
Die-Cast rental |
|
Operating temperature range |
deg. C |
-30 to +60 |
|
Humidity operating |
RH |
10% ~ 90% |
|
Pixel type and configuration |
R/G/B |
3528 3in1 SMD |
|
Resolution per panel |
|
120x120 |
|
Dot per panel |
|
14,400 |
|
Dot per sq. meter |
|
62,500 |
|
LED per sq. meter |
|
62,500 |
|
Recommended minimum viewing distance |
m |
3 |
|
Recommended best viewing distance |
m |
4~12 |
|
Colors |
|
281 Trillion |
|
Grey scale (linear) |
Levels |
65,536 levels per color |
|
Brightness control |
Levels |
100 |
|
Contrast ratio |
|
1,000:1 |
|
Processing depth |
bit |
16 |
|
Video frame rate |
Hertz |
60 |
|
Display refresh rate |
Hertz |
180~3,000 |
|
Input voltage (nominal) |
VAC |
110 to 240 |
|
Input power frequency |
Hertz |
50 to 60 |
|
Input power (max) |
Watts / panel. |
300 |
|
Input power (typical) |
Watts / panel. |
120 |
|
Lifetime (50% brightness) |
Hours |
≥100,000 |
|
Red wavelength (dominant) |
nm |
620~625 |
|
Green wavelength (dominant) |
nm |
520~525 |
|
Blue wavelength (dominant) |
nm |
470~475 |
|
Multimedia data format |
|
DVI,MPG,AVI,WMV,RM etc. |
|
Data interconnection |
|
UTP Cat 5/Optical Fiber |
|
Mounting system |
|
Hanging / Fixed |
