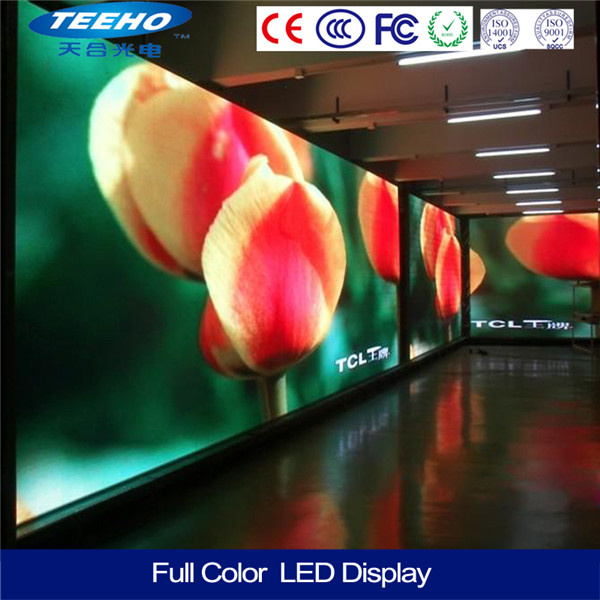

Indoor P3 Rental LED Display Full Color Super Slim LED Display
| Price: |
US $ 2757/Square Meter |
| Trade Terms: |
FOB,CFR,CIP |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
Super Slim Indoor IP43 P3l Rental LED Display Full Color , 1R1G1B 3-IN-1 SMD
Specifications:
Part Number | PE 3 seriers 480*480 |
Resolution | 80*80 |
Pixel Pitch | 3mm |
LED Configuration |
1R1G1B 3-IN-1 SMD |
Pixel Density | 111,111pixels/ m2 |
Module Size | 240*240MM |
Cabinet size | 480*480MM |
Driving IC |
MBI5024 |
Driving Method | 1/20scan AC |
Cabinet Weight |
7.5kg/sq.m. |
Mechanical Ratings |
Hanging Weight Support |
2T |
Surface Flatness |
Gap<0.5mm |
Optical Ratings |
Brightness |
1,500cd/ m2 |
View Angle |
120°/120° |
Gray Scale |
8bits input, correction with 14bits |
Display COLOR |
16.7M |
Brightness Adjustment |
0~100% |
Power Supply |
Operation Power |
90~260V 50~60Hz |
Max. Power Consumption | 1200W/ m2 |
Average Power Consumption |
280W/ m2 |
Control System |
Control Mode |
Synchronous display with control PC by DVI |
Frame Update Frequency |
60~85Hz |
Screen Refresh Frequency |
300~1000Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental |
Operating Temperature |
-30°~+60° |
Operating Humidity |
10~95% RH |
Operating Life |
100,000hours |
MTBF |
10000hours |
Protection Level |
IP43 |
Out of Control Rate |
<0.01% |
Super Slim Indoor IP43 P3l Rental LED Display Full Color , 1R1G1B 3-IN-1 SMD
Light weight & super slim
Quickly and easily installed
High refresh rate
Beautiful surface design
Description:
1. Ultra thin and slim design.
2. HD video with vivid pictures.
3. Hanging beam structural design makes it easy and fast for installation.
4. Locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
5. Neat and Hidden Wiring allow the led display more tidy and beautiful.
Applications:
Stage Background
Airport & Station
Television Relay
Information Display
Stadium
Event Show
| Prod Model: |
PE seriers 480*480 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Customized |
| Module Size: |
192X96mm |
| Cabient Size: |
768X768mm |
| Warranty: |
2 Years |
| Birghtness: |
1200nits |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Certification: |
ETL |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Shopping Guide |
| IP Rating: |
IP40 |
| System Operating Platform: |
WIN XP |
| Scanning Mode: |
1/20s |
| Pixel Pitch: |
3mm |
| Pixel Density: |
111111 |
