Indoor & Outdoor SMD P10 Perimeter LED Display
| Price: |
US $ 1800-2500/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
LEDSOLUTION P10 Perimeter LED DisplayMain Product Features:*high brightness
*good heat dissipation
*easy maintenance
*excellent after-sales service
*Claw lock system to link cabinets to avoid visible gaps between cabinets.
*Soft rubber mask facia to protect the screen and the players on impact
*Simple power and data connections, daisy chain from one cabinet to the next for fast connection

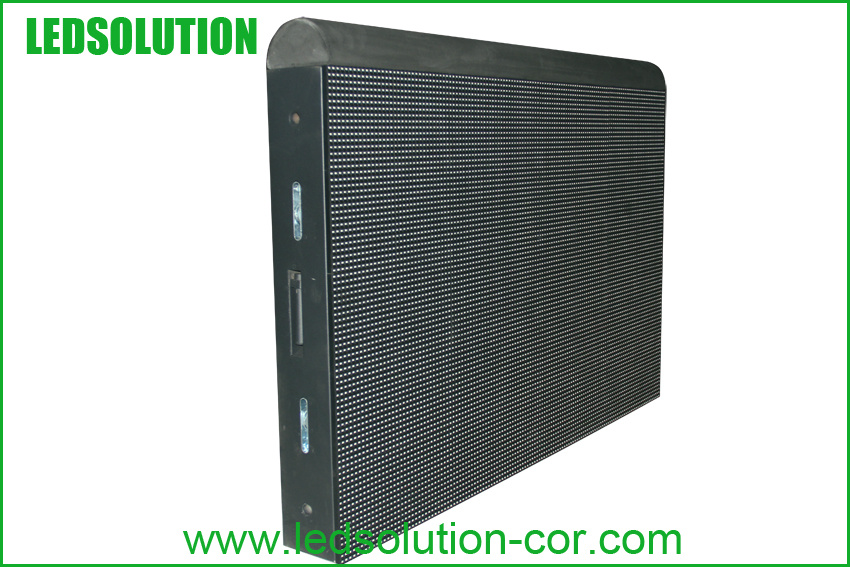

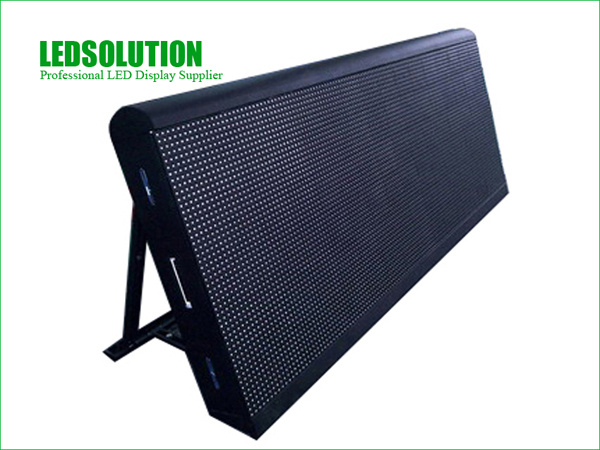

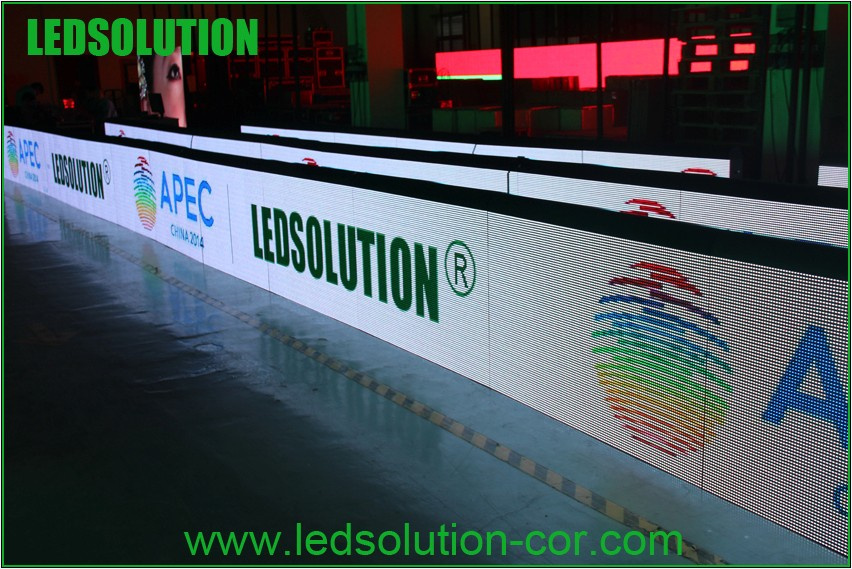

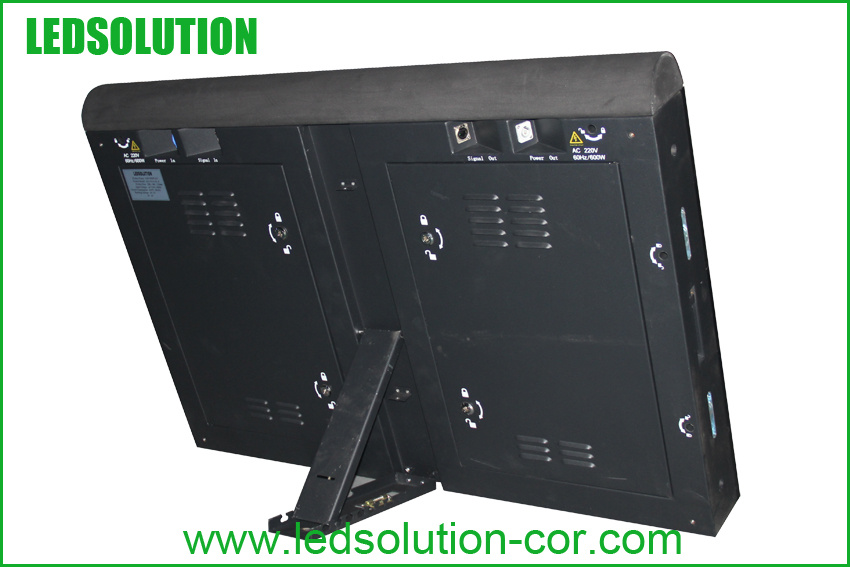

*Any cabinet in any position, no need for numbering cabinets and ensuring they are connected in the correct order, easy software set-up when cabinets are connected.Product Photos:
|
Parameter |
Unit |
Value |
|
Pitch |
mm |
10 |
|
Brightness |
nits |
6,000 |
|
Color temperature |
deg. K |
6,500 |
|
Viewing angle – Horizontal (50% brightness) |
deg. |
140(-70 ~ +70) |
|
Viewing angle – Vertical (50% brightness) |
deg. |
140(-70 ~ +70) |
|
Panel weight |
kg |
54 |
|
Panel width |
mm |
960 |
|
Panel height |
mm |
960 |
|
Panel depth |
mm |
170 |
|
Panel area |
sq. m. |
0.922 |
|
Panel material |
|
Epoxy paint coated Cold rolled steel |
|
Panel Mode |
|
Quick Assembly Cabinet with Bracket |
|
Special Design |
|
Soft Plastic Mask |
|
Ingress protection (front/rear) |
IP |
IP65/IP43 |
|
Operating temperature range |
deg. C |
-30 to +60 |
|
Humidity operating |
RH |
10% ~ 90% |
|
Pixel type and configuration |
R/G/B |
3in1 SMD |
|
Resolution per panel |
|
96x96 |
|
Dot per panel |
|
9,216 |
|
Dot per sq. meter |
|
10,000 |
|
LED per sq. meter |
|
10,000 |
|
Recommended minimum viewing distance |
m |
10 |
|
Recommended best viewing distance |
m |
10~30 |
|
Colors |
|
1,073.7 million |
|
Grey scale (linear) |
Levels |
1,024 levels per color |
|
Brightness control |
Levels |
100 |
|
Contrast ratio |
|
1,000:1 |
|
Processing depth |
bit |
16 |
|
Video frame rate |
Hertz |
60 |
|
Display refresh rate |
Hertz |
180~3,000 |
|
Input voltage (nominal) |
VAC |
110 to 240 |
|
Input power frequency |
Hertz |
50 to 60 |
|
Input power (max) |
Watts /sq. m. |
860 |
|
Input power (typical) |
Watts /sq. m. |
344 |
|
Lifetime (50% brightness) |
Hours |
≥100,000 |
|
Red wavelength (dominant) |
nm |
620~625 |
|
Green wavelength (dominant) |
nm |
520~525 |
|
Blue wavelength (dominant) |
nm |
470~475 |
|
Multimedia data format |
|
DVI,MPG,AVI,WMV,RM etc. |
|
Data interconnection |
|
UTP Cat 5/Optical Fiber |
|
Mounting system |
|
Stand on ground by bracket |
| Prod Model: |
LS-O-P10-SMD-P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Advertising |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
RoHS |
| Pixel Density: |
10000 dot / m² |
| Pixel Configuration: |
3in1 SMD |
| Average Power Consumption: |
344W/Sqm |
