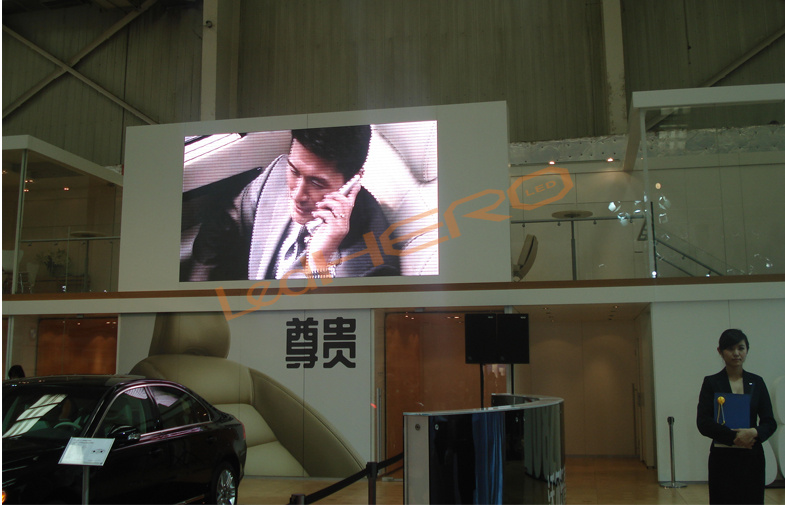

Indoor led display with best quality in meeting room
specification:
Part Number |
HERO-IDS4F-16S |
Resolution |
64(H)×64(V) |
Pixel Pitch |
2.5mm |
LED Configuration |
1R1PG1PB SMD |
Pixel Density |
160,000pixels/ m2 |
Module Size |
160*160mm |
Driving IC |
MBI5024 |
Driving Method |
1/16 Scan, Constant Current |
Cabinet Weight |
|
Mechanical Ratings |
Hanging Weight Support |
2T |
Surface Flatness |
.025mm |
Optical Ratings |
Brightness |
1300cd/ m2 |
View Angle |
140°/140° |
Gray Scale |
16 bits |
Display COLOR |
281 Trillion |
Brightness Adjustment |
0~100% |
Power Supply |
Operation Power |
220V /50Hz 110V/60Hz |
Max. Power Consumption |
1680W/ m2 |
Average Power Consumption |
670W/ m2 |
Control System |
Control Mode |
Synchronous display with control PC by DVI |
Frame Update Frequency |
60fps |
Screen Refresh Frequency |
>1080Hz |
Gamma Correction |
-5.0~+5.0 |
Support Input |
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance |
Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode |
1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction |
Pixel, Module, Cabinet |
Environmental |
Operating Temperature |
-20°~+60° |
Operating Humidity |
10~90% RH |
Operating Life |
100,000hours |
MTBF |
10,000hours |
Protection Level |
~ |
Out of Control Rate |
<0.02% |
Description:
1.It has very light weight, only about 45kg/ cabinet. easy to set up and disassemble , aluminum alloy promised the screen be strong enough and also light.
2.Low power consumption, one card for a cabinet design, improved the refresh frequency better. meet the needs of high-definition video shooting.
3.Supports brightness adjustment and white balance custom adjustment with 256 levels, which enables mix usage of different batches of display.
4.Have good light and sound penetrating.
5.It has long lifespan, can reach 100000 hours.
Application
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.
Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero
8-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
For more led information about p10 led display moudle with high performance ,welcome to our officer website:www.led-hero.com
