indoor High Quality LED Display (4K resolution, high brightness)

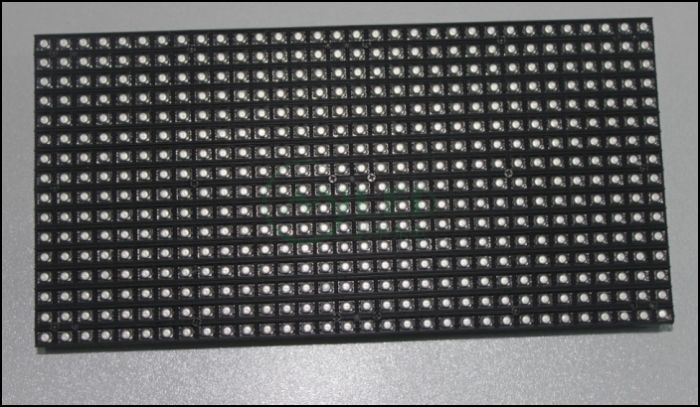

| Specification of Indoor SMD 3-in-1 LED Display |
| P4 | P5 | P6 | P7.62 | P8 | P10 | P12 |
| Pixel pitch | 4mm | 5mm | 6mm | 7.62mm | 8mm | 10mm | 12mm |
| Size of module | 128×128mm | 160×160mm | 192×96mm | 244×122mm | 256×128mm | 160×160mm | 192×192mm |
| Density of pixel | 62500dots/m2 | 40000dots/m2 | 27777dots/m2 | 17222dots/m2 | 15625dots/m2 | 10000dots/m2 | 6944dots/m2 |
| Constitution | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Encapsulation | S0807 | 3528 | 3528 | 3528 | 3528 | 3528 | 3528 |
| Module resolution | 32×32 | 32×16 | 32×16 | 32×16 | 32×16 | 16×16 | 16×16 |
| Module power cosumption | 30W | 20W | 24W | 25W | 25W | 15W | 35W |
| The optimum viewing distance | 4m | 5m | 6m | 7.5m | 7.5m | 8m | 10m |
| Viewing angle(Horizontal) | 140/120° | 120° | 120° | 120° | 120° | 120° | 120° |
| Maximum power cosumption | 1500W/m2 | 1300W/m2 | 1000W/m2 | 550W/m2 | 1000W/m2 | 450W/m2 | 800W/m2 |
| size of cabinet | 512×384mm | 640×480mm | 960×768mm | 976×732 mm | 1024×768 mm | 1280×960 mm | 768×576 mm |
| Resolution of cabinet | 128×96 | 128×96 | 160×128 | 128×96 | 128×96 | 128×96 | 64×48 |
| Cabinet weight | 15kg | 21kg | 43kg | 43kg | 35kg | 54kg | 43kg |
| Driving Components | MBI5024GF | MBI5024GF | MBI5024GF | MBI5024GF | MBI5024GF | MBI5024GF | MBI5024GF |
| Driving method | 1/8 | 1/8 | 1/8 | 1/8t | 1/8 | 1/8 | 1/4 |
| Frame frequency | ≥60hz/s | ≥60hz/s | ≥60hz/s | ≥60hz/s | ≥60hz/s | ≥60hz/s | ≥60hz/s |
| Refresh rate | ≥400hz/s | ≥400hz/s | ≥400hz/s | ≥400hz/s | ≥400hz/s | ≥400hz/s | ≥400hz/s |
| Luminance of white balance | ≥2000 CD/m2 | ≥1800 CD/m2 | ≥2000 CD/m2 | ≥1200 CD/m2 | ≥1100 CD/m2 | ≥1500 CD/m2 | ≥1100 CD/m2 |
| Working enviornment temperature | -10ºC--50ºC(-30ºC--50ºCoptional) |
| Working voltage | 220±10% or 110±10% |
| Grey Scale/Color | Displaying colors≥16.7M(synchronized) |
| Brightness adjustment | 256 levels of each color(R,G,B) can be adjusted manually, and 8 levels of each color can be adjusted automatically |
| Input signal | RF, S-VIDEO, RGB, RGBHV, YUV, YC and COMPOSITION, etc |
| Control system | PCTV non-linear editting card+DVI display card+main controller card+optic fibre transmission(Optional) |

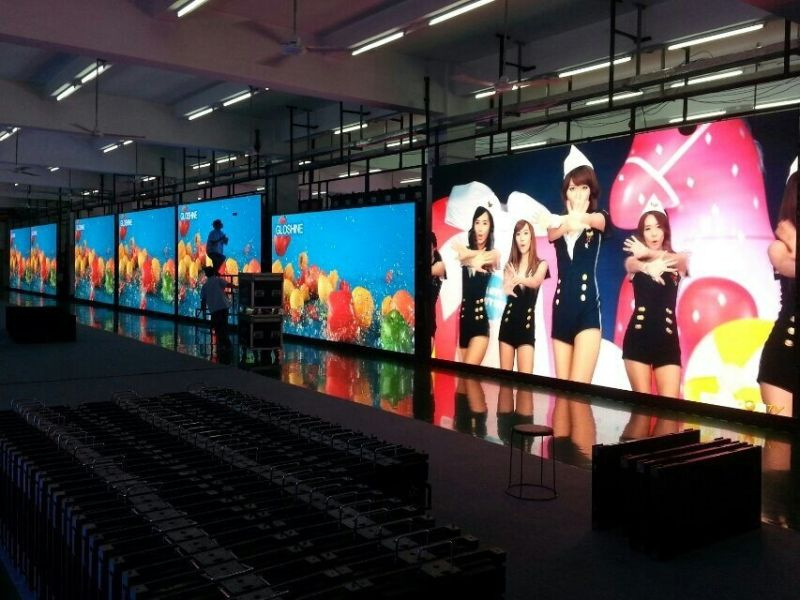

The most cost effective LED display for indoor advertising, being introduced to the market for more than 10 years. We have to say, for indoor advertising, P6 & P7.62, are the most reliable products since ever!
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
