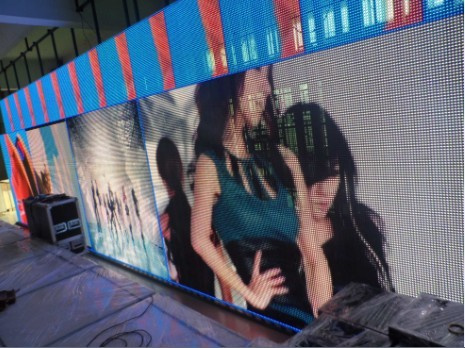

Product features
1. Simple structure, easy to assembled and maintained.
2. Specially designed for indoor long viewing distance.
3. Portable, convenient, big pixel pitch, very cost effective.
4. No-fans design. With lower sound, better heat dissipation, lower consumption, higher reliability.
5. Bright color, quick respond, long life span. Environment friendly and energy saving.
6. Strip structure and eliminating nearly all limitations on display size.
7. Mainly applied in indoor stage background for concert, curtain wall building, large advertising display, clubs, etc.
Display and Control Feature
Structure Feature
Specification
Parameter
Specification
Parameter
Pixel Pitch
7.62mm
Module size
305mm*366mm
Pixel composing
1R1G1B
Display resolution/module
40 dots*48 dots
Wavelength (R)
625± 5
Standard cabinet size
610mm*732mm*60mm
Wavelength (G)
522± 3
Weight per PCS
8.90 Kg/PCS
Wavelength (B)
567± 3
Protection classification
---
Wave Angle (H)
120° (H)/120° (V)
Install mode
Wallmount, hung and stand structure
LED package
SMD 3528
Density
17222
Working Power
Color Depth
14 bits
Specification
Whiteness brightness
≥ 1800CD
Working voltage
AC 220V/380V± 10% 47~64Hz
Brightness level
128 grade
Max power/sqm
155W/sqm
Changing frame frequency
60 Hz
Average power/sqm
330W/sqm
Refresh
960 Hz
Short circuit protection
Yes
Driving method
Constant driving 1/8
LED Chip
Silan
Control mode
Synchronous
Working Environment
10~90%
