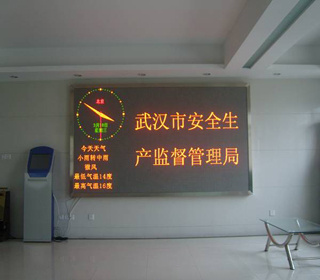

Double color message LED panel
1. Function
It can be used in the traffic environmetns, such as bus stop, airport, part and so on as the guiding system. And it can also be used in banks, estate, stock to show the information of stock, exchange, estate and so on. Also, it is very popular in shops, gym, postoffice, hotel etc to show the important information.
2. Advantages
(1). Professional manufacturering
(2) Distributing scanning method and modularity in designs.
(3) Constant static driving method and the brightness can be adjusted by
Itself.
(4) Super brightness and pure pixels
(5) Clear pictures with distortion and double images.
(7) Can be controlled by LAN remotely.
Display and Control Feature |
Structure Feature |
Specification |
Parameter |
Specification |
Parameter |
Pixel Pitch |
7.62 mm |
Module size |
488 mm*244 mm |
Pixel composing |
1R1G |
Display resolution/module |
64 dots*32 dots |
Density |
17,222 dots/sqm |
Best viewing distance |
5~150- m |
Wavelength (R) |
625±5 |
Weight per sqm |
50 Kg/sqm |
Wavelength (G) |
522±3 |
|
|
Wave Angle (H) |
120° |
Control system |
DVI card+control card |
Wave Angle (V) |
60° |
Install mode |
Wallmount, hung and stand structure |
LED package |
Matrix |
Working Power |
Color |
256*256 |
Specification |
Parameter |
Whiteness brightness |
≥1000 cd/m 2 |
Working voltage |
AC 220v/380v±10% 47~64Hz |
Brightness adjustment |
100 grade |
Max power/sqm |
500W/sqm |
Changing frame frequency |
60 Hz |
Average power/sqm |
400W/sqm |
Refresh |
180 Hz |
Short circuit protection |
Yes |
Driving method |
Constant driving 1/16 |
|
|
Control mode |
Synchronous/Asynchronous |
Working Environment |
Display port |
DVI |
Specification |
Parameter |
Display mode |
1024*768 /1024*1024 |
Environment |
indoor |
Out of control |
1/10,000 ( scattered) |
Working temperature |
0~50 0 C |
lifetime |
100,000 hours |
Working Humidity |
10~90% |
