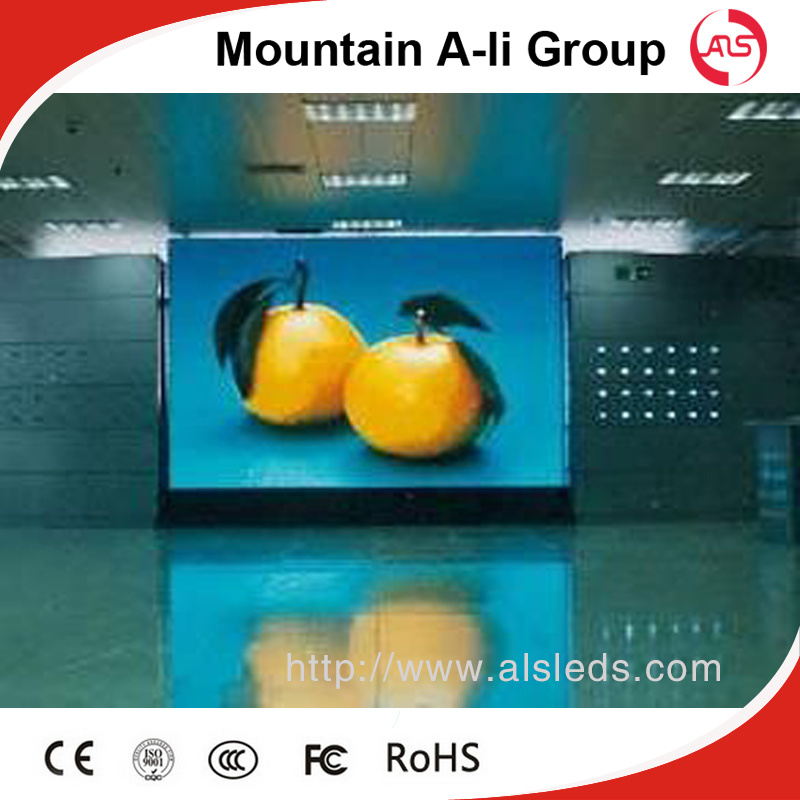

Indoor Full Color LED Stage Display P5
Advantages:
Large view angle
Easy to carry and fast installation
Heat dissipation and long life
Seamless tiled best results
Competative factory price
Leading rental screen enterprise in China famous brand
Famous enterprise and TV corporate enterprise
High resolution high precision
Features:
1,Super slim cabinet and maximum thickness is only 75mm.
2,Super light cabinet and it's only 12kg/pcs.
3,Different colors of back cover can be satisfied with people's demand in different feeling.
4,Use high-end 16-bit IC and rich and delicate color and refresh rate up to 3500HZ.
5. The cabinet has the fast rotating hanging lock and manual pressure tablets which can avoid
accidental collision and dropping off and connect the screen is safer.
6,Based on unique back cover of design, according to the site conditions, it can be selected a
variety of quick repairing method.
7,Cabinet is used the die-casting aluminum molding technology and beautiful and strong structure
and its flatness ≤0.5mm.
8,Using Neutrik flight connector can make sure that LED screen is connected to be faster and it
works more steadily.
9,Using DC cooling fan can effectively reduce the noise when it's used in indoors.
10,Support for stacking and hanging installation.
Technical parameters |
S/N | Module Specification |
1 | Pixel Pitch | 2.5mm |
2 | Pixel Configuration | 1R1G1B |
3 | LED Type | SMD 3IN1 |
4 | LED Wavelength | R(620-630nm) IV(150-200mcd) G(520-525nm) IV(260-330mcd) B(465-470nm) IV(55-65mcd) |
5 | Pixel Density | 160000 pixel dots/s.q.m |
6 | Module Size(W X H) | 240mm x 120mm |
7 | Module Resolution( W X H) | 96pixel dots x 48pixel dots |
8 | Input Voltage(DC) | 5V +/- 5% |
9 | Cabinet Specification |
10 | Cabinet Size(W X H) | 480mm x 480mm |
11 | Cabinet Resolution(W X H) | 192 pixel dots x 192 pixel dots |
12 | Unit Cabinet Weight | 12kg(without packaging) |
13 | Thickness | 85MM |
14 | Whole Screen Specification |
15 | Screen Brightness | Min. 1700nits/s.q.m |
16 | Driving Mode | Constant current 1/8 driving |
17 | H/V Visual Angle | 120 deg./55 deg. |
18 | Minimum Viewing Distance | 2.5m |
19 | Max. Power Consumption | 300W/s.q.m |
20 | Average Power Consumption | 200W/s.q.m |
21 | Gray Level | 4096 levels |
22 | Frame Frequency | Min. 60Hz |
23 | Refresh Frequency | Min. 400Hz |
24 | Blind Spot Rate | Max. 1/10000 |
25 | Protective Scale | IP20 |
26 | Screen Plainness | Max. +/- 1mm |
27 | Power Supply Mode | AC220 +/- 10% 50Hz/AC110 +/- 10% 60Hz |
28 | Environment Temperature & Humidity | Temperature -20 Celsius degree~+60 Celsius degree Humidity 10%~90% RH |
29 | Control System |
30 | Operating Environment | Operating system Chinese/English Windows98/me/2000/NT/XP
Hardware Configuration Pentium 300MHz or above ROM 64M Graphics Card Standard VGA 256mode or above
Related Software Microsoft Media player compulsory OFFICE2000 in case of *. doc files RealPlayer in case of RealPlayer files |
31 | Software | LED Studio |
32 | Control Mode | Synchronization display(work with computer) |
33 | Control System | DVI video card + full color control card + fiber system( optional) |
34 | Display Content | Video DVD, VCD, TV, image, texts.etc. |
35 | Interface | Standard Ethernet |
36 | Transmission Distance | CAT5 cable:<100 m; Single fiber:<10 km |
