Household garden lighting 8W solar LED light

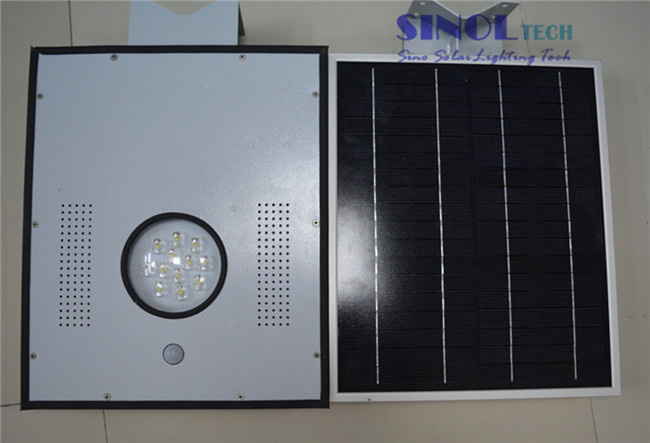

8W LED 20W PV All in one Solar Garden Light SN-108 (Motion sensor)
Item No. SN-108
Size 480*440*50mm
Solar panel 20W, 410*340mm
LED brand 8W Bridgelux
Color temperature 6000-6500K
Lumen(LM) 900-950lm
Lithium Battery 9AH
Packing size/weight 550*400*150mm/7KG
Visual angle 120°
Install height 2-3.5m
Working temperature: -30~+60C
LED service life: 50000 hrs
Lithium battery and controller service life: Over 5 years
Warranty: 2 years
NEW! All in one solar garden/street light with higher PV power
Improvement comparing with SN-2 series:
1. For same LED power, solar panel power and battery capacity is higher, increasing both charging time and discharging time.
2. Switch material changed to stainless steel, other than previous plastic type, safer and longer service life.
3. The inter contact terminal among all components is changed to waterproof type, increase the waterproof feature, more delicate in workmanship, easier to ship and mount.
Main Feature:
Solar Panel: High efficiency monocrystal panel/sunpower
LED Lamp: 8W-80W high lumens, chip from USA
Battery Type: High capacity lithium battery
Controller: Intelligent lighting controller R&D
Work Temp: -30C~+60C
All in one intelligent design.
Long lighting time up to 36-48 hours.
Energy saving LED garden/street lights.
Different motion sensor with timer.
Pole optional, easy to install
"SINOLTECH" is the solar energy brand name of Jinan Oufu Technology Co., Ltd,
Focusing on overseas marketing of high quality and advanced solar energy products.
Our company was firstly established in year 2005, in order to respond and conform to the trend of global environmental protection "low carbon" and "green energy", Oufu starts an independent department "SINOLTECH" in year 2008, specializing in research, development, innovation, production and export for solar lighting and other Solar application products. Our main products include integrated solar street light,
Solar garden light, solar lawn light, solar landscape light, solar fan, portable solar System, solar chargers etc.
SINOLTECH obtains 5 products patents, with more than 2 production and assembly base, total area more than 4600 square meters, employees over 200.
Until now, SINOLTECH already passed system certification of ISO9001: 2000, TS16949, SGS ISO14001, OHSAS 18001.
All products have passed CE, ROHS and IP65 certificates.
Production capacity for all in one solar street light is 5000 units per month,
SINOLTECH have established close cooperation with a number of domestic and foreign universities and national research institutions.
Our main exporting markets include:
USA, Germany, Russia, Italy, France, Spain, Australia, New Zealand, Isreal, UAE, Jamaica, Chile, Japan, Thailand, Philippines, Singapore, Malaysia, Pakistan etc more than 60 countries.
SINOLTELCH always put the needs of clients in the first place, solving all problems in the first time.
Integrity, professional, efficient, friendly and mutual benefit is always our company tenet, SINOLTECH expects to cooperate and serve clients worldwide.
| Solar Panel | Max Power | 18V20W(High efficiency monocrystalline silicon) |
| Life time | 25 years |
| Battery | Type | Lithium battery 9AH |
| Life time | 5 years |
| LED Lamp | Max power | 12V8W |
| (With sensor) | Led chip brand | Bridgelux |
| Lumen(LM) | 900-950LM |
| Life time | 50000hours |
| Viewing angle | 120 degree |
| Charge time | By sun | 8 hours |
| Discharge time | Full power | 12 hours |
| Half power | 24 hours |
| Working temp. | range(C) | -20C~+60C |
| Color temp. | range(k) | 6000-6500k |
| Mounting height | range(m) | 2-3.5m |
| Space between light | range(m) | 8-10m |
| Main lamp materials |
| Aluminum alloy |
| Certificate |
| CE/ROHS/IP65 |
| Warranty period |
| 2 years |
"SINOLTECH" is the solar energy brand name of Jinan Oufu Technology Co., Ltd, focusing on overseas marketing of high quality and advanced solar energy products.
Our company was firstly established in year 2005, in order to respond and conform to the trend of global environmental protection "low carbon" and "green energy", Oufu starts an independent department "SINOLTECH HOLDING GROUP Ltd" in year 2008, specializing in research, development, innovation, production and export for solar lighting and other solar application products.
Our main products include integrated solar street light, thin film flexible solar panel, solar garden light, solar lawn light, solar landscape light, solar fan, portable solar system, solar chargers etc.
SINOLTECH obtains 5 products patents, with more than 2 production and assembly base, total area more than 4600 square meters, employees over 200. Until now, SINOLTECH already passed system certification of ISO9001: 2000, TS16949, SGS ISO14001, OHSAS 18001.
All products have passed CE, RoHS and IP65 certificates. Production capacity for all in one solar street light is 5000 units
Per month, for flexible solar panel is 100KW per month, SINOLTECH have established close cooperation with a number of domestic and foreign universities and national research institutions.
Our main exporting markets include: USA, Germany, Russia, Italy, France, Spain, Australia, New Zealand, Isreal, UAE, Jamaica, Chile, Japan, Thailand, Philippines, Singapore, Malaysia, Pakistan etc more than 60 countries.
SINOLTELCH always put the needs of clients in the first place, solving all problems in the first time.
Integrity, professional, efficient, friendly and mutual benefit is always our company tenet, SINOLTECH expects to cooperate and serve clients worldwide.
