Home LED Light Products Hot Sales 7metres Pole, 30W LED Wind Solar Hybrid Street Lights

Hot Sales 7metres Pole, 30W LED Wind Solar Hybrid Street Lights

Hot Sales 7metres Pole, 30W LED Wind Solar Hybrid Street Lights
Price: US $ 390-400/Set
Trade Terms: FOB
Min Order: 100/Set
Pay Type: L/C,T/T

Product Description

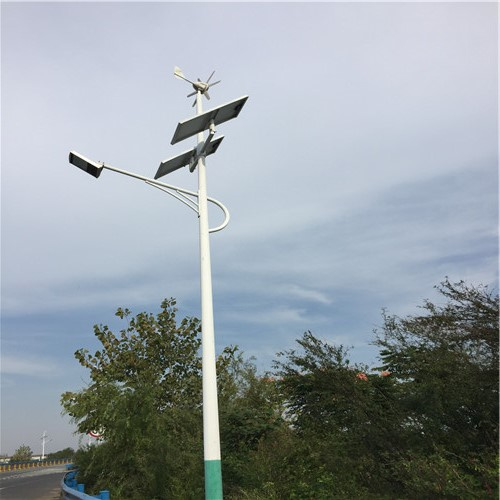

7Metres Pole, 30W LED Wind-Solar Hybrid Street Lights,
Model:JS-C2015010730

Configurations:
1. Pole Height: 7M, Diameter: 75*150mm, Thickness: 3.50mm
Plastic coated on HDG pole, Rust Proof, resistant to wind: 150KM/H
2. Applicable light source: 30W LED, 3600LM, Lifespan: >80000Hrs.
3. PV Module: 110W*1PC, Crystalline, 90% of minimum warranted power output over 12 years, 80% over 20 years;
4. Gelled Battery: 120Ah*1PC, Fee Maintenance, Deep Cycle, Sealed Type, Deep Cycle.
5. Battery Box: Engineer Plastic, Bury under ground
6. Controller: 10A/12V Automatic light and time control system.
7. Wind turbine material: 300W, Forced Nylon Fiber in Blade, Aluminium alloy in body, 48mm Steel Tube connection.


Design based on 5.0KWH solar radiation;
Lighting hours: 11-12 Hrs/Day*3-4 days no sun;
Getting more information, or other requirements for this 30W LED Wind-Solar Hybrid Street Lights, mail or call us please.


Detailed Packing:
LED Light: Carton packing;
PV Panel: Carton and pallet packing;
Solar Battery: Carton and pallet packing;
Controller: Carton packing;
Pole and Brackets: Bubble wrap

Our Service:
1. More Than 10 Years Producing And Exporting Experience.
2. Many Kinds of LED Solutions for longer lifespan and all kinds of lighting effect.
3. Our Sales Team Work Efficiency, and every design will based on your installed condition.
4. Our Solar Street Lights Have Successfully Been Applied In More Than 50 Countries
5. Except Video Installation Instruction, we can send our engineer to spot guidance, or teach yourengineer in our factory.
Specification for 30W LED Wind-Solar Hybrid Street Lights,6Metres Pole
Part Name and LifespanTechnical Specification
Solar Panel:
Lifespan:20-25 years
110W*1PC Polycrystalline. High Efficiency. A-class
Adding Aluminum Frame, Tempered Glass.
Gelled Battery
Lifespan:5-8 years
120Ah/12V*1PC, Gelled battery, Sealed Type.
Deep cycle. Maintenance Free
Intelligent Solar Controller
Lifespan:5-10 years
10A/12V,IP65. Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after designed Hours later.(11-12 Hrs)
Light source: High Power LED
Lifespan: More than 50000-100000Hrs
30WLED, White Color, Cree Chip, 3600LM/PC,6500K,IP65,High Power, High Brightness.
Lamp Housing:
Lifespan: More than 20 years
Die-casted Aluminum, IP65
High transmittance & Density toughened glass,
Battery Box:Engineer Plastic, bury under ground.
GI Pole System:
Lifespan: More than 20 years

7M Height, tapered Pole, Steel,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H
Wind turbine300W, Forced Nylon Fiber in Blade, Aluminium alloy in body, 48mm Steel Tube connection.

Prod Model: JS-C2015010730
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lamp Luminous Efficiency(Lm/W:140): Lamp Luminous:5000k
Pole Height: 7m
Power Supply: DC
Color Temperature: Cool White
Lamp Body Material: Aluminum Alloy
Power: 30w
Application: Garden
IP Rating: IP65
Certification: CCC
Input Voltage: 24v
With Light Source: With Light Source
LED Chips Brand: CREE
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.

Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances

We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.

Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.

In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
