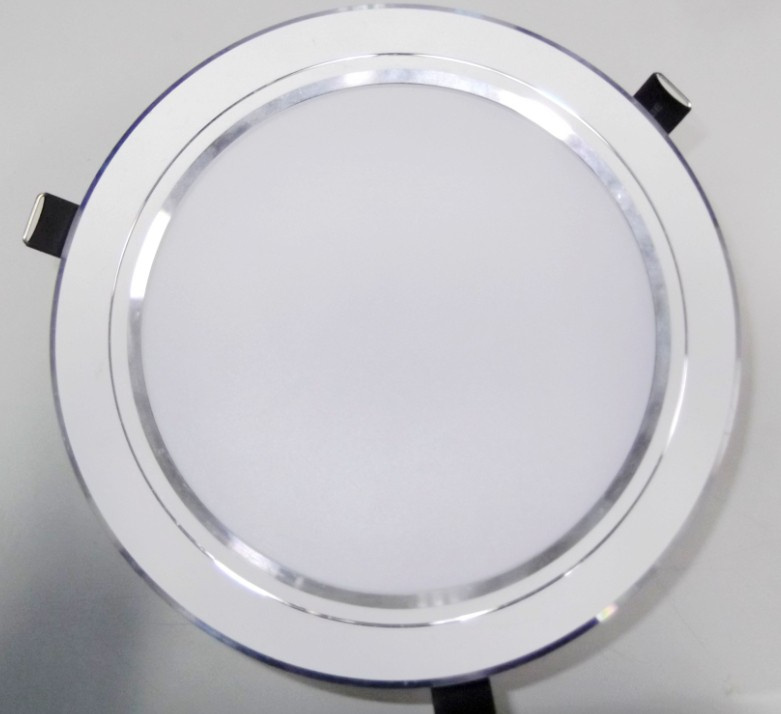

LED RECESSED LIGHTING
Product feature
Quick light up, no flicker
No UV and radiation
Low power consumption, energy and money saving
No pollution, recyclable. Conforms to the green energy conservation and the RoHS standard
Operating temperature: -30~45 celsius
Storage temperature: -40~80 celsius
Long lifespan (30, 000 hours at ambient temperature 25 celsius)
Able to be used in office, home, build construction or decoration illuminant and so on
Applications:
1. Indoor lighting: Office, factory, warehouse, home
2. Local lighting: Display windows, exhibition display
3. Guidance lighting: Lobbies, corridors, stairwells
4. Decorative lighting: Commercial Center, indoor decoration
P/N |
2.5 inch 3W
white stoving varnish |
3 inch 5W
white stoving varnish |
3.5 inch 7W
white stoving varnish |
4 inch 9W
white stoving varnish |
5 inch 12W
white stoving varnish |
6 inch 15W
white stoving varnish |
8 inch 18W
white stoving varnish |
Model |
LF-KBTD-2.5/3W-F |
LF-KBTD-3/5W-F |
LF-KBTD-3.5/7W-F |
LF-KBTD-4/9W-F |
LF-KBTD-5/12W-F |
LF-KBTD-6/15W-F |
LF-KBTD-8/18W-F |
Input Voltage |
AC 85-265V |
AC 85-265V |
AC 85-265V |
AC 85-265V |
AC 85-265V |
AC 85-265V |
AC 85-265V |
LED QTY. |
6PCS |
10PCS |
14PCS |
18PCS |
24PCS |
30PCS |
36PCS |
LED Type |
5730 |
5730 |
5730 |
5730 |
5730 |
5730 |
5730 |
Power |
3W |
5W |
7W |
9W |
12W |
15W |
18W |
Luminous Flux |
225-240LM |
375-400LM |
525-560LM |
675-720LM |
900-960LM |
1125-1200LM |
1350-1440LM |
Viewing Angle |
140° |
140° |
140° |
140° |
140° |
140° |
140° |
CRI |
>70 |
>70 |
>70 |
>70 |
>70 |
>70 |
>70 |
Color
Temperature |
3000-6500K |
3000-6500K |
3000-6500K |
3000-6500K |
3000-6500K |
3000-6500K |
3000-6500K |
Size |
D100*50mm(hole:D70mm) |
D110*55mm(hole:D80mm) |
D120*55mm(hole:D90mm) |
D147*60mm(hole:D110mm) |
D180*60mm(hole:D145mm) |
D195*65mm(hole:D160mm) |
D233*80mm(hole:D195mm) |
Lifetime |
50000H |
50000H |
50000H |
50000H |
50000H |
50000H |
50000H |
IP Grade |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
