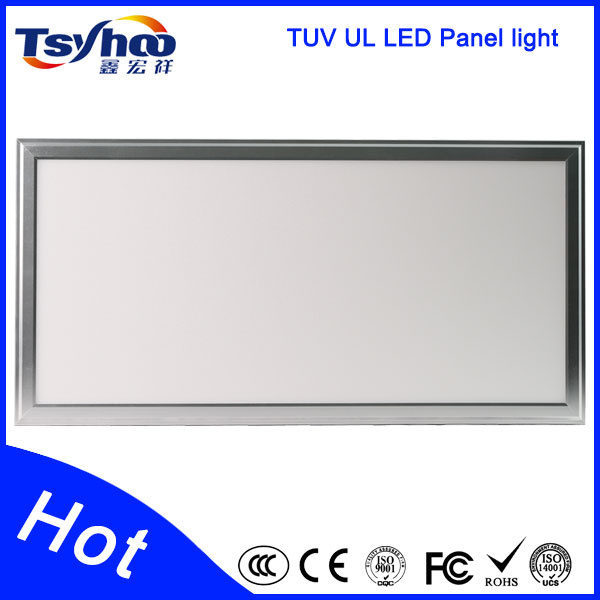

Hot Sale LED Panel Light 3060 Panel LED
Price: |
US $ 20-25/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
Hot sale LED Panel Light 3060 Panel Led
Specifications:
Product name: LED panel light 3060-30W
Product description: 30W LED panel light
Product model: XHX-PL6030-30W
Beam angle: 180°
Input Wattage: 30W
Product Shape: 600x300x14mm
Input voltage: AC110/230V
Life span: >35000 hours
Light Source: 3014 SMD LED
IP Grade: IP62
Safety Certification: CE & RoHS
Solution: External isolated driver
Model | Normal Power | Maximum power | LED Chip Brand | Beam angle | Voltage | Color Temperature | Size |
XHX-PL2020 | 9W | 12W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 200x200x12mm |
XHX-PL3030 | 12W | 36W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 300x300x12mm |
XHX-PL3060 | 18W | 36W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 300x600x12mm |
XHX-PL15120 | 36W | 48W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 150x1200x12mm |
XHX-PL30120 | 36W | 72W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 300x1200x12mm |
XHX-PL6060 | 36W | 72W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 600x600x12mm |
XHX-PL60120 | 54W | 100W | Epistar | >150° | AC85-265V | 3000K/5000K/6500K | 600x1200x12mm |
LED panel /LED panel light / LED panel lights / LED panel lighting /SMD3014 LED panel /high bright LED panel
Product features:
1. High efficiency: High lumen output, low power, power efficiency above 92%.
2. Stable: Constant current driver, fast response(no delay), low temperature, easy installation.
3. Long lifespan: Above 35, 000 hours.
4. Energy saving: Based on the same illuminance, LED panel lights save 80% electricity than conventional panel lights.
Application area:
Widely used in city buildings, hotel, supermarket, office, Commercial Complexes, Factories, Residential, Institution buildings etc.
Parameter | Symbol | Model | Min. | Typ. | Max. | Unit |
Input Wattage | P | | - | 22 | | W |
Input Voltage | Vin | 50/60Hz | | 110/230 | | V |
Input Current | Iin | | - | 270/130 | | mA |
Power factor | λ | λ =P/S | - | 95 | - | % |
Operating Temperature | T | | -20 | 25 | 45 | degree |
Storage Temperature | T | - | -30 | 25 | 60 | degree |
Lumen Output (WW) | lm | XHX-PL6030-30W | - | 2000 | - | lm |
Lumen Output (CW) | lm | XHX-PL6030-30C | - | 2100 | - | lm |
Color Temperature (WW) | CCT | XHX-PL6030-30W | - | 3000 | - | K |
Color Temperature (CW) | CCT | XHX-PL6030-30C | - | 6500 | - | K |
Color Rendering Index | CRI | XHX-PL6030-30W | | 75 | | % |
Prod Model: |
XHX-PL3060-30W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
600*300mm LED Panel |
Input Power: |
30W |
Input Voltage: |
220V |
Color: |
White |
Size: |
600mm*300mm |
Color Temperature: |
2700k~6000k |
Working Temperature: |
-20~55 Centigrade |
Chip: |
Epistar |
Certifiction: |
CE, RoHS |
Application: |
Housing Decoration, Business Using |
Light Source: |
LED |
Emitting Color: |
White |
Dimmable: |
With Dimmable |
Appearance: |
Square |
Type: |
Ceiling |
Base Material: |
Metal |
Certification: |
CE RoHS |
Housing Material: |
Aluminium |
Voltage: |
85-265 |
Beam Angle: |
180 |
Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc
Developing History:
From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.
Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.
LED Display:
Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,
LED Lighting:
LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,
Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.
1, Fully automatic production lines
Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.
2, Advanced production equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3, Many Certification approved to clear up the trade barriers
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.
4, Strong R&D Team
Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service
5): After-Service,
Principles: Response in time, solve problem ASAP and ensure the use.
Period: During warranty period, free of all maintenance charges;
After Warranty, only charge the material cost.
All the life time, Technology support is free.
