The excellent industrial workshop lighting can efficiently provide the users with performance, speed up the task and reduce faults, etc. Meanwhile, it includes the features of increasing comfort and makes the users feel delighted. Hongyuan LVD professional workshop lighting products make our lighting solutions more environment protective and make contributions to energy conservation and emission reduction as well as sustainable development with their excellent light and color effect, no dazzling and long use term, low maintenance.
LVD-GC00006
NO. 03-032

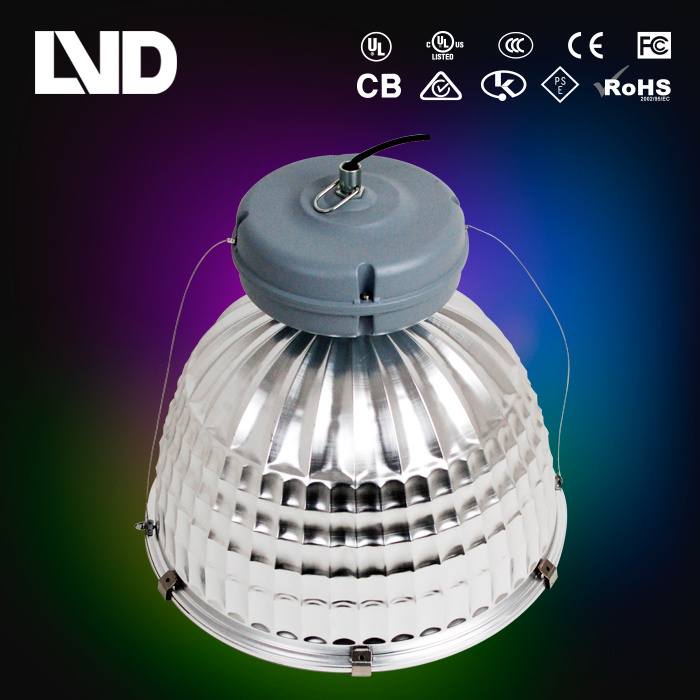

Model: LVD-GC00006
Category: High Bay
Lamp Source: Saturn Series
Size: 585*585*555
Protection Grade: IP54
Weight: 7Kg
Package Dimensions: 655*650*670
Installation Diameter: Derrick
Materials: Adopting pure aluminum reflector, oxide polishing processing, and special angle reflection design greatly strengthen its high luminous efficiency, with the die-cast aluminum electrical box and electrostatic spray surface.
Applications: Industrial factory, warehouse, gym, shopping mall, supermarket and other interior application environment.
Product Features
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
1. Newly-designed best heat dissipation electrical cabinet, electrostatic spraying on the surface, beautiful in appearance
2. Polishing oxidation high pure aluminum reflector, high reflection, stable optical property
3. Toughened glass, high transparency
4. Lamp base is fastened with hoop with high temperature resistant built-in seal ring.
5. Equipped with our Company's Saturn LVD induction lamp; High luminous efficiency, long use-life, excellent color rendering, stable ray and no flash, energy-saving, wide color temperature, soft ray, stable light output, etc.
Successful case
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
About LVD
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
|
Series |
Model |
Nominal Light Flux |
Light Appearance |
Rated Wattage |
|
Saturn |
LVD-TX120W |
9600 |
288x274x95 |
120W |
|
Saturn |
LVD-TX150W |
12000 |
288x274x95 |
150W |
|
Saturn |
LVD-TX200W |
16000 |
334x314x105 |
200W |
|
Saturn |
LVD-TX250W |
20000 |
368x348x105 |
250W |
|
model |
Working voltage |
electric current |
Power Factor |
Operating Temperature |
main frequency |
|
LVD-WJ110-277/60-120DJF |
110-277V |
- |
0.98 |
-40~45ºC |
210khz |
|
LVD-WJ110-277/60-150DJF |
110-277V |
- |
0.98 |
-40~45ºC |
210khz |
|
LVD-WJ110-277/60-200DJF |
110-277V |
- |
0.98 |
-40~45ºC |
210khz |
|
LVD-WJ110-277/60-250DJF |
110-277V |
- |
0.98 |
-40~45ºC |
210khz |
|
LVD-WJ220/50-120DJF |
220V |
0.59 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ220/50-150DJF |
220V |
0.74 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ220/50-200DJF |
220V |
0.98 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ347/60-120DJF |
347V |
0.37 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ347/60-150DJF |
347V |
0.46 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ347/60-200DJF |
347V |
0.62 |
0.98 |
-25-50ºC |
210khz |
|
LVD-WJ220/50-250DJF |
220V |
1.22 |
0.98 |
-25-50ºC |
210khz |
Our company supplys different kinds of products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
