1.Product Introduction
Anodic oxidation tensile reflector;Pc light source seal lens;Single high power LED light source;Meanwell High efficient constant current power.
2. Product Features:
1,Adopt single integrated LED chip as light source which has independent intellectual property rights,the light source design is using special integrate muti-chips a module,use high bright imported led chips, with good heat dissipation , low light depreciation, pure light color, no double-shadow etc.
2,Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of light source and power.
3,The heat sink surface have conducted anodic oxidation anticorrosive process., compact layout and beautiful,corrosion resistant,water proof and dust proof.
4,Apparent energy saving effect, save more than 70% energy compare with sodium lamp.
5,Eco-friendly non-pollution, don't contain pollution elements such as lead and mercury, totally non pollution to environment.
6,Good color rendering.
7,Adopt constant current constant voltage control, apply to wide voltage(AC90-305V), no shaky light, no sound pollution.
8,Excellent adornment effect, use special surface treatment technology, various apparent colors available, easy installation and demolition, wide range of application.
After Sale Service
In normal condition, all of our products are 5-year warranty, and the warranty is base on the circumstance of correct storage, installation, use and maintenance. Any damage cause by the improper usage or product instruction violation will not be count in the warranty scope. Any quality issue happens during the warranty period, we will repair, replace component or new product for you. And we will charge for material and artificial if the issue occurred after warranty period.
Electrical Specification

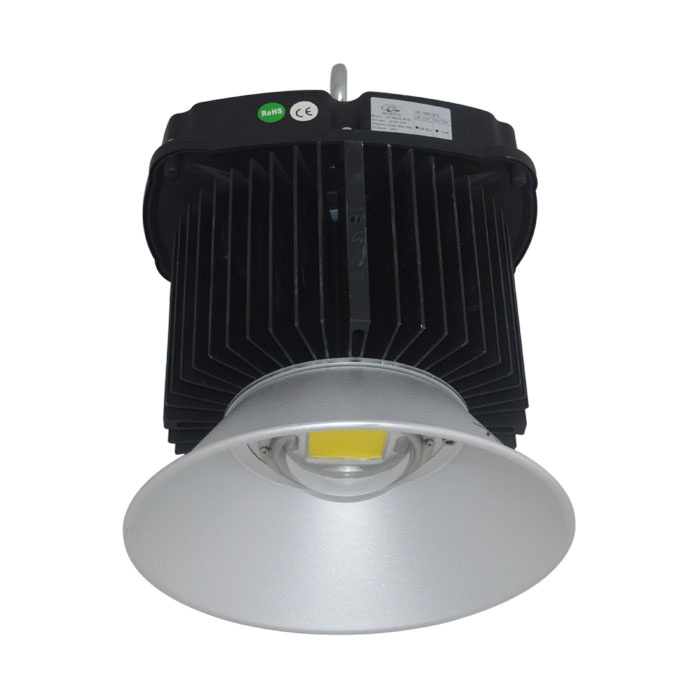

HB-HS250-300W LED
HB-HS250-300W LED High Bay Light Main Technical Parameters |
| Input Voltage | AC90V ~305V | Frequency Range | 50Hz ~ 60Hz |
| Total Harmonic Distortion | ≤12% | Power Factor | >0.96 |
| Power Efficiency | >90% | LED Working Voltage | DC40~ 48V |
| System Consumption | 305±5% | LED | 1 PCS |
| Led Luminous Efficiency | 120LM/W | Led Initial Flux | 29000-32000lm |
| Illumination Uniformity | >0.5 | Lamp's Efficiency | >90% |
| Color Temperature | WW | 3000K ±10% | Color Rendering Index | Ra>75 |
| PW | 5500K ±10% | Light Distribution | cycle |
| CW | 6200K ±10% | Light Design | LED+reflector |
| LED Junction Temperature | <=40ºC | IP Grade | IP65 |
| Working Life-span | 50000H | Power line | 1.5mm2 |
Connect wire | Brown | L | NW | 12.7kg |
| Blue | N | GW(1pcs) | 13.8kg |
| Yellow/Green | G |
Carton size |
290*290*430MM
|
| Storage temperature | -45ºC~+60ºC |
|
NA
|
| The color of the lamp shell | black silver | Certificate | FCC,CE,ROHS,PSE |
Shenzhen HighBay Lighting Technology Limited, located in Guangming New District(the National Semiconductor Lighting Industrialization Base), covering 10, 000 Square meters, with advance equipment and experience staffs in departments of research, development, finished production, aging and testing.
We are a professional manufacturer specializes in LED lighting products and main products include: LED flood light, LED high bay light, LED street light, LED panel light, LED explosion-proof light, LED high-mast light, LED emergency light, LED Down light, etc. Our company originated in 2008, Based on more than 7 years manufacturing experience and more than 20 people teams up for R&D, we highly depend on independent innovation, we had obtained more than 20 patents.
We always keeps the spirit of "Integrity of life, service-oriented". And we have set up a modern quality management system which is in strict accordance with the international standards ISO9001: 2008. And our products have got UL, DLC, PSE, CE, FCC, RoHS &SAA Certificates, Widely used in highways, factories, department stores, stadium, hospitals, schools, gymnasiums, docks and art deco lighting environment. We win the praise from customers worldwide because of energy saving, green & high quality products.
Our Production Capacity
1. LED high bay light 20, 000 PCS
2. LED flood light 30, 000 PCS
3. LED street light 30, 000 PCS
4. LED panel light 150, 000 PCS
5. Other 300, 000 PCS
Our quality objectives: Excellence, customer first, to do the customers want.
