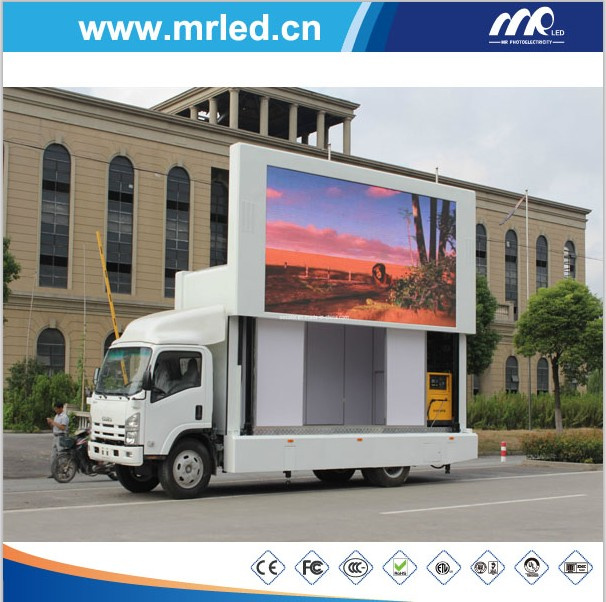

High Waterproof Truck LED Display/LED Display Outdoor
| Price: |
US $ 1000-20000/Square Meter |
| Trade Terms: |
FOB |
| Min Order: |
10/Square Meter |
| Pay Type: |
L/C,T/T,Paypal |
Product name: High Waterproof truck LED display/LED display outdoor
LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display
1. Patented Piranha LED and SMD3535 are used for this model, which guarantee a wide viewing angle(>140° H; >140° W) and a nice flatness appearance. Brightness>5500CD/SQM.
2. Graceful and concise appearence, <0.1mm discrepancy aluminmum die-casting moulding criterion, no deformation; Light weight, slim body; With Protection grade IP65 front and IP54 rear. Suitable for all outdoor working environment.
3. Fast locks at the four sides of the cabinet, easy assembly; And be piled up and be hoisted.
MRLED can provide P10 advertising outdoor full color SMD LED display. It is designed for outdoor video advertising use, the improtant feature for this products is both of waterproof and brightness under sun, Chipshow design are IP65 rate.
Applications
It can be used in many application, such as public locations, commercial advertisement, bank gyms dance clubs, traffic facilities and so on.
|
Item |
Outdoor Die-casting series |
|
Pixel Pitch: |
6.66mm |
8mm(Super Flux) |
8mm |
10mm(Super Flux) |
10mm |
|
Driving Method : |
1/6 |
1/4 |
1/4 |
1/2 |
1/2 |
|
LED type : |
SMD3535 |
DIP5454 |
SMD3535 |
DIP5454 |
SMD3535 |
|
Brightness: |
≥5500cd/m 2 |
|
Pixel density : |
22545pix/m 2 |
15625pix/m 2 |
15625pix/m 2 |
10000pix/m 2 |
10000pix/m 2 |
|
Viewing angle: |
140°H and 120°v |
|
Module Size(W*H): |
320*160mm |
|
Cabinet Size(W*H): |
640*640*50mm |
|
Cabinet weight: |
14.5kg |
|
Cabinet Material: |
Aluminum Die-casting |
|
Avarage Power Consumption: |
200 W/m 2 |
390 W/m 2 |
390 W/m 2 |
520 W/m 2 |
500 W/m 2 |
|
Max Consumption : |
600 W/m 2 |
980W/m 2 |
980W/m |
1250 W/m 2 |
1250 W/m 2 |
|
Refresh rate: |
≥1400HZ |
|
Color Depth: |
14bit |
|
voltage : |
200-240V |
|
IP Rrating: |
IP65(Front)/54(Rear) |
|
Operating temperature : |
-20-60 degree |
|
Storage temperature: |
-40-70 degree |
|
Operation humidity: |
10-90% |
|
Storage humidity: |
10-90% |
|
Life span (hrs): |
≥50000 |
|
MTBF (hrs) : |
≥3500 |
|
Control system: |
Linsn/Nova |
|
Compliant standard: |
N/A |
CE-EMC |
CCC,CE,TUV,RoHS |
| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
ETL, CE, RoHS, CCC, UL |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
300W / m² |
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
