Home LED Light Products High Resolution Full Color P10 Outdoor LED Display

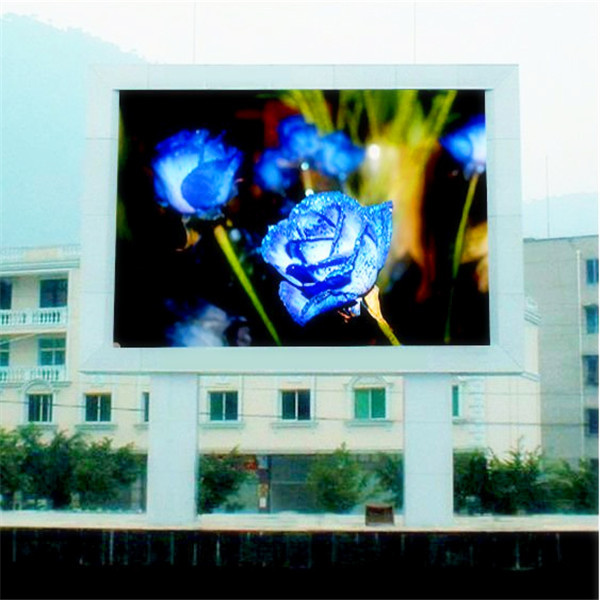

High Resolution Full Color P10 Outdoor LED Display

High Resolution Full Color P10 Outdoor LED Display
Price: US $ 888-1688/Square Meter
Trade Terms: FOB
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Paypal,Western Union
1. Certification: CE, RoHS, UL, SGS
2. Warranty: 7years
3. Support TV, S-Video, DVI, AVI, MOV.
4. High resolution, 10, 000dots/sqm


Description
                                          Technical  parameter
Unit  moduleModule  size160*160mm
Pixel  pitch10mm
Pixel  density10, 000dots/m2
Pixel  configuration1R1G1B
Led  specificationΦ 3ellipse
Pixel  resolutionW: 16dots*H: 16dots
CabinetDimension960mm*960mm*170mm
Quantities  of  module36pcs
Power  supply6pcs
Thermal  dischargeFan*2pcs
Total  weight65kg
Best  viewing  angle10-100m
TemperatureStorage:   -35° C~+85° C
Working:   -35° C~+85° C
Thickness17cm  can  adjustable
Remarks:   cabinet  size  can  changed,   upon  project  need.
PowerWorking  voltageAC220V/110V± 10%
Average  power  consumption300-400W
Max.   Power  consumption≤ 1000W/sqm
Current≤ 20mA(single  LED)
Control  systemCPUPentium4  or  above
Operating  systemWIN98/2000/NT/XP
Control  methodSynchronization
Main  technical  parameterDriving  device1/4scanning
Drive  typeConstant  Current  driver  IC
Refresh  frequency≥ 400Hz
Grey  scale/colors256  levels  of  each  color(R/G/B)/16.7M  color
Brightness  of  white  balanceMore  than  8000cd/sqm
Brightness  adjustment256  levels  of  each  color(R/G/B)by  software
Operating  ambient  humidity10%--95%
Video  signalPAL/NTSC
Control  systemDVI  display  card+full  color  controller  card
MTBF≥ 10, 000hours
Life  span≥ 100, 000hours
FlatnessTolerance  of  interpixel  ≤ 0.3mm
Tolerance  of  modules  clearance≤ 0.6mm
Power  switchAutomatic  switch
Display  mode1024*768
Communication  distanceUnshielded  twisted  pair  net  line  transmission  distance  100m,   max  transmission  distance  200m.
Multi-mode  Optic  fiber  transmission  distance  500m; Single-mode  optic  fiber  transmission  distance  10KM
SoftwareLED  media  player

Prod Model: fox-p10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 160*160mm
Warranty Time: 3-5 Years
Viewing Angle: 120°
Brightness: 8000 Nit as Adjustable
Life Span: ≥ 100, 000hours
Mtbf: ≥ 10, 000hours
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 600W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.

Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.

Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.

With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
