Partner for Guangzhou Asian Games, Shanghai World Expo, Beijing Olympic Games, China-Asian Expo and Boao Asian Forum

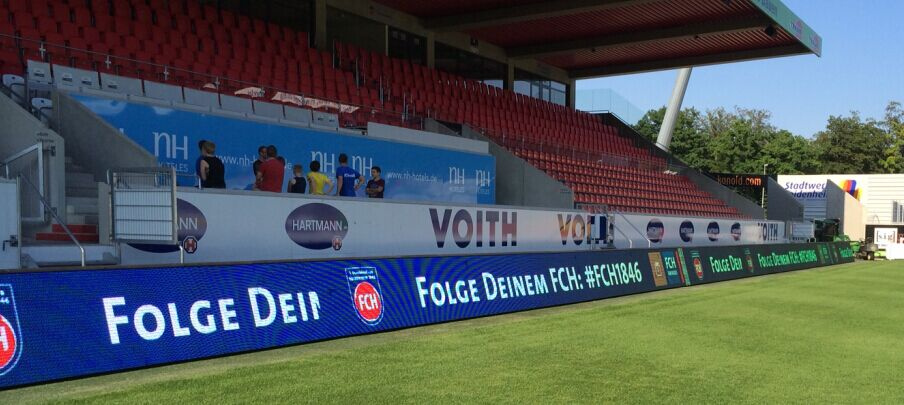

Our LED sports perimeter display have been exported to many European countries for many years,such as Hungary, Belguim,Germany and so on. The customers are always satisfied with consistent quality and fantasy effect .
Features:
1.Retractable angle-adjustable bracket makes cabinet stackable.
2.Rubber mask reduces impact.
P16 outdoor full-color high-contrast LED display |
| Item | Details | Parameters |
| Physical | 16mm |
| Pixel | Pixel Configuration | 1R1G1B |
| Chip | Wave | Brightness | Packaging |
| R | Epistar | 625nm | 1200mcd | Thru-hole346 |
| G | Silan | 520nm | 2400mcd | Thru-hole346 |
| B | Silan | 470nm | 600mcd | Thru-hole346 |
| Module | Module resolution | 16*16 pixels |
|
| Module size | 256*256mm |
| Cabinet | Physical resolution | 64*64 pixels |
| Cabinet Size | 1024*1024mm |
| Phisical Density | 4096pixels/cabinet |
| Module quantity | 24pcs=4(w)*4(h) |
| Material | steel or aluminum |
| Weight | 50kG or 43kg. Approx |
| Power supply(5V40A) Quantity | 4pcs |
| Average power consumption | 360W/cabinet |
| Max power consumption | 900W/cabinet |
| Electricity Parameter | Brightness | 10000nits |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| color processing | 16 bits |
| Display color | 281 trillions |
| Color temperature(k) | 7200k |
| Physical density | 3906 pixels/m ² |
| Whole display flatness | ≤1.2mm Juncture |
| Best view distance | 9-65m |
| Best viewing angle | v≥120° H≥50° |
| Storage temperature | -40°C-+60°C |
| Working temerature | -20°C-+60°C |
| Driving Method | Constant driving current Scan: static |
| Refresh frequency | up to 4800Hz |
| Frame rate | 25-75Hz |
| Humidity(RH) | 10%-90% |
| protection grade | Front IP65, Rear IP54 if not specified |
| Wording voltage | DC 5V |
| Power supply | AV 110V ± 10% /220V± 10% |
| Average power consumption | 440W/ m² |
| Max power consumption | 1100W/ m² |
| MTBF | 10,000 hours |
| Screen lifetime | 100,000 hours |
| Control System | Control System | Linsn |
| Signal Interface | DVI |
| Communication distance | CAT 5 cable:≤100m Fiber cable:≥ 500m |
| Signal transfer mode | dot to dot synchronized with computer monitor |
