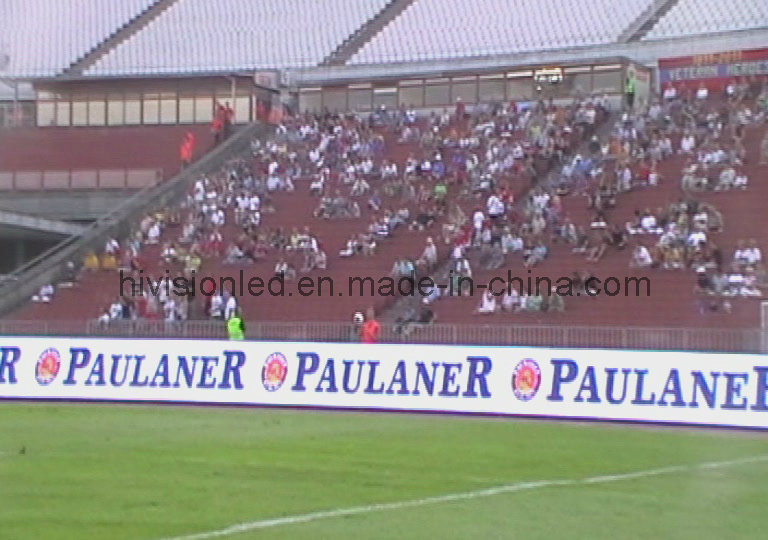

High Quality Sport Perimeter LED Display

Name: High Quality Sport Perimeter LED Display
Brand: yourledlight.com
SKU: 685615912
Availability: InStock
Rating: 4.6 (59 reviews)

Price:	US $ 950-1000/Square Meter
Trade Terms:	FOB,CFR
Min Order:	1/Square Meter
Pay Type:	T/T

Contact Supplier

Guilin Hivision Technology Co., Ltd.

Showroom Product Company Profile

· Smaller lighter modules (making them ideal for stacking) · Soft rubber mask (facia) durable during impact · Quick fix stabiliser (simple action) · Special plastic coated hinges · Simple connectivity less cables required · Corrosion resistant coatings (extreme weather conditions) · Special interlocking cables do not pop off during impact · Upgraded conformal coatings (extreme weatherproof) · Improved air circulation cooling within the housing · Improved control system and fibre data connections · Third generation software upgraded features and user friendly interface Partner for Guangzhou Asian Games, Shanghai World Expo, Beijing Olympic Games, China-Asian Expo and Boao Asian Forum.

P16 outdoor full-color high-contrast LED display
Item	Details	Parameters
	Physical	16mm
Pixel	Pixel Configuration	1R1G1B		Chip	Wave	Brightness	Packaging
			R	Epistar	625nm	1200mcd	Thru-hole346
			G	Silan	520nm	2400mcd	Thru-hole346
			B	Silan	470nm	600mcd	Thru-hole346
Module	Module resolution	16*16 pixels
	Module size	256*256mm
Cabinet	Physical resolution	64*48 pixels
	Cabinet Size	1024*768mm
	Phisical Density	3072 pixels/cabinet
	Module quantity	24pcs=4(w)*3(h)
	Material	steel or aluminum
	Weight	50kg or 42kg. Approx
	Power supply(5V40A) Quantity	5pcs
	Average power consumption	360W/cabinet
	Max power consumption	900W/cabinet
Electricity Parameter	Brightness	7500nits
	Brightness adjusted	100 grade by software or by Auto-optic induced
	color processing	8 bits
	Display color	16M
	Color temperature(k)	7200k
	Physical density	3906 pixels/m ²
	Whole display flatness	≤1.2mm Juncture
	Best view distance	9-65m
	Best viewing angle	v≥120° H≥50°
	Storage temperature	-40°C-+60°C
	Working temerature	-30°C-+60°C
	Driving Method	Constant driving current Scan: static
	Refresh frequency	>300Hz
	Frame rate	75Hz
	Humidity(RH)	10%-90%
	protection grade	Front IP65, Rear IP54 if not specified
	Wording voltage	DC 5V
	Power supply	AV 110V ± 10% /220V± 10%
	Average power consumption	440W/ m²
	Max power consumption	1100W/ m²
	MTBF	10,000 hours
	Screen lifetime	100,000 hours
Control System	Control System	Linsn
	Signal Interface	DVI
	Communication distance	CAT 5 cable:≤100m Fiber cable:≥ 500m
	Signal transfer mode	dot to dot synchronized with computer monitor

Prod Model:	P16 full-color
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Custom Made
Control System:	Asynchronous or Synchronous
Warranty:	2 Years Warranty
Technical Support:	Life Long Technical Support
Training:	in House Factory Training or on Site Training
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Pixel Pitch:	16mm
Display Function:	Video Display
Scanning Mode:	Static Scan
Certification:	UL
Pixel Density:	3906pixels/M2
Average Power Consumption:	440W/M2

About Hivision

Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.

Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.

Why choose Hivisi?

In-house LED package ability

We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.

Three-step QC process with 1st class inspection equipments

Our strict QC process involves 3-step:

1. Incoming Quality Assurance -BOM

2. Inspection Process Quality Control -Producing

3. Final Quality Assurance - Finished product

Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.

Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.

Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.

Aftersales service

When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.

Technical support

Free training for operation, maintenance and trouble shooting before the shipment in factory

Life-long free Technical support through Skype and Teamviewer (remote operating your computer).

We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
