High quality SCOB LED AR111 /cob led spotlight
1.Type: AR111 SCOB 12W Led SpotLight
2.Material:Aluminium alloy
3.Power:12W
4.Supply Voltage:12VAC
5.Dimensions: Φ111*H66.5MM
6.color rendering index (Ra):> 80
7.Color temperature:2700-5500k
8.Brightness:680LM
9.Beam Angle:24/40 degree
10.Approval: CE&RoHS,FCC
11.Warranty:3 years

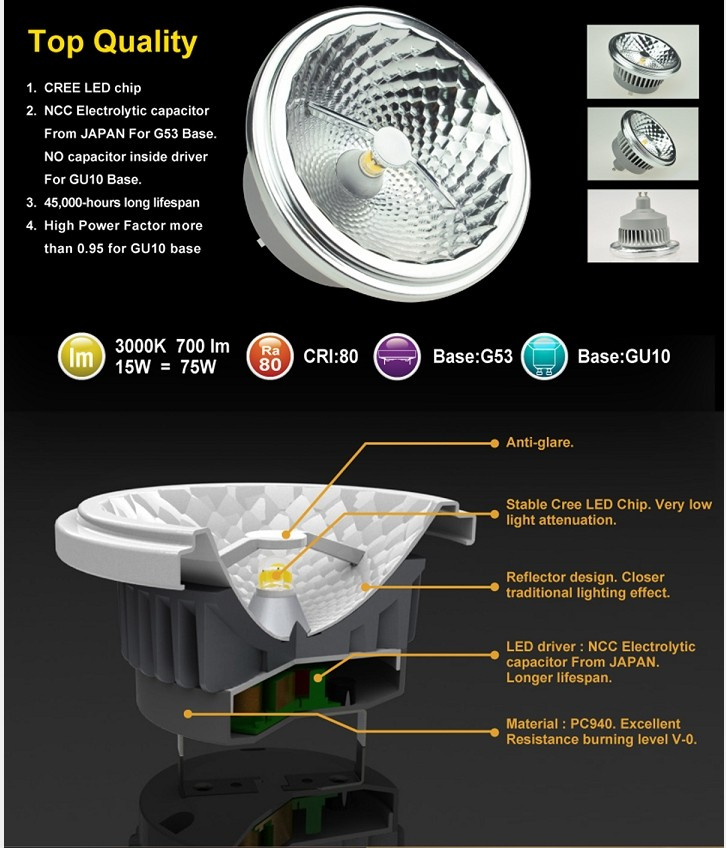

Specification:1. Adopt patented SCOB light source (stereoscopic chip on board).
2.Unique design makes it different from existing LED Bulbs of public mould.
3. Optically designed reflector keeps the same appearance and light distribution with traditional halogen lamp, which is easily accepted by users.
4.Long lifetime 45000Hrs(Calculated as 8 hours per day, average lifespan 10 years above).
5. No IR- and UV radiation.
6. Directly replace 75W metal halogen lamp, saving at least 80% energy.
7. CE and RoHS obtained.

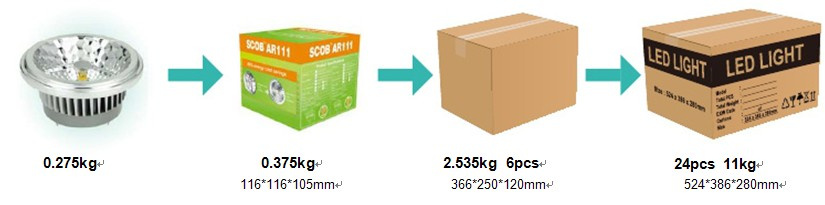

Package of AR111 LED Spotlight
Part number |
Specification |
Lumens |
Dimension |
Input Voltage |
SU-AR111-12-G53-CW/WW |
1. 12W SCOB LED AR111
2. G53 base
3. CREE Chip
4. Beam Angle: 24 or 40 |
500lm( 2700K)
540lm(3000K)
580lm( 4000K)
600lm( 5500K) |
111*H66.5mm |
12V AC/DC |
SU-AR111-12-G53-ED-CWW-D |
1. 12W SCOB AR111
2. G53 base
3. CREE Chip
4. Beam angle:24°/40°
5. With External Driver |
500lm(2700K)
540lm(3000K)
580lm(4000K)
600lm(5500K) |
Φ111*H66.5MM |
85-265V AC |
SU-AR111-12-GU10-CW/CWW |
1. 12W SCOB AR111
2. GU10 base
3. CREE Chip
4. Beam angle:24°/40° |
550lm(2700K)
580lm(3000K)
600lm(4000K)
620lm(5500K) |
Φ111*H94MM |
85-265V AC |
SU-AR111-15-G53-CW/CWW |
1. 15W SCOB AR111
2. G53 base
3. CREE Chip
4. Beam angle:24°/40° |
680lm(2700K)
700lm(3000K)
730lm(4000K)
750lm(5500K) |
Φ111*H66.5MM |
12V AC/DC |
SU-AR111-15-G53-ED-CWW-D |
1. 15W SCOB AR111
2. G53 base
3. CREE Chip
4. Beam angle:24°/40°
5. With External Driver |
680lm(2700K)
700lm(3000K)
730lm(4000K)
750lm(5500K) |
Φ111*H66.5MM |
85-265V AC |
SU-AR111-15-GU10-CW/CWW |
1. 15W SCOB AR111
2. GU10 base
3. CREE Chip
4. Beam angle:24°/40° |
680lm(2700K)
700lm(3000K)
730lm(4000K)
750lm(5500K) |
Φ111*H94MM |
85-265V AC |
