Product features:

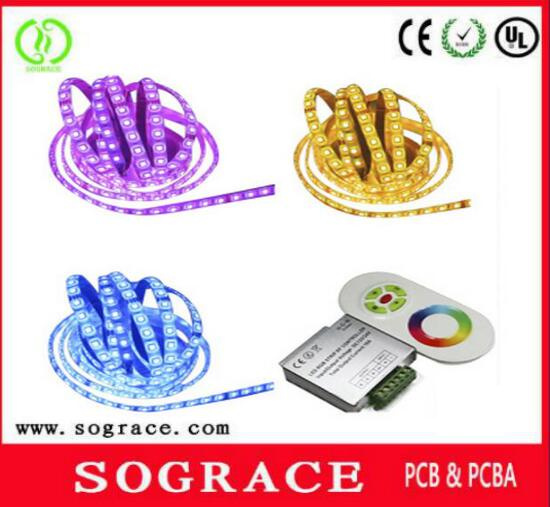

LED Flexible Strip light 12V SMD3528/5050
1. The thickness of the wires should be adopted based on the possible maximum current, length of wires(5m in maximum is recommended)and the loss in the wires during transit at low voltage.
2. Two ends of connection should be done as waterproof.
3. No touch in static, no work in electricity.
4. The maximum length is 5m, no exceeding in connection.
5. Power supply is recommended(with short circuit protection, high voltage and power load protection).
6. It can be cut at the mark of the connection and there will be no affect to its function.
Parameters:
Operarting voltage: DC12V
Wattage: Max12W /m
LED quantity (PCS): 60 PCS/m
Color: Red/ yellow/ warm white / white / cool white / green / blue
IP grade: IP64
FPCB: Single side 3 OZ
Applications:
LED flexible strip with flexible and diversity of color, widely used in decoration of house, hotel, building, ball, plaza and so on.
Logistics:
DHL, TNT, UPS, FEDEX, EMS, SF are available
Related products:
2835, 3528, 5050RGB type led strips and led modules are available
Looking forward to meeting you in our factory!
About company:
Sogcrace, established in June, 2006, is a professional PCB manufacturer for producing all kinds of single side, double-side and multilayer pcb, and as well as assembly service.
Is located in Baoan District, Shenzhen, China, where is very close to shenzhen and Hong Kong ports. Having a variety of advanced production equipment, excellent engineering and technical personnel, Sograce accompany with the mature management and service system
Since establishment, we have been constantly improving all kinds of equipments and advanced techniques, striving to develop and produce pcb and pcba which are used for high-tech products, such as LED, communication, network, electric power, industrial control, medical treatment, instrumentation, military projects and computer peripheral products ect.
Now, Try our service!
| Technical Capacity |
| Layer Counts | 1-28L | Min Board Thickness(2-layer) | 0.2mm |
| Max board size(mm) | 1200x400mm | Min Board Thickness(4-layer) | 0.4mm |
| Max copper | 12oz | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.075mm | Min Pad Ring | 0.1mm |
| Min Clearance | 0.075mm | Min Hole Location Tolerance | ± 0.075mm |
| Min Hole Size(laser hole) | 0.1mm | Min Hole Size Tolerance | ± 0.05mm |
| Board Twist | ≤ 1° | Min Outer Dimension Tolerance | ± 0.1mm |
| Base Material | FR4, High-TG FR4, CEM3, aluminum, High Frequency(Rogers, Taconic, Aron, PTFE, F4B) |
| Surface Finish | HAL, lead-free HAL, ENIG, Plated Gold, Immersion Gold, OSP |
| Soldermask | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
| Silkscreen | White, Black, Blue, Yellow |
| Acceptable File Format | Gerber file, Powerpcb, CAD, AUTOCAD, ORCAD, P-CAD, CAM-350, CAM2000 |
| Certificate | ROSH, ISO9001, UL |
Standard
Lead Time |
|
Your inquiry will be answered within 24 hours.
Wishing to be your long-term partner, please feel free to contact us , we will do our best for you.
|
Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, double-side and multilayer PCB, and as well as assembly service.
Established in June, 2006, our factory is located in Wanxia Industrial zone, Xinhe Road, Shajing Town, Baoan district, Shenzhen, China. We have a variety of advanced production equipment, excellent engineering and technical personnel, accompanying with the mature management and service system. Since 2006, we have successfully serviced customers in the United States, Canada, Western Europe and other regions of the world spanning many applications, business lines, and industry sectors.
Since establishment, we have been constantly improving all kinds of equipments and advanced techniques, striving to develop and produce PCB and PCBA which are used for high-tech products, such as LED, communication, network, electric power, industrial control, medical treatment, instrumentation, military projects and computer peripheral products ect.
Our products meet IEC\IPC\DIN\MIN standard, and behave ISO-9001 quality system, UL and RoHS certificate. Fast lead time and competitive price with high quality are our advantages. Production capacity is 20, 000M2 per month, the PCB lead time is within 10days, and most can be within 7days. We also established a prototype team to meet customer' S prototype needs, and the prototype lead time often can be within 3days.
With our hard work, we always satisfy the customers' High quality demand in a fast lead time under our strict management...Following the principle of "be sincere with every customer", we treat the product quality as our life. We are glad to provide you one-stop services from schematic capture and routing, PCB producing to SMT.
"High quality, Competitive price and Excellent service" is our mission which also wins the customers' Trust. Our purpose is to produce the most effective product under the advisable cost. All our consideration is built on customers' Benefit, and we benefit mutually from the business cooperation. Basing on this point, we have built a long term business relationship with lots of customers around the world, just like a blooming flowers. Warmly welcome more customers to visit and cooperate with us!
