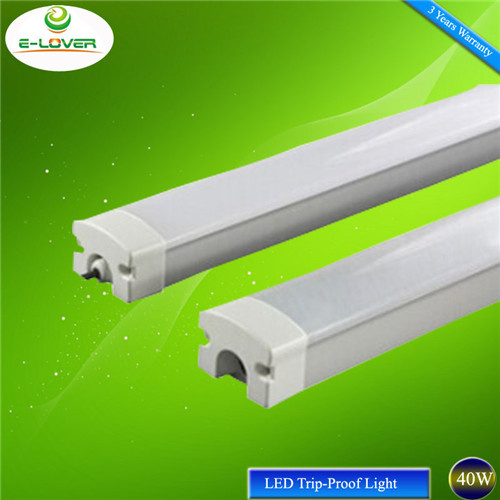

High Quality Energy Saving Led Tri Proof Light
1. Product Details
A. Parameters of 40w tri-proof led light:
Item Type | Led Tri-Proof Tube Light |
Model Number | EL-TP1EN-40W |
Input Voltage | AC85~265V; 50/60HZ |
Input Power | 40W |
Power Factor | ≥0.9 |
Luminous Flux | 3800 LM |
LED Quantitys | 240PCS |
Life Time | 50000H |
LED Color | Warm White/Warm white /Cool white |
CRI | Ra≥70 |
Protection Level | IP65 |
Temperature | -20°C~+50 °C |
Size | 89.6×73.5 ×900 |
B. Basic Specification
Model No. | EL-TP1EN30W | EL-TP1EN40W | EL-TP1EN60W | EL-TP1EN80W |
Chips | Epistar | Epistar | Epistar | Epistar |
LEDs | 144PCS | 240PCS | 288PCS | 432PCS |
CCT | 3000K 4000K 6000K | 3000K 4000K 6000K | 3000K 4000K 6000K | 3000K 4000K 6000K |
Lumens | 2700lm 2850lm 3000lm | 3600lm 3800lm 4000lm | 5400lm 5700lm 6000lm | 7200lm 7600lm 8000lm |
Driver | Normal | Normal | Normal | Normal |
Size(mm) | 89.6*73.5*600 | 89.6*73.5*900 | 89.6*73.5*1200 | 89.6*73.5*1500 |
IP Rating | IP65 | IP65 | IP65 | IP65 |
Power | 30W | 40W | 60W | 80W |
Input Voltage | AC85-265V | AC85-265V | AC85-265V | AC85-265V |
Power Factor | 0.9 | 0.9 | 0.9 | 0.9 |
CRI | 80/70 | 80/70 | 80/70 | 80/70 |
Beam Angle | 120° | 120° | 120° | 120° |
Material | Aluminium | Aluminium | Aluminium | Aluminium |
Unit Weight | 2.3KG | 2.8KG | 3.9KG | 4.9KG |
Cable | 0.5 | 0.5 | 0.5 | 0.5 |
Certificate | NCE | NCE | NCE | NCE |
2.Features of LED Tri-proof light
( 1 ). IP65 water-proof, dust-proof and anti-explosion.
( 2 ). Approved standards: CE, RoHS
( 3 ). AC85-265V wide range voltage input, built-in power supply and compliance with EMC standards
( 4 ). LED by Taiwan high quality chip packaging, efficient energy saving 70%
( 5 ). Lamp housing is made of aluminium, cover is made of PC materials, with high heat resistance and good toughness, high impact.
( 6 ). Lamp cover high degree of light transmission, maximum efficacy and minimum glare
( 7 ). High stability isolated driver
( 8 ). Constant current driver with unique technology, well brand IC, Japan Rubycon, longer lifetime than common ones.
( 9 ). High elastic rubber ring seal between the cover and the lamp body, stainless steel buckles, protection rating IP65
(10). No RF interference, radiation-free, low power consumption, high strength, maintenance-free, easy to install.
(11). 3 year warranty
3. Applications:
( 1 ). Stations: MTR station, Train station, Bus station, Gas station.
( 2 ). Airport, Factory and Warehouse, Free workshop, Food processing Line.
( 3 ). Exhibition lighting or home illumination.
( 4 ). Lighting projects, kitchen, banks, hotels, schools, offices, hospital, packing lot.
( 5 ). Bookstores, Gymnasium, supermarket, swimming pool and public places etc.
4. Package
Part Number | Outer CartonSize[mm] | Qty/Carton[pcs] | Gross Weight[Kg] | Unit Weight[Kg] |
EL-TP1EN-30W | 645×250×210 | 6 | 16.1 | 2.3 |
EL-TP1EN-40W | 950×260×210 | 6 | 19.6 | 2.8 |
EL-TP1EN-60W | 1250×170×210 | 4 | 17 | 3.4 |
EL-TP1EN-80W | 1550×180×210 | 4 | 19.5 | 3.9 |
5. Trade terms
A. Payment Terms:
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
B. Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
C. Warranty:
3 years warranty
D. Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3- 5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5- 7 days for delivery
3.By Sea: the most economic shipping method, but cost longer shipping time; large quantity , heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
E.After-sale Service:
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering.
F. Additional Information
Payment Terms | L/C, T/T, Western Union, Paypal |
---|
Minimum Order | 10pcs |
---|
Lead Time / Delivery Time | 10 Day(s) |
---|
Sample Available | YES |
---|
Delivery Details | 1. Samples: 3-7 working days;2. Bulk order: Less than 200pcs, 7-15 working days. More than 200pcs, 20-25 working days |
---|
FOB Port | Shenzhen, |
---|
Loading Info | T/T 30% deposit before producing,The balance paid before shipment |
---|
Packing Info | 2pcs/carton, 735*375*355mm, G.W:24.5kg |
---|
Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
---|
