High Brightness Epistar SMD2835 8w; CRI>80, PF<0.9; Isolated driver; 140 beam angle degree;
Product Description

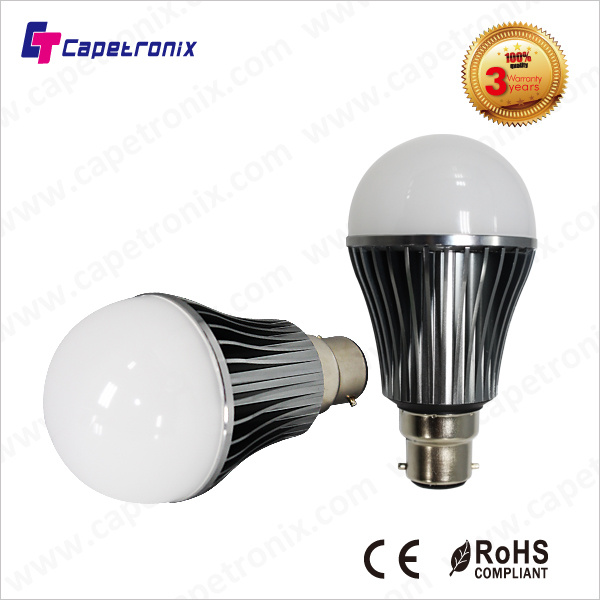

1. The globe bulb 8w is made of 6063 alluminum and Imported optical grade PC, and has unique appearance.
2. The globe bulb has high efficiency, up to 80 lm/w.
3. It tested at 4000V to ensure its high quality.
4. The design of the driver is isolated single-ended and the driver has good surge capacity, which has been produced by ourselves.
Features
-Ultra energy efficient, replaces up to 50-60W incandescent/Halogen lamps;
-Good heat dissipation with professional designed aluminum Alloy housing;
-Anti-glare, giving visual comfort;
-Isolating circuit design, safety and reliability;
-Solid-state, no start-up delay.
-No mercury, less CO emission, eco-friendly to the environment;
-No UV, No IR;
-Better thermal management, no heat damage;
-Easily installed into standard fixture;
-Longevity of service and minimal maintenance;
-Standard warranty: 3 years;
-Life span: 50, 000 hours;
-Base: E27/B22.
-Color temperature: Cool White: 5500-6000K; Pure White: 4000-4500Kl; Warm White: 2800-3200K.
-Safety: CE, RoHS, TUV;
-Working Voltage: Low Voltage: AC100-120V, 60Hz; High Voltage: AC200-240V, 50Hz
Appliction
-Illumination lighting for homes, offices, restaurants, hotels, malls, buses, trains, warehouses, parking lots etc.
-Task lighting for cabinets, cupboards etc in your homes, restaurants, and kitchens or any other places where accent lighting is required.
-Display lighting for the articles in your stores and shops.
-Back lighting for square billboards or advertisement boards.
Factory Profile
1. Capetronix Ltd. Was founded in 2010, which is a leading manufactory on the indoor LED illumination, currently there are over 100 employees and a fabrication are of more than 2500 square meters.
2. Capetronix just focus on the LED tubes, LED bulbs, LED spots light, we desigh and manufacture, all of our products have 3 years warranty(tubes have 5 years warranty).
3. Good quality, every product undergoes multiple QC stages to ensure optimum performance and functionality.
4. Advanced and professional equipments are utilized to aid LED assemblies of LED tubes, array and various luminaire.
5. The equipments include SMT assembly, auto soldering lines, opto-electrical test devices, light and potical distribution analysis devices and so on.
Service
1. Our goal is to help customers solve problems, to provide them with satisfactory products.
2. Fast deilvery: For samples 3-5 working day. For bulk order: 7-10 working days.
3. Sample service is OK, but also we can help customers design or customize the products they want.
4. Professional sales team, engineer team, and good after-sales service. For any inquiries, we will give you the most professional answer within 24 hours.
Packing
1pcs in one inner box(white box, color box, blister packaging), 50 pcs inner boxes in one carton. We can also do the packing according to your specific needs or sprayed with your own logo.
Delivery
Samples for 3-5 working days, bulk order for 7-10 working days.
|
Model Number |
Color Temperature
K |
LED Type
SMD |
Dimension mm |
Lumen Output
LM |
Voltage
V |
Power Consumption
W |
Beam Angle
degree |
|
ALB22T-55B08NE3-304 |
5500-6000 |
2835 |
60*114.8 |
622 |
100-240 |
8 |
140 |
|
ALB22T-41B08NE3-304 |
4000-4500 |
2835 |
590 |
|
ALB22T-30B08NE3-304 |
2800-3200 |
2835 |
541 |
Capetronix Ltd. was founded in 2010. Which is a leading manufactory on the indoor LED illumination. Currently there are over 100 employees and a fabrication area of more than 2, 500 square meters.
Capetronix main market is America, Europe; Of course we also have customers all over the world. Capetronix just focus on the LED tubes, LED bulbs, LED spots light, we design and manufacture, all of our products have 3 years warranty,
High-grade materials and state-of-the-art equipment such as auto soldering and SMT assembly lines are utilized throughout the manufacturing process of each of our products, which include LED tubes, LED spots, LED bulbs. The entire production process is supervised by professional personnel; Every product undergoes multiple QC stages to ensure optimum performance and functionality and is CE certified as well as RoHS compliant. Meanwhile our LED tubes has passed ETL certification, the LED spots has got GS certification.
We have a powerful R&D team, each month we have the products come out, and we also offer OEM &ODM sevice. Each one of our designs strictly follows the UL and EU electrical safety standards. Each lamp will pass the Chinese Government high voltages test. In most cases prototypes of custom designs can be submitted to customers in only 3 days.
Our excellent international sales and after-sales team will give the best service to our customers. All the email will reply in 36hours.
Focus makes perfect. Profession makes value.
