1.Technical Parameters(Test Conditions 25ºC):
| Model No. | EBH-7W-H | EBH-7W-W | SBH-14W | RBH-7W-H | RBH-14W-W |
CCT@ Lumen
Output (lm) | 2700K-6000K |
| 490 | 533 | 1140 | 562 | 1148 |
| Certificate | CE-LVD EMC ROSH GS CB SAA C-TICK etc. |
| Power(W±10%) | 7W | 7W | 14W | 7W | 14W |
LED
No./Spec.(SMD) | 48PCS | 48PCS | 96PCS | 48PCS | 96PCS |
| Input Voltage(V) | AC100-240V/277V, 50/60Hz |
| CRI | 80 |
| Beam Angle(°) | 120 |
Operating
Ambient
Temperature(ºC) | -20ºC~40ºC |
| Driver Type | EAGLERISE |
Operating
Humidity(ºC) | 10%-90% |
| Warranty | Up to 3 Years |
| IP | IP66 |
| IK | IK10 |
| GLOW WIRE TEST | Pass 850ºC |
| Material | Polycarbonate material |
| Net Weight(kg) | 0.63 | 1.02 | 0.92 | 0.93 |
| Product Size(mm) | 290*200*95 | 288*288*88 | φ301*95 |

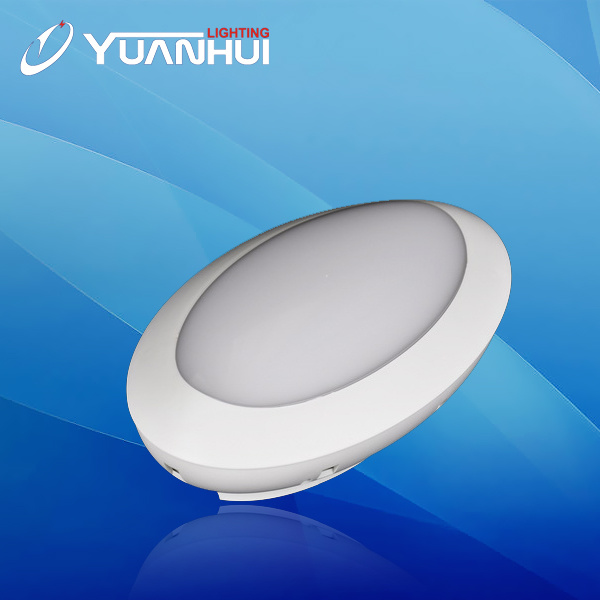

2.Product Description:
1.Input Voltage: AC100-240V/277V, 50/60Hz.
2.IP Rating: IP66, Class: II.
3.Housing, Diffuser: Polycarbonate material, high impact resistant, IK0, GLOW wire test 850degrees.
4.Color option: Black, Grey, White.
5.High temperature resistant PCB for SMD LED.
6.Natural silicon gel gasket, ensure waterproof and dustproof.
7.Easy and quick installation under ceiling or wall-mounted.
8.Life time: >35,000 hours.
9.It could be fitted with sensor and emergency function.
3.Applications:
Suitable for corridor, undergroud parking, basement, warehouse, etc.
