Product Description

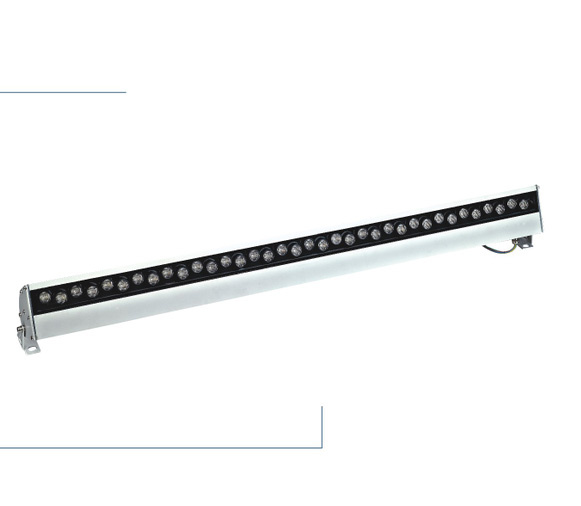

Architecture and Landscape Lighting / 24*1W LED Wall Washer
SLX-27 is made by 24 PCS of high power LED with super brightness and low power consumption. Consist of 24PCS LED. Color changing, strobe, chasing from Pixel to Pixel, speed adjustment, etc. RGBW color mixing, HIS color mixing, over 16 million colors. Very good for TV center, stage, events, disco bar, home party, club, etc.
Specification
1. Light source: 24PCS*1W good saturation; White=6500K, Ra>85, Perfect color rendering
2. Light Output: 400 Lumens
3. Beam angle: 25°
4. Control signal: DMX512
5. Control mode: Stand alone/master and slave
6. Chanel option: 5, 9, 16 CH
7. Housing material: Tensile aluminum
8. Housing color: White/black/silver.
9. Protection rate: IP65
10. Power input: AC100-240V (47-63Hz)
11. Max power consumption: 50W
12. Weight: 3.64KG
13. Size: 1000*58.5*90mm
Features:
High power LEDs 1W each
Flicker free, with strobe/gradual change/color change/water effect inbuilt programs;
Switch power, good for LED working.
Protection rate: IP65
5/9/16 DMX channels options.
With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.
|
Size (mm) |
Working voltage |
Wattage |
Light color |
control mode |
LED chip (PCS*W) |
Beam angle (°) |
Item No. |
|
|
1000*58.5*90mm |
DC24V |
46W |
RGB |
DMX |
36*1W |
25/45/60 |
SLX-27-36W-X-RGB-D-D24 |
|
|
46W |
W |
DMX |
36*1W |
25/45/60 |
SLX-27-36W-X-W-D-D24 |
|
|
46W |
S |
DMX |
36*1W |
25/45/60 |
SLX-27-36W-X-S-D-D24 |
|
|
30W |
RGB |
DMX |
24*1W |
25/45/60 |
SLX-27-24W-X-RGB-D-D24 |
|
|
30W |
W |
DMX |
24*1W |
25/45/60 |
SLX-27-24W-X-W-D-D24 |
|
|
30W |
S |
DMX |
24*1W |
25/45/60 |
SLX-27-24W-X-S-D-D24 |
|
|
23W |
RGB |
DMX |
18*1W |
25/45/60 |
SLX-27-18W-X-RGB-D-D24 |
|
|
23W |
W |
DMX |
18*1W |
25/45/60 |
SLX-27-18W-X-W-D-D24 |
|
|
23W |
S |
DMX |
18*1W |
25/45/60 |
SLX-27-18W-X-S-D-D24 |
|
|
|
|
46W |
RGB |
NC |
36*1W |
25/45/60 |
SLX-27-36W-X-RGB-N-D24 |
|
|
46W |
W |
NC |
36*1W |
25/45/60 |
SLX-27-36W-X-W-N-D24 |
|
|
46W |
S |
NC |
36*1W |
25/45/60 |
SLX-27-36W-X-S-N-D24 |
|
|
30W |
RGB |
NC |
24*1W |
25/45/60 |
SLX-27-24W-X-RGB-N-D24 |
|
|
30W |
W |
NC |
24*1W |
25/45/60 |
SLX-27-24W-X-W-N-D24 |
|
|
30W |
S |
NC |
24*1W |
25/45/60 |
SLX-27-24W-X-S-N-D24 |
|
|
23W |
RGB |
NC |
18*1W |
25/45/60 |
SLX-27-18W-X-RGB-N-D24 |
|
|
23W |
W |
NC |
18*1W |
25/45/60 |
SLX-27-18W-X-W-N-D24 |
|
|
23W |
S |
NC |
18*1W |
25/45/60 |
SLX-27-18W-X-S-N-D24 |
|
|
|
|
AC220V |
57W |
RGB |
DMX |
36*1W |
25/45/60 |
SLX-27-36W-X-RGB-D-A220 |
|
|
57W |
W |
DMX |
36*1W |
25/45/60 |
SLX-27-36W-X-W-D-A220 |
|
|
57W |
S |
DMX |
36*1W |
25/45/60 |
SLX-27-36W-X-S-D-A220 |
|
|
38W |
RGB |
DMX |
24*1W |
25/45/60 |
SLX-27-24W-X-RGB-D-A220 |
|
|
38W |
W |
DMX |
24*1W |
25/45/60 |
SLX-27-24W-X-W-D-A220 |
|
|
38W |
S |
DMX |
24*1W |
25/45/60 |
SLX-27-24W-X-S-D-A220 |
|
|
28W |
RGB |
DMX |
18*1W |
25/45/60 |
SLX-27-18W-X-RGB-D-A220 |
|
|
28W |
W |
DMX |
18*1W |
25/45/60 |
SLX-27-18W-X-W-D-A220 |
|
|
28W |
S |
DMX |
18*1W |
25/45/60 |
SLX-27-18W-X-S-D-A220 |
|
|
57W |
W |
NC |
36*1W |
25/45/60 |
SLX-27-36W-X-W-D-A220 |
|
|
57W |
S |
NC |
36*1W |
25/45/60 |
SLX-27-36W-X-S-D-A220 |
|
|
38W |
W |
NC |
24*1W |
25/45/60 |
SLX-27-24W-X-W-D-A220 |
|
|
38W |
S |
NC |
24*1W |
25/45/60 |
SLX-27-24W-X-S-D-A220 |
|
|
28W |
W |
NC |
18*1W |
25/45/60 |
SLX-27-18W-X-W-D-A220 |
|
|
28W |
S |
NC |
18*1W |
25/45/60 |
SLX-27-18W-X-S-D-A220 |
|
|
|
