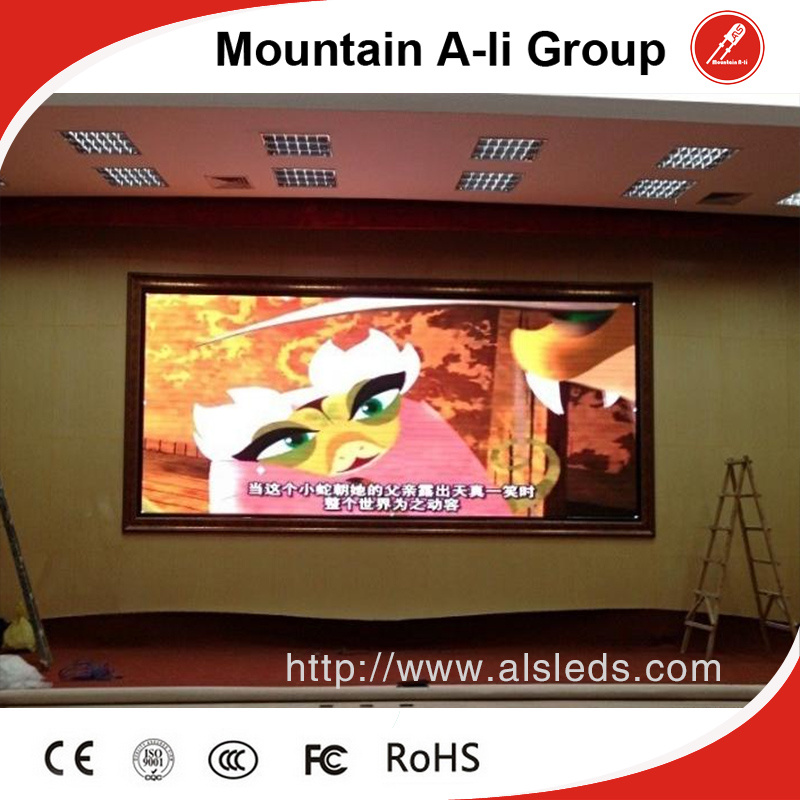

High Precision Indoor LED Display Video P5
Product Features
Light weight, colors can be customized
Aluminum design, good heat dissipation, no fans, no noise
Assembling high precision, gap control 0.2mm
The cabinet size based on the module size by user-friendly design
Quick disassembly module need only 10s, convenient replacement and maintenance modules
Rugged cabinet structure
Using Range
Widely used in large venue, stadiums, bank, government,
Terminal, dock, station, stock market, medical systems,
Electricity, exhibition etc.
| Item | Parameter |
| Product model | P5-16S | P5-8S |
| Module size | 320mm*160mm | 160mm*160mm |
| Pixel pitch | 5mm |
|
| Pixel density | 40000dots/m2 |
|
| Pixel configuration | smd 3in1 |
|
| Module resolution | 32dots(W)*32dots(H) |
|
| Maximum power consumption | 25W | 20W |
| Module thickness | 14.27mm |
|
| Module weight | 0.21kg |
|
| Driving method | Constant current driving |
|
| Scan mode | 1/16 scan | 1/8 scan |
| Interface type | HUB75-A |
|
| Brightness | ≥16 00cd/m2 | ≥2800cd/m2 |
| The specifications of cabinet |
|
|
| Cabinet size | 640mm*640mm |
|
| Module quantity | 16pcs |
|
| Power supply | 5V/40A *2pcs |
|
| Cabinet resolution | 128*128dots |
|
| Optimal viewing distance | 5m ~ 30m |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supply |
|
|
| Operating voltage | AC220V±10% |
|
| Average power consumption | 1180W/ m2 | 270W/ m2 |
| Maximum power consumption | ≤5 00W/ m2 | ≤800W/ m2 |
| Current | ≤20mA(single LED) |
|
| The specifications of control system |
|
| Computer | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization control |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant current driving |
|
| Refresh rate | ≥400Hz |
|
| Grey scale | RGB each 256 grade, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic switch |
|
| Display mode | 800*600/1024*768 |
|
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
