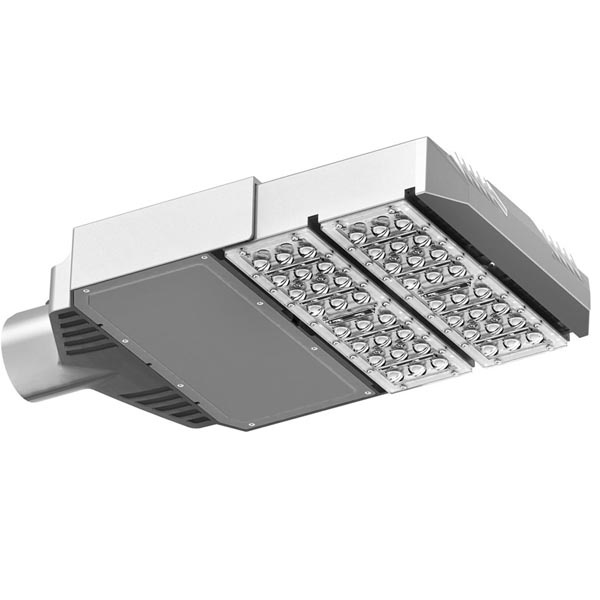

High Power Street LED Lights
Price: |
US $ 280/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
LED Street LightWith strong ability for explosion proof light, Nibbe also has some non-explosion proof light, such as LED Flood Light, LED Hay Bay Light, LED Street Light. Our Flood light has a power range from 10W-400W.

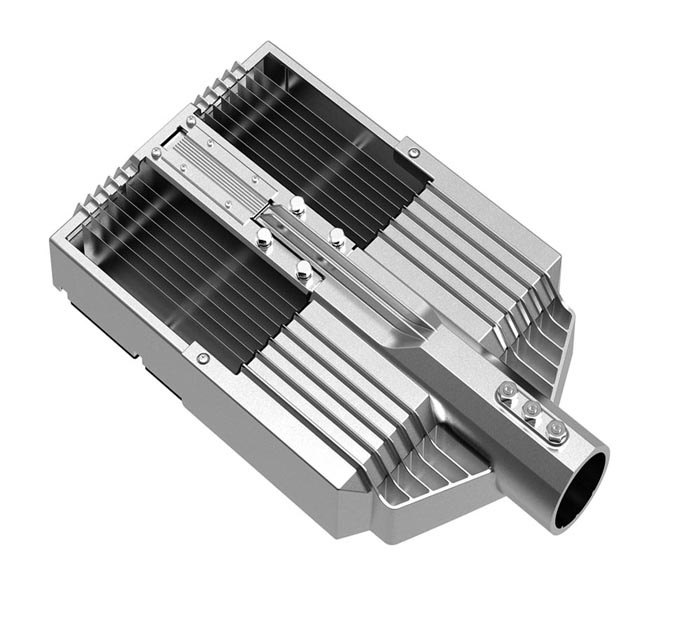

Specification: 1 All aluminum housing for the heat dissipating, greatly extending the life span of lighting source. 2 Free of dust and water, suitable for outdoor. 3 Processed by painting treatment and anodic oxidation, solid and corrosion resisting. 4 Waterproof: IP65

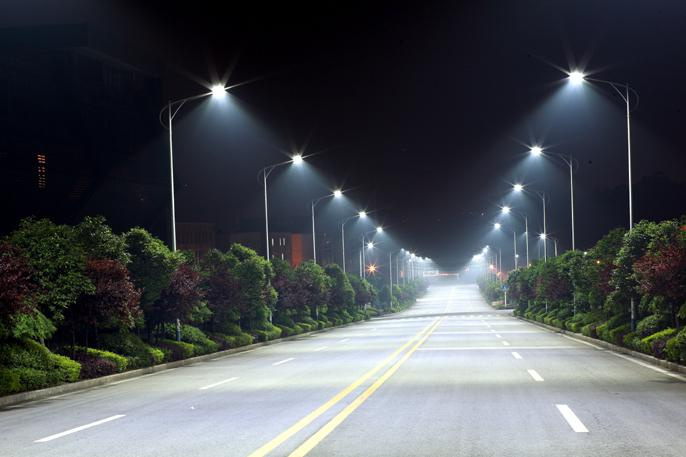

Applied to high way, main road, minor road, city streets, pavement, squares, schools, parks, yards, residential areas, factories, oil fields, oil refineries, power plants, gas stations, and other places where light is needed.
The light can be used at ease in the following places:a. Places where ambient temperature is between -40 and 40b. Places below 2000m highc. Places where relative humidity is less than 90% (at 25)2. Characteristics of Product(1) High efficient LED module is adopted as light source and most advanced electrical technology is applied. This enables low power consumption, efficient light-emitting and instant lighting at the same time. (2) The light has unique structure; simple and compact but ideal for heat diffusion (patented), tight enough for sealing (waterproof and dust prevention of IP65) and tough against shocks and corrosions. This assures long service life of the light. (3) By unique optical design, light irradiation range is wide and illumination intensity is high.(4) There are various mounting options and mounting is very easy. 4. How to mount and use(1) Fix with 60mm pole. (2) After having fixed the light, connect cable of the light with cable from AC power source. 0.5m long triple core cable of 10mm diameter is equipped with the light. There are triple core lines in the cable of the light and markings on the lines, indicating live line (L), neutral line (N) and ground line (E). Connect each line rightly with line in the cable from the AC power source, respectively. (3) Switch on the light. It will shine instantly. 5. Attentions(1) Before mounting and use of the light, read through this Instructions and check whether voltage of power source conforms to that required for the light. If not, it may cause breakdown of the light .(2) Make surface of the light case and lens clean to ensure light transmittance and heat diffusion.(3) Be careful not to have the light case contacted to hard materials in order to avoid scratches.(4) Do not let amateur mount the light.(5) Never neglect to ground the light. It is important to ensure security of power source and protection from lightening surge of the light. (6) Ambient temperature for the light should be in the range from -50 to 40. When it exceeds 40, make forceful ventilation to accelerate heat diffusion.(7) Repairs and maintenancei) Check periodically elasticity of sealing materials. In case they lose elasticity due to aging, replace them with those of exactly same specifications (both size and hardness). Alternative materials may not be used. ii) Conduct periodically insulation resistance test with 500V Megger so that insulation resistance does not get lower than 2MΩ. iii) In maintenance work, take care of the surface of flameproof enclosures. As the surface may not have damages and corrosion, it was coated with rust-proof oil 204-1 in assembly. Do not soil the surface or damage the sealed part. (8) Safety cautionsIn all repairs, maintenance and other works, it is required to cut off power before the works.
Parameter |
Value |
LED Power Consumption |
60W |
Input Voltage |
85V~265V |
Frequency |
50~60Hz |
Luminaire Efficiency ( % ) |
≥90% |
Color Temperature ( K ) |
warm white : 2700~4000K ; pure white : 5000~6500K |
Power factor |
≥0.9 |
Junction Temperature ( TJ )) |
< 65 |
Color Rendering Index ( CRI ) |
Ra 70 |
Light Effect |
80lm/w |
IP Grade |
IP65 |
Working Temperature |
Temperature : -40 ~55 ; Humidity : 10~90%RH(25 ) |
Storage Temperature |
-40 ~60 |
Lifespan |
50000Hs |
Material |
Aluminum Alloy |

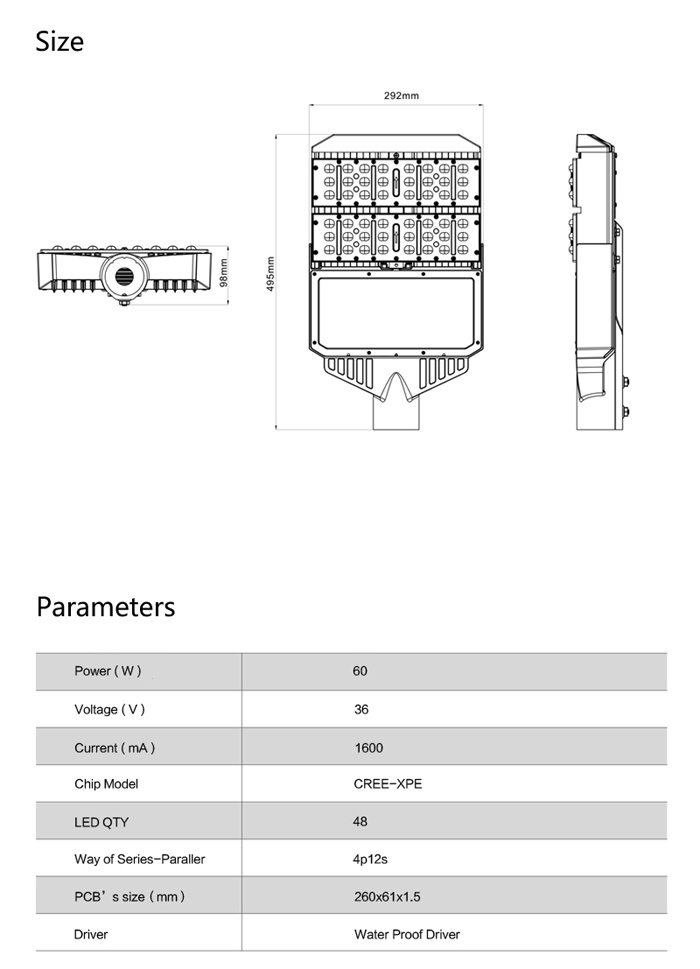

Dimension(mm) |
495(L)×292(W)×98 mm(H) |
Prod Model: |
NB-SLE02-60W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
LED Street Light |
Category: |
High Power LED Street Light |
Lighting Source: |
COB LED |
Power Consumption: |
200W |
Beam Angle: |
120 |
Power Factor: |
0.9 |
Corrosion-Proof Grade: |
Wf1 |
Installation Height: |
10~15m |
Dimension: |
340X400X121mm |
Weight: |
6kg |
Certification: |
VDE |
Color Temperature: |
Pure White |
IP Rating: |
IP65 |
Lamp Body Material: |
Aluminum Alloy |
Power Supply: |
AC |
Application: |
Garden |
Why Not NIBBE?
Pls kindly check some NIBBE facts as following:
1 NIBBE is one of the largest and leading Explosion-proof Lighting factory in China.
2 Most NIBBE products use high quality Bridgelux COB LED, CREE high power LED light source and MOSO/Mean Well driver.
3 NIBBE has the highest standard and its products can meet Ex d II C T6 GB, Ex d I MB, Class 1, Division 2. C1, D1 and I are under development
4 NIBBE has a wide product range and covers all main kinds of explosion proof lights and is ideal for one-stop sourcing.
5 NIBBE has over 10 global patents.
6 NIBBE factory has been certified with ISO 9001: 2008 and ISO 14001: 2014 system
7 NIBBE is the first Chinese factory with main international approvals, including ATEX, cLCus(UL and CSA standards), GOST, CNEX, MA, CE, RoHS, etc. IEC EX is pending.
8 NIBBE products have 3-5 years warranty.
9 NIBBE is the key supplier of big oil enterprises, such as Conoco Phillips, Chevron, SINOPEC, CNPC, CNOOC, etc.
10 NIBBE has rich oversea experience and has exported to over 50 countries for 5 yrs.
11 NIBBE is one hour drive from Hong Kong and very easy to visit.
Our high level cost control makes sure good quality with competitive price. As a trustful partner of many clients around the world, we will make your global merchandising a pleasure and will be the one you count on mostly in the industry.
Why not buy directly from the original OEM/ODM factory with better price, quality reliability and service?
NIBBE-The Ultimate Explosion-proof Lighting Partner for You!
Besides, NIBBE also makes non-explosion proof lighting, such as LED flood light, LED steet light, LED hay bay light.
