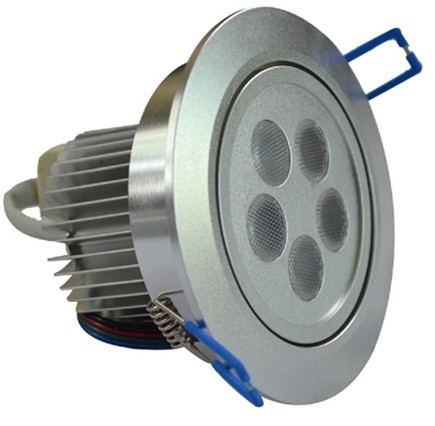

High power rgbw 15w dmx control led ceiling light
Led Ceiling Light, High power led ceiling light, rgbw led ceiling light, rgbw led ceiling light, high power led downlight, led ceiling panel, led high power lights, led high power lights
High powerRGBW LED ceiling light
LED: 3 W High power White LED +3W 3IN1 RGB led or 8W RGBW 4IN1
1) 1x3W RGB: 1PCS 3 IN 1 RGB LED
2) 3x3W RGB: 3PCS 3 IN 1 RGB LED
3)5x3W RGB: 3PCS 3 IN 1 RGB LED +2pcs White LED
4)9X3W RGB: 6PCS 3 IN 1 RGB LED +3pcs White led
5)1X8W RGBW: 1pcs 4in1 RGBW LED R: 1X2W G: 1X2W B: 1X2W W: 1X2W
6)3X8W RGBW: 3pcs 4in1 RGBW LED R: 3X2W G: 3X2W B: 3X2W W: 3X2W
7)5X8W RGBW: 5pcs 4in1 RGBW LED R: 5X2W G: 5X2W B: 5X2W W: 5X2W
8)12X8W RGBW: 12pcs 4in1 RGBW LED R: 12X2W G: 12X2W B: 12X2W W: 12X2W
Material: Aluminum alloy shell
Input voltage: 12-24V DC
RGB/RGBW/RGBWW 27W down light with CE
RGBW LED Downlight series adopts high brightness, low decay, high efficiency 3W high power LED as light source. Aluminum alloy shell. Such as 3 W High power White LED +3W 3IN1 RGB LED, 5x3W RGB: 3PCS 3 IN 1 RGB LED +2PCS White LED, 9X3W RGB: 6PCS 3 IN 1 RGB LED +3PCS White LED. There are different lens available. It has energy-saving, environment protection, long lifespan, anti-shock and anti-vibration features. It's new generation green product. It can fit various temperature differences between indoor and outdoor.
Main Applications
It's widely used for commercial lighting and home lighting places such as, shopping mall, jewelry store, hotel, boutique, amusement hall, showroom etc
Ordinary features
1. HighqualityandhighpowerLEDlightsource;
2. Projectionangleadjustablefrom1-90degree, projectiondistance: 0.5-20m;
3. Standard optical beam angle is 45 degree(45° /60° Available)
4. To generic RGBW LED ribbon controller,
We are supporting the company's controller Five standard DMX channel: Red, green, blue, strobe, dimming the total, general brightness and general dimming, support DMX512 console
5.256gradebrightness, R, G, Bcolorcanrealizeabout16, 770, 000coloroutput;
6. Standard 3-pins male and female DMX signal connector, one input and one output
| Part No. | 5x3W-RGBW-DC | 9x3W-RGBW-DC | 5x3W-RGB-DC | 3x3W-RGB-DC | 3x8W-RGBW-DC | 1x3W-RGB-DC |
| Color | RGB, RGB 3in1+ white or warm white, rgbw(4in1) |
| LED | 3R 3G 3B 2White X1W | 6R 6G 6B X1W2White X3W | 5R 5G 5B X1W | 3R 3G 3BX1W | 3R 3G 3B 3WX2W | 1R 1G 1B X1W |
| Emitting angle | 15/30/45/60/90/120 |
| Voltage | 24V dc |
| electric current | 24V 0.625A | 24V 1.125A | 24V 0.625A | 24V 0.375A | 24V 1 A | 24V 0.125A |
| Maximum power | 18W | 27W | 18W | 11W | 24W | 3.6W |
| LED Flux | R:120LM G:210LM B:75LM W:360lm | R:240LM G:410LM B:150LM W:540lm | R:200LM G:350LM B:125LM | R:120LM G:210LM B:75LM | R:180LM G:300LM B:120LM W:420lm | R:400LM G:70LM B:25LM |
| LED branch current | RGB: 350MA White:600MA | RGB: 350MA White:600MA | RGB: 350MA | RGB: 350MA | RGB: 450MA White:450MA | RGB: 350MA |
| Control Manner | DMX512 Automatic on-line Built-in program Digital display |
| Use of the environment | -2 0º-45 |
| Waterproof rating | IP20/IP44 |
