Home LED Light Products High Power Industrial LED High Bay Light Fixtures From China

High Power Industrial LED High Bay Light Fixtures From China

High Power Industrial LED High Bay Light Fixtures From China
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

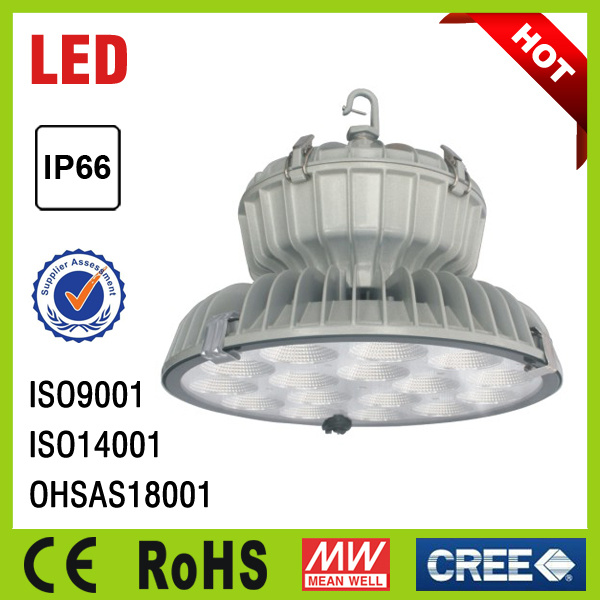

                                      high power industrial led high bay light fixtures from china


Application
LED high bay light is suitable for use in power station, petrochemical industry,metallurgy and other indoor and outdoor places.

Characteristics
1. Especially designed for high bay, tall roof, It efficiently utilize the light to 95%.Glare free, have a good performance of illuminance uniformity.
2. Floodlight or spotlight is both available according to mounting height. (8-15meters: floodlight, >15meters: spotlight)
3. It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
4. The light source is separated from the electrical appliance. This split style with the high efficiency radiator have solved the heating-up problem so that ensure the 100,000 hours LED lifespan.
5. Equipped with world top ranking brand, Taiwan Meanwell electrical appliance with power factor 0.98, make the lamp's performance more stable and efficient.
6. The locking device on the bracket will keep the lamp from shift or trembling during harsh vibration.
7. The shell adopts high-tech surface spraying technology, abrasion resistance and corruption, waterproof, dustproof, suitable to be used in all kinds of environments
8. Quick opening lid, easy to maintain.

Main specification

Input Voltage

90-305VAC / 127-431VDC

Output Voltage

54VDC

Frequency

50Hz / 60Hz

Ingress Protection

IP66

Anti Corrosion Grade

WF2

Insulation Grade

I

Space Height Ratio

1.8(Spotlight),
3 (Floodlight)

Thread

G3/4''

Leading-in cable diameter

Φ8mm -Φ14mm

Dimension

Φ380x268.5mm

Net Weight

7.5Kg


Ordering reference

Ordering
Reference

Light Source

Rated
wattage
(W)

Light
output
(lm)

Equivalent to

MH

LVD

HP

ZY8501-L60

LED

60

8,194

150W

135W

175W

ZY8501-L80

LED

80

10,016

175-250W

165W

250W

ZY8501-L100

LED

100

11,568

250W

200W

250-400W

ZY8501-L120

LED

120

13,310

250-400W

250W

400W
Prod Model: ZY8501
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power: 60W 80W 100W 120W
Frequency: 47-63Hz
Net Weight: 7.5kg
Lamp Luminous Flux(Lm): 13310
Color Temperature: Cool White
Lamp Body Material: Aluminum Alloy
IP Rating: IP66
Certification: RoHS
Color: Sliver
Usage: Industrial
Lifespan: 100000
Zhejiang Tormin Electrical Co., Ltd. is a high-tech civilian enterprise that specializes in r & d, manufacture and sales of industrial illumination lamps. Its products are widely used in the fields of electric power, coal mine, petrol, chemical, metallurgy, railway, large airport, fire-fighting, military, flood prevention, rescue work and disaster relief.

In light of the world wide advocating of low carbon economy, zhejiang tormin electrical Co., Ltd. Will carry on the mission of low-carbon illumination, energy conservation & emission reduction, and strive to create a first class brand for industrial lighting in China with the operation guidelines of energy conservation, environmental protection, pragmaticness and innovation. We are always committed to the r & d of a new generation of low energy consumption illumination products and the supply of green products for customers. In an era of low carbon illumination, the company deems the energy-favored illumination as a major project, makes use of the latest technology through independent r & d and technical exchanges and cooperations with counterparts from both at home and abroad, and develops a series of high efficiency products with the combination of efficient illumination sources and electric appliances, whose energy saving effects have reached the internationally advanced level, thus making due contributions for the energy conservation and emission reduction.

The company boasts powerful r & d and manufacturing capabilities, being one of the largest industrial illumination r & d and production bases in China. It is awarded as the technology-oriented small and medium-sized enterprise in zhejiang province, patent demonstration enterprise in wenzhou city, and key patent protection enterprise, etc. At the same time, tongming has obtained the certification of ISO9001: 2008 international quality management system, the national coal mine safety, the state luminaire quality supervision and inspection center, the state fire-fighting equipments quality supervision and inspection center, CE&RoHS, ATEX, IECex and other authorities.

The company enjoys very rich experiences in the planning and implementation of energy conservation projects in various plants, and has developed a number of energy-friendly illumination solutions geared to various industries in China. It provides a whole set of technical services for enterprises in the areas of electric power, metallurgy, petrochemical and coal mine, from the support of energy conservation plans, product selection, project installation, to after-sales services.

With the determination of contributing to the nation and shaping a centennial brand, and upholding the tenet of win-win among customers, employees and the company, zhejiang tongming electric appliance Co., Ltd is endeavoring to create an excellent platform for more and more elites who are to join tongming, and commonly establish a first class illumination enterprise.
