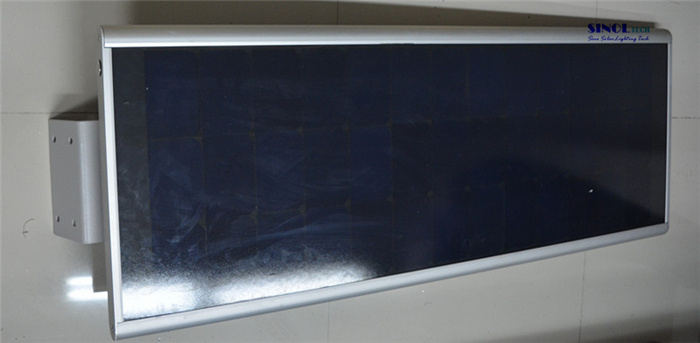

High power 70W led street light/integrated solar street light
Item No. SNSTY-270
Size 1280*400*50mm
Solar panel 90W, 1200*400mm(SUNPOWER)
LED brand 70W Bridgelux
Color temperature 6000-6500K
Lumen(LM) 7100-7300lm
Lithium Battery 50AH
Packing size/weight 1300*500*220mm/24KG
Visual angle 120°
Install height 9-12m
Working temperature: -30~+60C
LED service life: 50000 hrs
Lithium battery and controller service life: Over 5 years
Warranty: 2 years
NEW! All in one solar garden/street light with higher PV power
1. For same LED power, solar panel power and battery capacity is higher, increasing both charging time and discharging time.
2. Switch material changed to stainless steel, other than previous plastic type, safer and longer service life.
3. The inter contact terminal among all components is changed to waterproof type, increase the waterproof feature, more delicate in workmanship, easier to ship and mount.
Solar Panel: High efficiency monocrystal panel/sunpower
LED Lamp: 8W-80W high lumens, chip from USA
Battery Type: High capacity lithium battery
Controller: Intelligent lighting controller R&D
Work Temp: -30C~+60C
All in one intelligent design.
Long lighting time up to 36-48 hours.
Energy saving LED garden/street lights.
Different motion sensor with timer.
Pole optional, easy to install
Our products & Services:
We offer customized solution to meet clients' different project and budget requirement:
1. Customized shell material:
High quality Aluminum alloy frame, light weight, anti-corrosion and visual good looking;
Galvanized iron frame, lower cost to reduce total budget, 3 -years corrosion resistance guarantee. Accept customized shell color.
2. Customized working method
Motion sensor, LED full power lighting when there is people/vehicle passing-by, LED 1/3 power
Lighting when there is no people/vehicle passing. Induction time: 60s, sensing distance: 9-10m.
Timing control: Customize time period for different working power.
Recommended"3+4+5", first 3 hrs full power lighting, second 4 hrs 1/2 power lighting, last 5 hrs 1/3 power lighting.
3. Customized brand of components:
Solar panel: USA SUNPOWER brand solar panel(19-23% efficiency) or normal monocrystalline solar panel(17-18% efficiency).
LED lamp: High quality USA bridgelux LED chip or TAIWAN EPISTAR LED chip
Customzied color temperature (3500-7000K) upon request.
Lithium battery with 5 years life time guarantee, accept customized capacity to increase lighting time or reduce product cost.
4. Accept OEM logo printing.
Main feature:
1)Integrity design, no cabling, easy to install, various mounting methods (pole or fence)
Pole material could be iron, wood, bamboo, plastic etc, low construction cost.
2)Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.
3)Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years, excellent high temperature performance, long life time can ensure the service life of wholeproduct.
4)Waterproof structure, safe and reliable.
5)Adopting aluminum alloy as main body material, with excellent rust-proof and corrosion-proof function.
6)With segmented power control function, during late half night, brightness reduce in order to save energy and increase practicality.
Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.
| Solar Panel | Max Power | 18V90W(High efficiency monocrystalline silicon) |
| Life time | 25 years |
| Battery | Type | Lithium battery 50AH |
| Life time | 5 years |
| LED Lamp | Max power | 12V70W |
| (With sensor) | Led chip brand | Bridgelux |
| Lumen(LM) | 7100-7300LM |
| Life time | 50000hours |
| Viewing angle | 120 degree |
| Charge time | By sun | 10 hours |
| Discharge time | Full power | 9 hours |
| Half power | 18 hours |
| Working temp. | range(C) | -20C~+60C |
| Color temp. | range(k) | 6000-6500k |
| Mounting height | range(m) | 9-12m |
| Space between light | range(m) | 20-25m |
| Main lamp materials |
| Aluminum alloy |
| Certificate |
| CE/ROHS/IP65 |
| Warranty period |
| 2 years |
"SINOLTECH" is the solar energy brand name of Jinan Oufu Technology Co., Ltd, focusing on overseas marketing of high quality and advanced solar energy products.
Our company was firstly established in year 2005, in order to respond and conform to the trend of global environmental protection "low carbon" and "green energy", Oufu starts an independent department "SINOLTECH HOLDING GROUP Ltd" in year 2008, specializing in research, development, innovation, production and export for solar lighting and other solar application products.
Our main products include integrated solar street light, thin film flexible solar panel, solar garden light, solar lawn light, solar landscape light, solar fan, portable solar system, solar chargers etc.
SINOLTECH obtains 5 products patents, with more than 2 production and assembly base, total area more than 4600 square meters, employees over 200. Until now, SINOLTECH already passed system certification of ISO9001: 2000, TS16949, SGS ISO14001, OHSAS 18001.
All products have passed CE, RoHS and IP65 certificates. Production capacity for all in one solar street light is 5000 units
Per month, for flexible solar panel is 100KW per month, SINOLTECH have established close cooperation with a number of domestic and foreign universities and national research institutions.
Our main exporting markets include: USA, Germany, Russia, Italy, France, Spain, Australia, New Zealand, Isreal, UAE, Jamaica, Chile, Japan, Thailand, Philippines, Singapore, Malaysia, Pakistan etc more than 60 countries.
SINOLTELCH always put the needs of clients in the first place, solving all problems in the first time.
Integrity, professional, efficient, friendly and mutual benefit is always our company tenet, SINOLTECH expects to cooperate and serve clients worldwide.
