Home LED Light Products High Power 120W LED Street Light with 5 Years Warranty

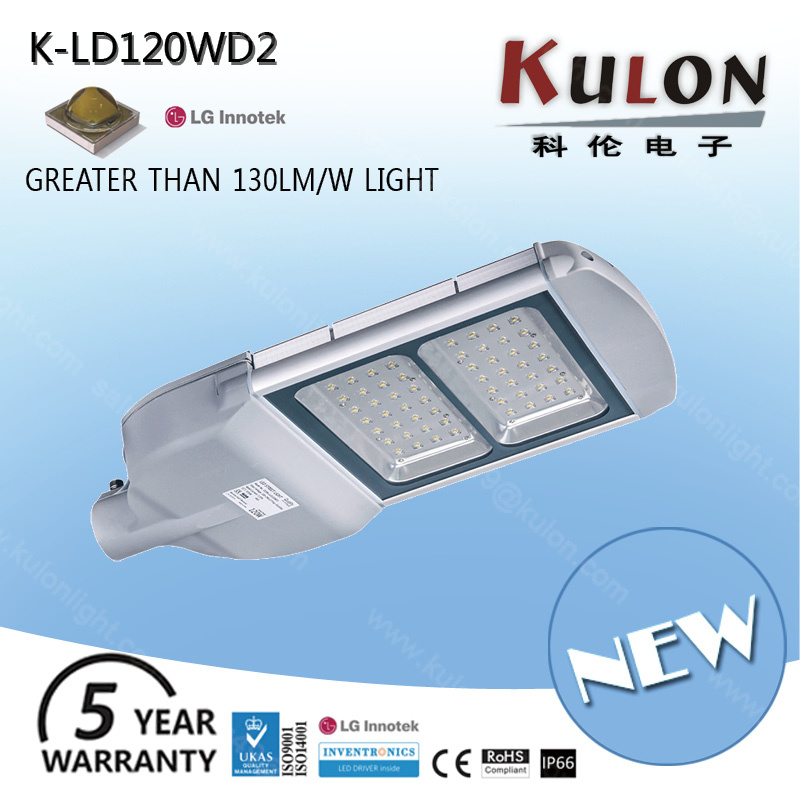

High Power 120W LED Street Light with 5 Years Warranty

High Power 120W LED Street Light with 5 Years Warranty
Price: US $ 146.25-158.80/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
High Power 120W LED Street Light With 5 years warranty

LED luminous source:
Greater than 130lm/w high efficiency illumination grade LED light source.

INVENTRONICS LED Driver:
High-end programmable EBD Series LED Driver, integrate dimming function and 6KV / 10KV surge protection. Provide excellent performance and lifespan.

Optimal heat radiation:
Excellent thermal management system and heat radiation enable the LEDS consistently work cooler, providing significant boosts to lifetime and efficacy.

Product specifications:
Model NameK-LD120WD2
LED Power120W
Operating Voltage200-240V AC,50/60Hz
Optimal Operating Temp-40 ºC to +50 ºC
Operating Humidity10% to 90%
Power Fact(PF)> 0.95
Power Supply Efficiency> 90%
LED output12600LM
LED Luminous SourceUp to 130 LM/W
CRIRa >= 75
CCT3000k 4000k 5000k 5700k
IP RatingIP66
Guarantee5 years
Lifetime100000 hours
HousingDie-casting Aluminum
Heat RadiatorAnodized Aluminum
FaceTempered Glass
Fixture Info624 x326 x109 mm
Fixture Weight624 x326 x109 mm, 8.5 kg
Total Harmonic Distortion< 20%
Packing TypeCarton packaging;1unit /ctn
Packing Info680 x375 x155 mm, 9.5 kg


Product details:
1: Greater than 130lm/w high efficiency illumination grade LED light source.
2: High-end programmable EBD Series LED Driver, integrate dimming function and 6KV / 10KV surge protection. Provide excellent performance and lifespan.
3: Excellent thermal management system and heat radiation enable the LEDS consistently work cooler, providing significant boosts to lifetime and efficacy.
4: Over then 100,000 hours operation life with 5 Years Warranty.
5: Available for 60°, 90° and 110° beam angle.
6: IK10&IP66 (testing reports available)
7: 10KV surge protection or motion sensor available.
8: Adjustable mounting bracket or suspension wire mounted hang installation method available
9: UL, DLC, RoHS, CE, GS, CB certificated is pending.
10:IES file or Dialux simulation for lighting solution is available.

Applications:
KULON-LD-D2 series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high brightness general illumination during the night time.

Our services:
  Prompt lead time, professional Dialux lighting simulation, perfect after-sales service are our priority,
hope to be your reliable led lighting solution partner.
1. What we do is making you satisfied. Our goal is providing you with right products and come up with correct solutions.
2. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
Decision for the shipping terms will be made according to your requirements.
3. Delivery time is guaranteed. 2-3 working days for sample order,5-7 working days for regular order(quantity< 100pcs),10-15 working days for mass order(101-500pcs), order >500pcs pls contact us to confirm.
4. Price is negotiable if you have large quantity demand.
5. Package is customized.Usually we use films,foam boxes,cartons and wooden pallet.
Warranty details:
Hangzhou Kulon Electronics Co., Ltd. ("Kulon") warrants this kulon branded hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase.
Kulon provides free repair or replacement within warranty period. KULON shall charge against defeats by abnormal storage, useage, connection or change the structure or any commponents of the product.
(Professional Warranty file with stamp and signature will be sent to you if necessary).

FAQ:
How to choose a right light for project?
1. According to Average or minum lux demands on floor to choose the right watt product
2. Depends on project drawing to make a Dialux simulation to confirm the beam angle and light installation layout
3. Choose the right CCT(3000/4000/5000 or 5700K) for different application place.
4. Confirm the most suitable install method. (pendant mounting, direct mounting or suspended mounting available)

How to achieve intelligent dimming function ?
Our led driver use Mean Well HLG type or Inventronics smart could support all kinds of dimmer:
0-10VDC, Resistance, PWM, Time dimming or DALI
You just need to connect a dimmer to achieve this function.

How to achieve motion sense function?
We could build in a smart motion sensor to ahieve this function such as:
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step
dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to
install and cost-effective.
Prod Model: K-LD120WD2
Product Name: 120W LED Street Light
Fixture Info.: 624 X326 X109 mm, 8.5 Kg
Packing Info.: 680 X375 X155 mm, 9.5 Kg
Lens: Tempered Glass
Dimming: 0-5V,0-15V,PWM,Timer
Warranty: 5 Years
LED Luminous Source: up to 130 Lm/W
Housing: Die-Casting Aluminum
Heat Radiator: Anodized Aluminum
CRI: 75
Lamp Body Material: Aluminum Alloy
Application: Street/Road
IP Rating: IP66
Certification: UL
With Light Source: With Light Source
Power Supply: Inventronics LED Driver
Color Temperature: 3000k 4000k 5000k 5700k
Power: 120W
Input Voltage: 200-240V 277V AC,50/60Hz
LED Chips Brand: LG Innotek
