Solar LED garden light
Solar garden light
Solar garden lamp
Solar garden lighting is consist of solar panel, battery, controller, lamp source and pole etc.
The solar souce can be choosed as your demand, such as LED, HFED, LPS, HID, LMH, energy saving lamp etc.
Application
The road, City Road, Pedestrian Lane, Squares, Schools, Parks, Gardens, Residential areas and other places of outdoor lighting.
1. LED
LED lamp shade is a transparent shade and made of polycarbonate plastic injection molding material, high strength, good light; Using LED as the light source, and LED is light emitting diodes, has the characteristics of high efficiency and long life. At present, the lamp is shaping up as a mainstream lighting products of new generation.
Power LED(80W)
Woking Voltage DC24V
General luminous: 8000lm
LED Luminous Efficiency: 100lm/W
Center illuminance: 20lx, Ra>80,
Color temperature: 2700-7000,
Protection Grade: IP65,
Working life >50000h, It can woke more than 10 years in accordance with 12 hours a day.
2. Battery
GEL battery
Advantage: The small self -discharge rate, the better deep discharge, Top charge acceptance, large capacity, strong start in low, the good shock resistant and Anti-temperature charge Production
3. Controller
PHOCOS CIS controller, waterproof, IP68
4. Solar panel
1. High 15-18% transfer efficiency of solar panel
2. Obtained CE TUV and so on, we keep authentication high consistent with standard testing in actual production.
3.5 years' warranty, no less than 90% of standard output power within 10 years, 80% of standard output power within 25 years.
5. Street light pole
Best steel Q235, 3-14m height, hot dipped galvanization and spraying powder.

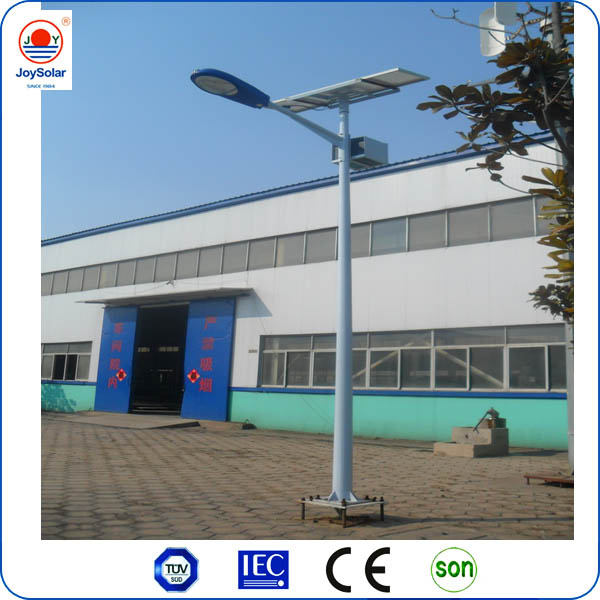

solar led street light JYSL-110080 |
Name |
Specification |
Quantity |
Parameter |
Solar panel |
280W/24V |
1 piece |
Polycrystalline, 156x156mm, 72 piece.
Vm: 36.145V,Im: 7.775A,Voc: 44.949V, Isc: 8.218A
Size:1956x992x50mm with 90cm wires,MC4 Connector. and Weight:27KG
The product have passed TUV, IEC, MCS etc certificate. |
Light source |
LED80W/24V |
1 piece |
Single Integrated Power LED(80W),Working Voltage DC24V,General luminous:8000lm, LED Luminous Efficiency :100lm/W,Center illuminance:20lx,Ra>80,Color temperature:2700-7000,Protection Grade :IP65,Working life >50000, It can work more than 10 years in accordance with 12 hours a day.
Lamp shade is Die-casting molded with aluminum alloy,and its face is UV-resistant and corrosion resistant .
No bad glare; No Strobe; Start without delay .Low maintenance cost .
Production Size :720x320x172mm ,Weight :9.56KG
Packing Size:775x345x258mm,Weight :12.2KG |
Controller |
20A |
1 piece |
PHOCOS CIS Series,12V/24VAutomatic identification , light control and time control,Protection Grade IP68 |
Battery |
12V/150AH |
2 piece |
Gel Battery that dedicated to solar energy. It can use recurrent more than 400 times in 80% discharge cases For the solar energy street lamp that in simple circulatory system. And its advantage is that :the small self -discharge rate ,the better deep discharge, Top charge acceptance, large capacity,strong start in low ,the good shock resistant and Anti-temperature charge Production
Size: 483x170x240mm,Weight :44.5KG
Packing Size :506x193x290mm,Weight :46.4KG
The two Battery is used in series in this collocation |
Pole and other steel fitting |
10M |
Set |
Best steel Q235 or Q345;hot dip galvanized and paint coated .
iron plate is rolled into type for one time .
Flange plate :400x400x20mm
Solar panel bracket and Angle iron,Flat iron. Square tube is assembled by bolt ,any section is made with mold. With high efficiency and precision , standardized parts can replace each other and the same time increase the packing quantity and reduce transport cost .
Battery body are welded after 2mm plate stamping molding
Lamp arm 60x3mm Welded tube and iron plate welding |
Wires harness |
-- |
1 piece |
With the special connector ,standardization,substitutability ,high installing efficiency,saving cost .
Wire harness can be designed according to different lamp type . |
others |
Baseplate 20 steel rod ,standard component and so on |
Conditions |
Voltage of system: 24V,working time: 10 hours ,work temperature -20degree-50degree |
Packing Quantity |
70set/40HQ |
